2730450000 VPU AC II US 1 120/50 VPU Series Low Voltage Surge Protection, Electrical Ratings: 120 VAC, 50/60 Hz, 1 Poles, 200 kA Short Circuit, 1 Phase
| Branch Name | Available |
|---|
Weidmuller, 2730450000, Surge Protection, Low Voltage, Series: VPU Series, 120 VAC Electrical Rating, 50/60 Hz Frequency, 1 Pole, 200 kA Short Circuit, 20 to 50 kA Nominal Discharge, Modes of Protection: L-PE, <=25 ns Response, 1 ph, Class: II, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity, IP20 Enclosure, DIN Rail Mounting, Screw Terminal, Black/Orange, 96.3 mm H x 18 mm W x 68 mm D Dimensions
| Class | : | II |
| Color | : | Black/Orange |
| Dimensions | : | 96.3 mm H x 18 mm W x 68 mm D |
| Enclosure Type | : | IP20 |
| Environmental Conditions | : | -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity |

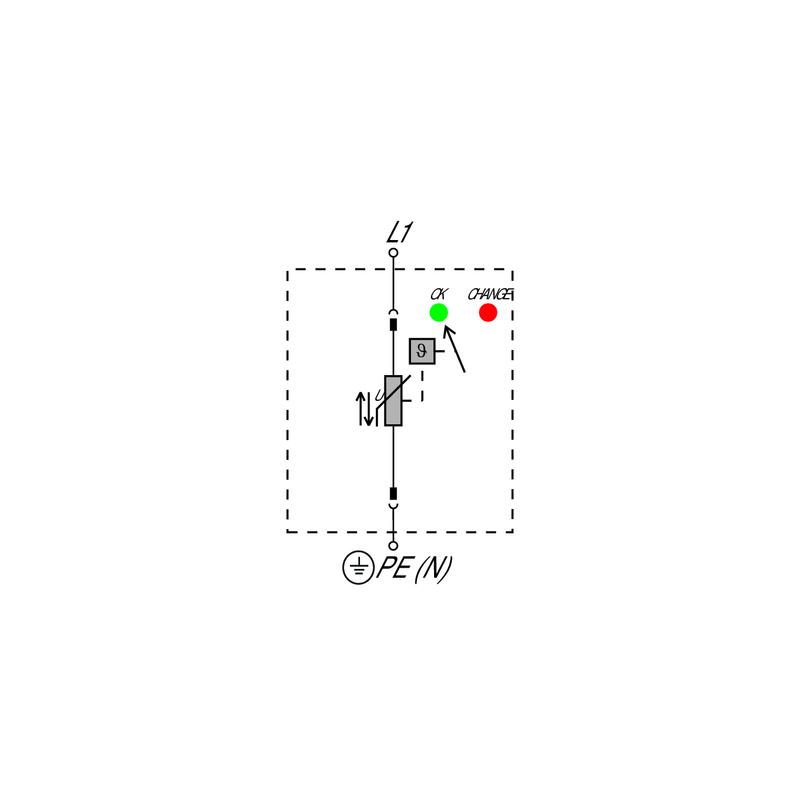

| Modes of Protection | : | L-PE |
| Mounting Type | : | DIN Rail |
| Nominal Discharge Current | : | 20 to 50 kA |
| Response Time | : | <=25 ns |
| Series | : | VPU Series |
| Terminal Type | : | Screw |
| Type | : | Low Voltage |
| Electrical Ratings | : | 120 VAC |
| Frequency Rating | : | 50/60 Hz |
| Number of Poles | : | 1 |
| Short Circuit Current Rating | : | 200 kA |
| Phase | : | 1 |
