Non Stock

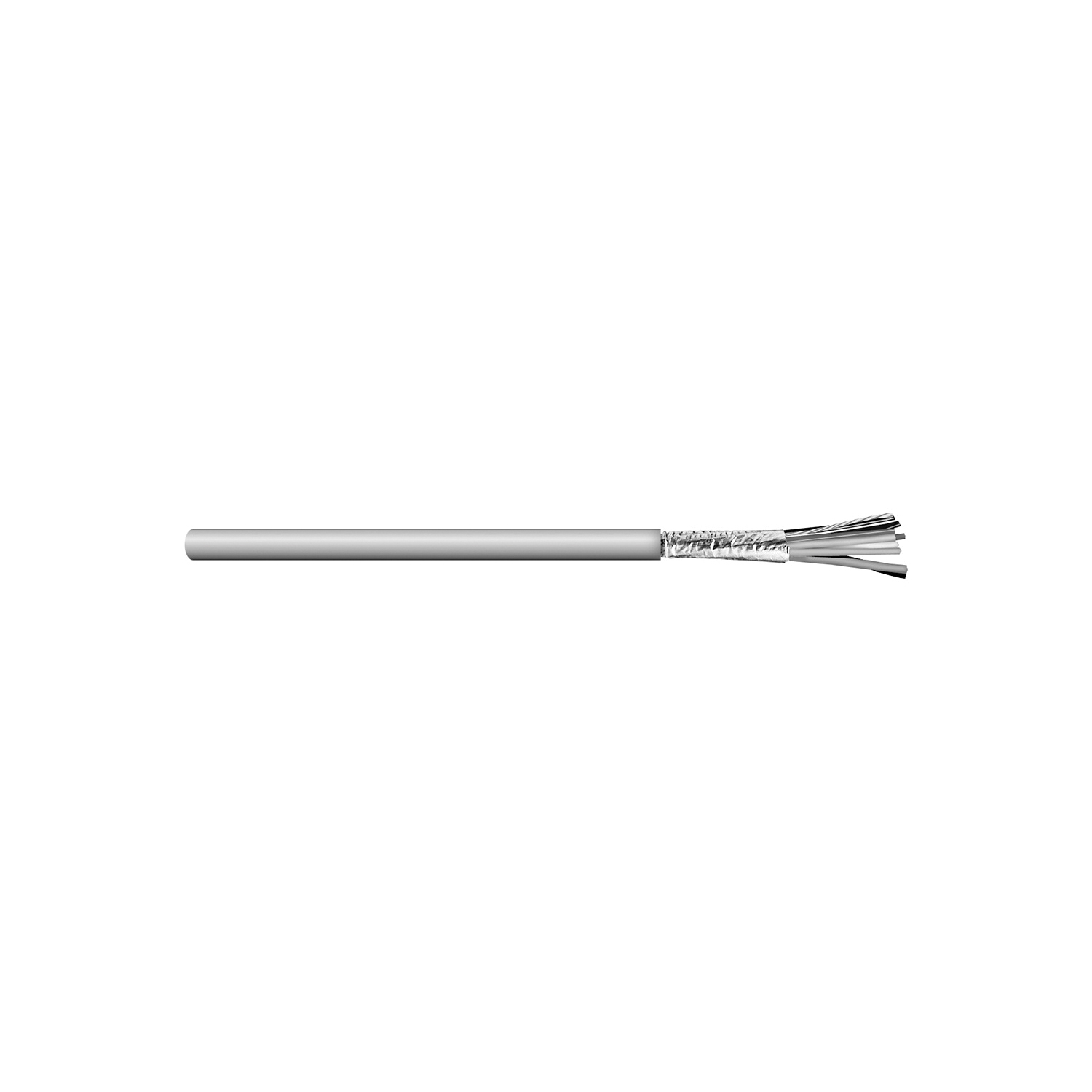

C0783A.41.10 Type CM/CMR Foil Shielded Multi-Conductor Computer Cable, Carol®, Reel Packaging, 300 VAC, (6) 20 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft L
| Branch Name | Available |
|---|
Sold as: Pack of REEL
General Cable® complete line of Carol® brand paired and unpaired, shielded computer cables are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications. We also offer a variety of put-ups for computer cables to meet your individual requirements. Carol® brand computer cables are manufactured to meet the latest UL, CSA, NEC and RoHS requirements and approvals.
General Cable® Carol® Computer Cable, Type CM/CMR Foil Shielded Multi-Conductor, Reel Packaging, 300 VAC, 6 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 20 AWG Conductor, 0.276 in OD, 1000 ft Length, 7/28 Strands, 6.3/11 Ohm Resistance, PVC/S-R PVC Insulation, PVC Jacket, Gray Jacket, -20 to 80 deg C
| Insulation Material | : | PVC/S-R PVC |
| Jacket Color | : | Gray |
| Jacket Material | : | PVC |
| Outside Diameter | : | 0.276 in |
| Resistance | : | 6.3/11 Ohm |
| Strands | : | 7/28 |
| Temperature Rating | : | -20 to 80 deg C |
| Type | : | Type CM/CMR Foil Shielded Multi-Conductor |
| Voltage Rating | : | 300 VAC |
| Number of Conductors | : | 6 |
| Conductor Type | : | Fully Annealed Stranded Tinned Copper |
| Conductor Size | : | 20 AWG |
| Length | : | 1000 ft |
