AC6S-17B Type AC6S Standard Wall Flexible Conduit, ANA-QUICK®, NW17 Trade, 0.654 in ID x 0.835 in OD, 50 ft L, Nylon 6
| Branch Name | Available |
|---|

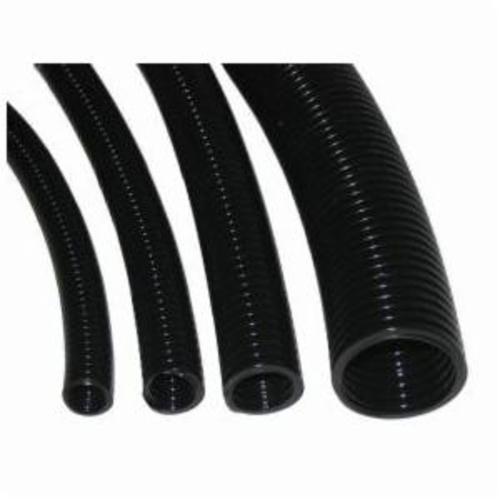

AC6S conduits are corrugated polyamide conduits specially designed for machine tool applications that require protection for cables. Type AC6L is a thin wall tubing which is very flexible and has a tight bend radius. Type AC6S is a standard wall conduit, which is UL recognized.
ANA-QUICK® Flexible Conduit, Type AC6S Standard Wall, Series: AC6S, NW17, 0.654 in Inside Dia, 0.835 in Outside Dia, 50 ft Length, 1.772 in Bend Radius, Constant Flexibility, -40 to 120 deg C, Nylon 6, Black
| Bend Radius | : | 1.772 in |
| Color | : | Black |
| Flexibility | : | Constant |
| Series | : | AC6S |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Type AC6S Standard Wall |
| Trade Size | : | NW17 |
| Inside Diameter | : | 0.654 in |
| Outside Diameter | : | 0.835 in |
| Length | : | 50 ft |
| Material | : | Nylon 6 |
