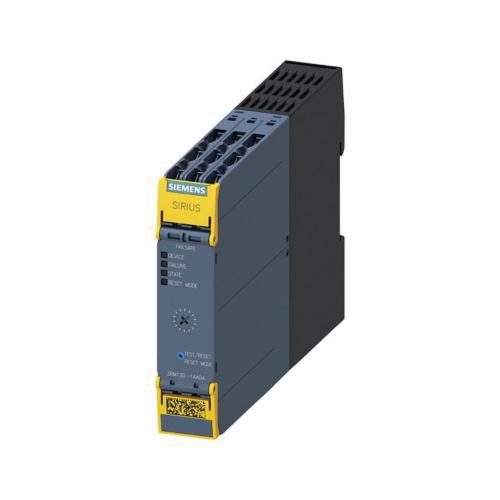

3RM13072AA04 Motor Starter, SIRIUS, 24 VDC V Coil, Reversing Action, 3 Poles, IP20 Enclosure
| Branch Name | Available |
|---|
Sold as: Pack of EACH
SIRIUS Motor Starter, Series: 3RM1, 500 VAC, 7 A, 50/60 Hz Frequency, 0.55 to 3 kW Wattage, 3 hp Motor, 24 VDC Coil, 3 Pole, 90 to 120 ms On/40 to 55 ms Off Timing, 3 ph, Push-In Connection, Reversing Action, Solid-State Overload Relay, 1CO Auxiliary, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, 100 mm H x 22.5 mm W x 141.6 mm D Dimensions
| Amperage Rating | : | 7 A |
| Auxiliary Contact Rating | : | 1CO |
| Connection Type | : | Push-In |

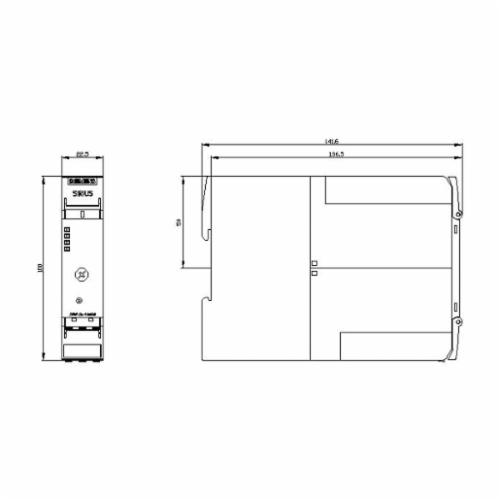

| Dimensions | : | 100 mm H x 22.5 mm W x 141.6 mm D |
| Frequency Rating | : | 50/60 Hz |
| Motor Power | : | 3 hp |
| Operating Cycles | : | 30000000 Cycles |
| Operating Temperature | : | -25 to 60 deg C |
| Overload Relay | : | Solid-State |
| Phase | : | 3 |
| Series | : | 3RM1 |
| Timing | : | 90 to 120 ms On/40 to 55 ms Off |
| Voltage Rating | : | 500 VAC |
| Wattage | : | 0.55 to 3 kW |
| Coil Voltage | : | 24 VDC |
| Action | : | Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | IP20 |
