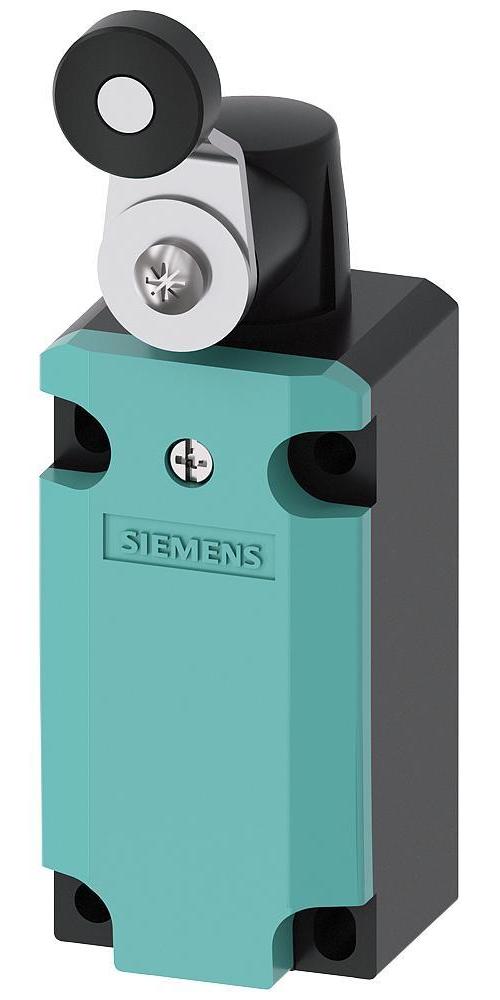

3SE51120LH111AJ0 Mechanical Position Limit Switch, 24/125/240/400 VAC, 24/125/250/400 VDC, 0.12/0.27/0.55/3/4/6 A, Twist Lever Actuator, 1NO-2NC Contact
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Siemens Limit Switch, Mechanical Position, Series: 3SE5, 24/125/240/400 VAC, 24/125/250/400 VDC, 0.12/0.27/0.55/3/4/6 A, 50/60 Hz, 1NO-2NC, Quick, Twist Lever, Screw, IP66/IP67, Threaded Mount, 40.5 mm W x 37.3 mm D, 100000/15000000 Cycles Operating Cycles, -40 to 85 deg C Operating, Metal, Cathodic Immersion Coated, Environmental Conditions: -40 to 90 deg C Storage Temperature
| Action | : | Quick |
| Connection Type | : | Screw |
| Enclosure Type | : | IP66/IP67 |
| Environmental Conditions | : | -40 to 90 deg C Storage Temperature |
| Finish | : | Cathodic Immersion Coated |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Metal |
| Mounting Type | : | Threaded |
| Operating Cycles | : | 100000/15000000 Cycles |
| Operating Temperature | : | -40 to 85 deg C |
| Series | : | 3SE5 |
| Size | : | 40.5 mm W x 37.3 mm D |
| Type | : | Mechanical Position |
| Voltage Rating | : | 24/125/240/400 VAC, 24/125/250/400 VDC |
| Amperage Rating | : | 0.12/0.27/0.55/3/4/6 A |
| Actuator | : | Twist Lever |
| Contact Configuration | : | 1NO-2NC |
