Intermatic® EK4027S EK4000 Series, 347 VAC, 1000 W Tungsten, 2 A Ballast, Fixed Mounting, Polycarbonate
| Branch Name | Available |
|---|
Sold as: Pack of EACH

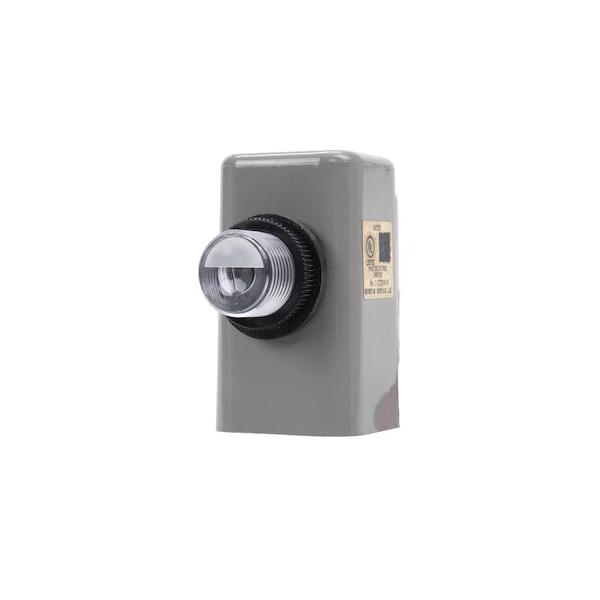

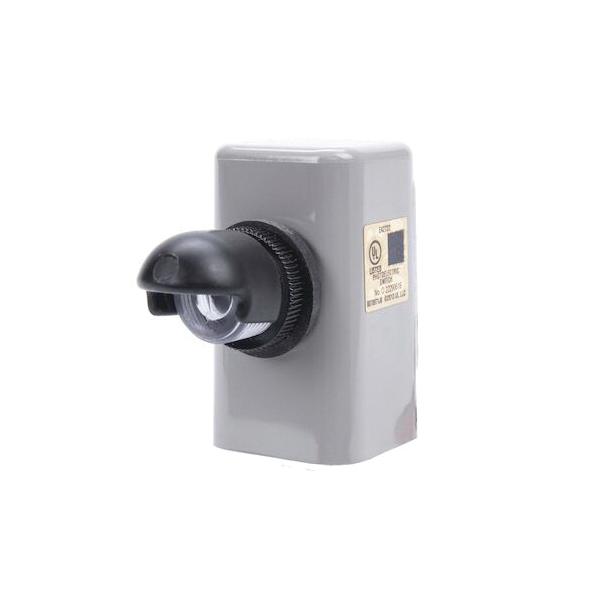

NightFox™ Electronic Photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long life expectations. Mounts internally to an enclosure with a 3/8 in diameter window for light sensing. Comes with 9 in wire leads.
Intermatic®, EK4027S, Button, Series: EK4000 Series, LED Fixture, 347 VAC, 5000 A, 50/60 Hz Frequency, 1000 W Tungsten, 2 A Ballast, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC Turn ON/4.5 FC Turn OFF Sensitivity, Environmental Conditions: -40 to 158 deg F, 10000 hr Operating Cycles, Fixed Mounting, Polycarbonate, Gray, 1-5/16 in W x 1-1/4 in D x 2-1/4 in H Dimensions
| Amperage Rating | : | 5000 A |
| Color | : | Gray |
| Dimensions | : | 1-5/16 in W x 1-1/4 in D x 2-1/4 in H |
| Environmental Conditions | : | -40 to 158 deg F |
| Fixture Type | : | LED |
| Frequency Rating | : | 50/60 Hz |
| Operating Cycles | : | 10000 hr |
| Sensitivity | : | 1.5 FC Turn ON/4.5 FC Turn OFF |
| Sensor Type | : | Solid State Photo/Silicon IR Filtered |
| Series | : | EK4000 Series |
| Timing Range | : | 2 to 5 s |
| Type | : | Button |
| Wire Size | : | 18 AWG |
| Voltage Rating | : | 347 VAC |
| Tungsten Rating | : | 1000 W |
| Ballast Load | : | 2 A |
| Mounting Type | : | Fixed |
| Material | : | Polycarbonate |
