Non Stock

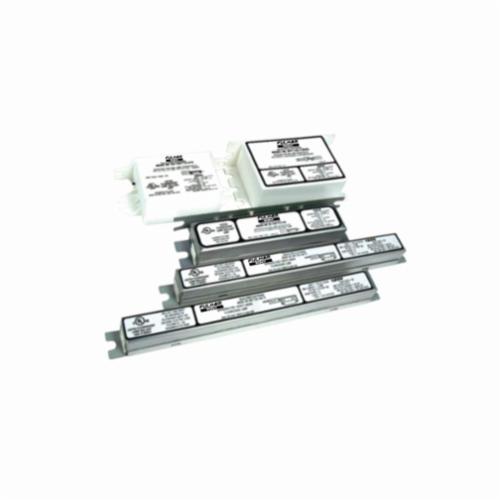

NPY-120-232-LT8 High Frequency Electronic Fluorescent Ballast, PONY™, F32T8 Lamp, 32 W Lamp, 120 VAC, Rapid, 1.07 Ballast Factor
| Branch Name | Available |
|---|
Sold as: Pack of CASE
Pony, the utility ballast, was created in response to customer demand for an electronic ballast to compete closely in pricing with magnetic ballast systems while providing all the benefits of electronics: flicker-free operation, greater energy efficiency, cooler running, lighter weight and small, design-friendly packages. These solid state electronic ballasts are engineered to perform efficiently with the lamps they operate, and meet FCC part 18-A and 18-B. Pony ballasts are applicable for under-cabinet lighting, sconces, down lightstroffers, UV, fish tanks and more.
FULHAM® PONY™ Electronic Fluorescent Ballast, High Frequency, F32T8 Lamp, 32 W Lamp, 65 W Wattage, 120 VAC, 0.97 A, 50/60 Hz Frequency, Rapid Start, -14 deg F Minimum Starting, Total Harmonic Distortion: 125 %, Power Factor: >0.5, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1.07, NEMA 1 Enclosure, 75 deg C, 12.01 in L x 0.96 in W x 0.83 in H Dimensions
| Amperage Rating | : | 0.97 A |
| Dimensions | : | 12.01 in L x 0.96 in W x 0.83 in H |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Minimum Starting Temperature | : | -14 deg F |
| Number of Lamps | : | 2 |
| Power Factor | : | >0.5 |
| Temperature Range | : | 75 deg C |
| Thermal Protection | : | Class P |
| Total Harmonic Distortion | : | 125 % |
| Type | : | High Frequency |
| Wattage | : | 65 W |
| Lamp Type | : | F32T8 |
| Lamp Wattage | : | 32 W |
| Voltage Rating | : | 120 VAC |
| Start Type | : | Rapid |
| Ballast Factor | : | 1.07 |
