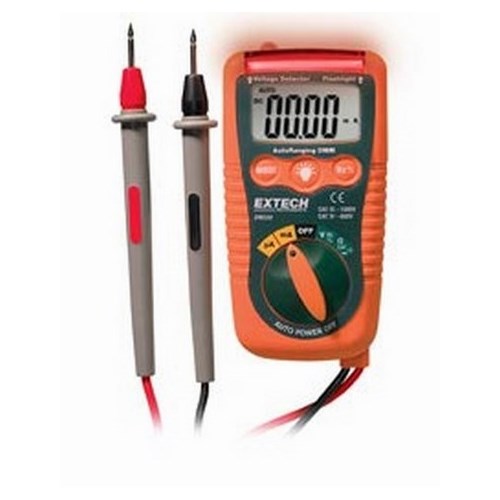

DM220 Digital Autoranging Mini Pocket Multimeter With Non-Contact Voltage Detector and Built-In Flashlight, 1 mV to 600 VAC, 0.1 mV to 600 VDC, 0.01 to 200 mA AC/DC, 0.1 Ohm to 40 MOhm, 4000 Count Large Digital LCD Display
| Branch Name | Available |
|---|
Sold as: Pack of Each

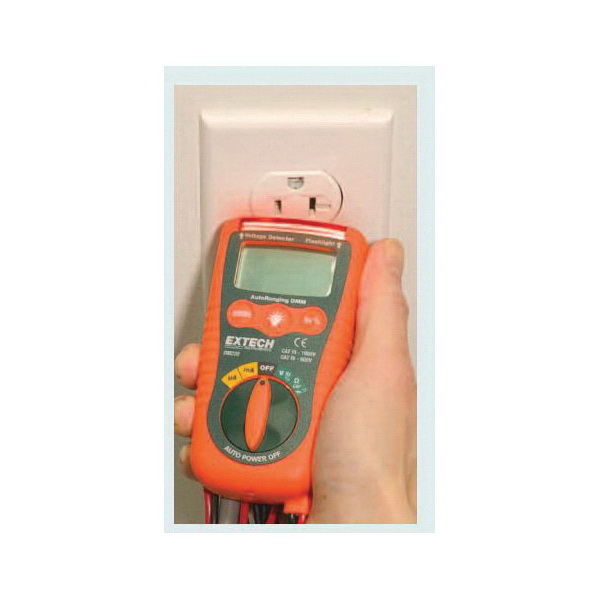

This mini pocket multimeter has a large high contrast 4000 count LCD display, non-contact voltage detection for identifying live circuits and a built-in flashlight. It measures AC/DC voltage, AC/DC current, resistance, frequency, duty cycle, diode test and has a continuity beeper. Additional features include built-in storage clips for integrated test leads, double molded housing to provide extra protection, over-range and low battery indication. Complete with test leads and 2 AAA battery.
Extech® Multimeter, Digital Autoranging Mini Pocket, 1 mV to 600 VAC, 0.1 mV to 600 VDC, 0.01 to 200 mA AC/DC, 0.001 Hz to 9.999 kHz, 0.1 Ohm to 40 MOhm, Safety Rating: CAT III 1000V, CAT IV 600V, 0.001 to 200 uF, 50 to 60 Hz Bandwidth, 4000 Count Large Digital LCD, (2) 1.5 VDC AAA Battery, Yes, 4.09 x 2.1 x 1.2 in, 32 to 104 deg F
| Bandwidth | : | 50 to 60 Hz |
| Battery Type | : | (2) 1.5 VDC AAA |
| Capacitance | : | 0.001 to 200 uF |
| Dimensions | : | 4.09 x 2.1 x 1.2 in |
| Diode Test | : | Yes |
| Frequency Rating | : | 0.001 Hz to 9.999 kHz |
| Safety Rating | : | CAT III 1000V, CAT IV 600V |
| Temperature Rating | : | 32 to 104 deg F |
| Type | : | Digital Autoranging Mini Pocket |
| Voltage Rating | : | 1 mV to 600 VAC, 0.1 mV to 600 VDC |
| Amperage Rating | : | 0.01 to 200 mA AC/DC |
| Resistance | : | 0.1 Ohm to 40 MOhm |
| Display Type | : | 4000 Count Large Digital LCD |
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Extech_DM220_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Extech_DM220_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Extech_DM220_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Extech_DM220_Specification_Sheet.pdf
