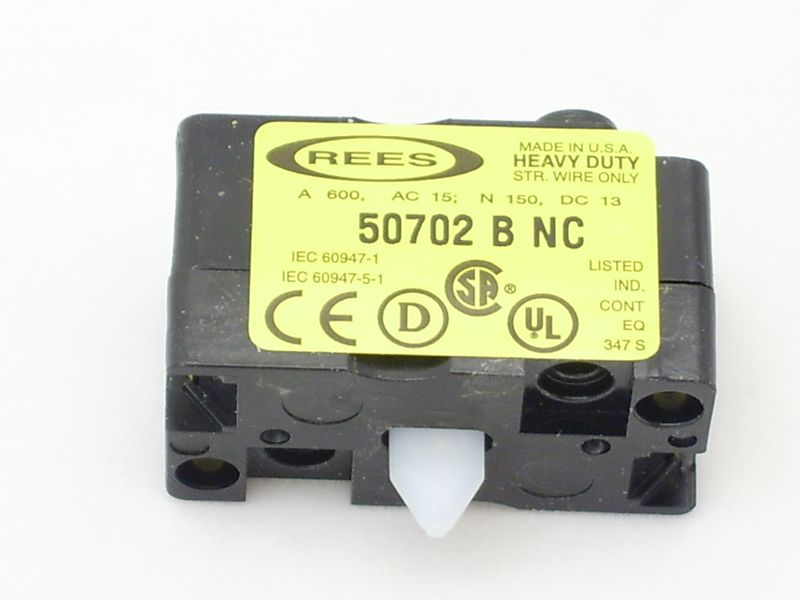

50702-000 Heavy Duty Contact Block, 22.5 mm, 1NC Contact, 6 A at 110 to 120 VAC, 3 A at 220 to 240 VAC, 1.5 A at 440 to 480 VAC, 1.2 A at 550 to 600 VAC, 2.2 A at 115 to 125 VDC, 1.1 A at 230 to 250 VDC Contact, Gold Plated Contact
| Branch Name | Available |
|---|
Sold as: Pack of EACH
REES Contact Block, Heavy Duty, 22.5 mm Size, 1NC Contact Configuration, 6 A at 110 to 120 VAC, 3 A at 220 to 240 VAC, 1.5 A at 440 to 480 VAC, 1.2 A at 550 to 600 VAC, 2.2 A at 115 to 125 VDC, 1.1 A at 230 to 250 VDC Contact, Gold Plated Contact, Pushbutton/Selector Switch Operator, NEMA 12/13 NEMA Rating, IP65 Enclosure, Threaded/Nut Mounting, 1.35 in L x 1.35 in W Dimensions
| Dimensions | : | 1.35 in L x 1.35 in W |
| Enclosure Type | : | IP65 |
| Mounting Type | : | Threaded/Nut |
| NEMA Rating | : | NEMA 12/13 |
| Operator Type | : | Pushbutton/Selector Switch |
| Type | : | Heavy Duty |
| Size | : | 22.5 mm |
| Contact Configuration | : | 1NC |
| Contact Rating | : | 6 A at 110 to 120 VAC, 3 A at 220 to 240 VAC, 1.5 A at 440 to 480 VAC, 1.2 A at 550 to 600 VAC, 2.2 A at 115 to 125 VDC, 1.1 A at 230 to 250 VDC |
| Contact Material | : | Gold Plated |
