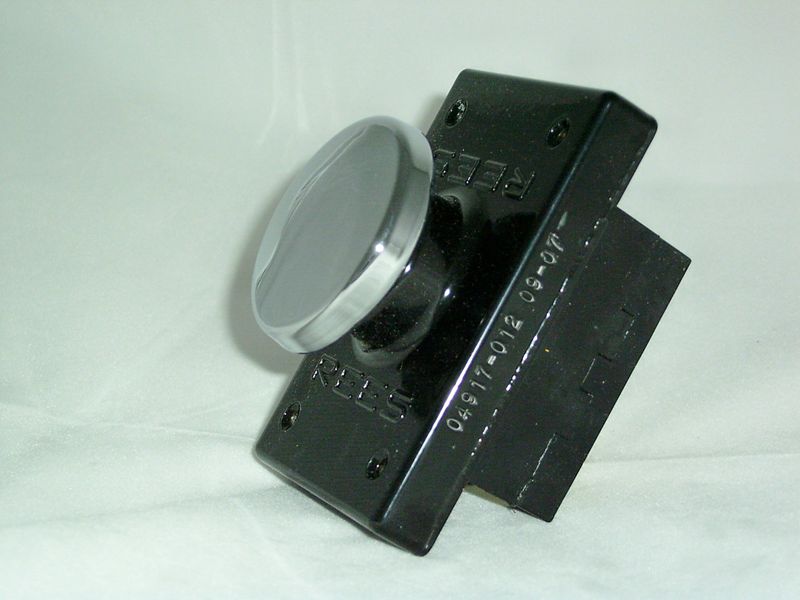

04917-012 Flat Square Heavy Duty Non-Illuminated Pushbutton Switch With Larger Mounting Pattern, 2-1/4 in, 2NO-2NC Contact, Snap Action Contact, Hand Operator, Black/Chrome
Sold as: Pack of EACH
REES Non-Illuminated Pushbutton Switch, Flat Square Heavy Duty, 2-1/4 in, 2NO-2NC, Snap Action Contact, Momentary Contact Mode, 6 A at 110 to 120 VAC, 3 A at 220 to 240 VAC, 1.55 A 440 to 480 VAC, 1.2 A 550 to 600 VAC, 2.2 A at 115 to 125 VDC, 1.1 A at 230 to 250 VDC Contact, Hand Operator, Bezel/Housing: Die Cast Zinc, Mushroom Plunger, 14 AWG Stranded Wire Terminal, NEMA 12/13/IP65, Plastic, Dry Powder Coated, Black/Chrome, Environmental Conditions: -32 to 131 deg F Operating, -40 to 185 deg F Ambient
| Actuator | : | Mushroom Plunger |
| Bezel/Housing | : | Die Cast Zinc |
| Contact Mode | : | Momentary |
| Contact Rating | : | 6 A at 110 to 120 VAC, 3 A at 220 to 240 VAC, 1.55 A 440 to 480 VAC, 1.2 A 550 to 600 VAC, 2.2 A at 115 to 125 VDC, 1.1 A at 230 to 250 VDC |
| Enclosure Type | : | NEMA 12/13/IP65 |
| Environmental Conditions | : | -32 to 131 deg F Operating, -40 to 185 deg F Ambient |
| Finish | : | Dry Powder Coated |
| Material | : | Plastic |
| Terminal Type | : | 14 AWG Stranded Wire |
| Type | : | Flat Square Heavy Duty |
| Size | : | 2-1/4 in |
| Contact Configuration | : | 2NO-2NC |
| Contact Type | : | Snap Action |
| Operator Type | : | Hand |
| Color | : | Black/Chrome |
