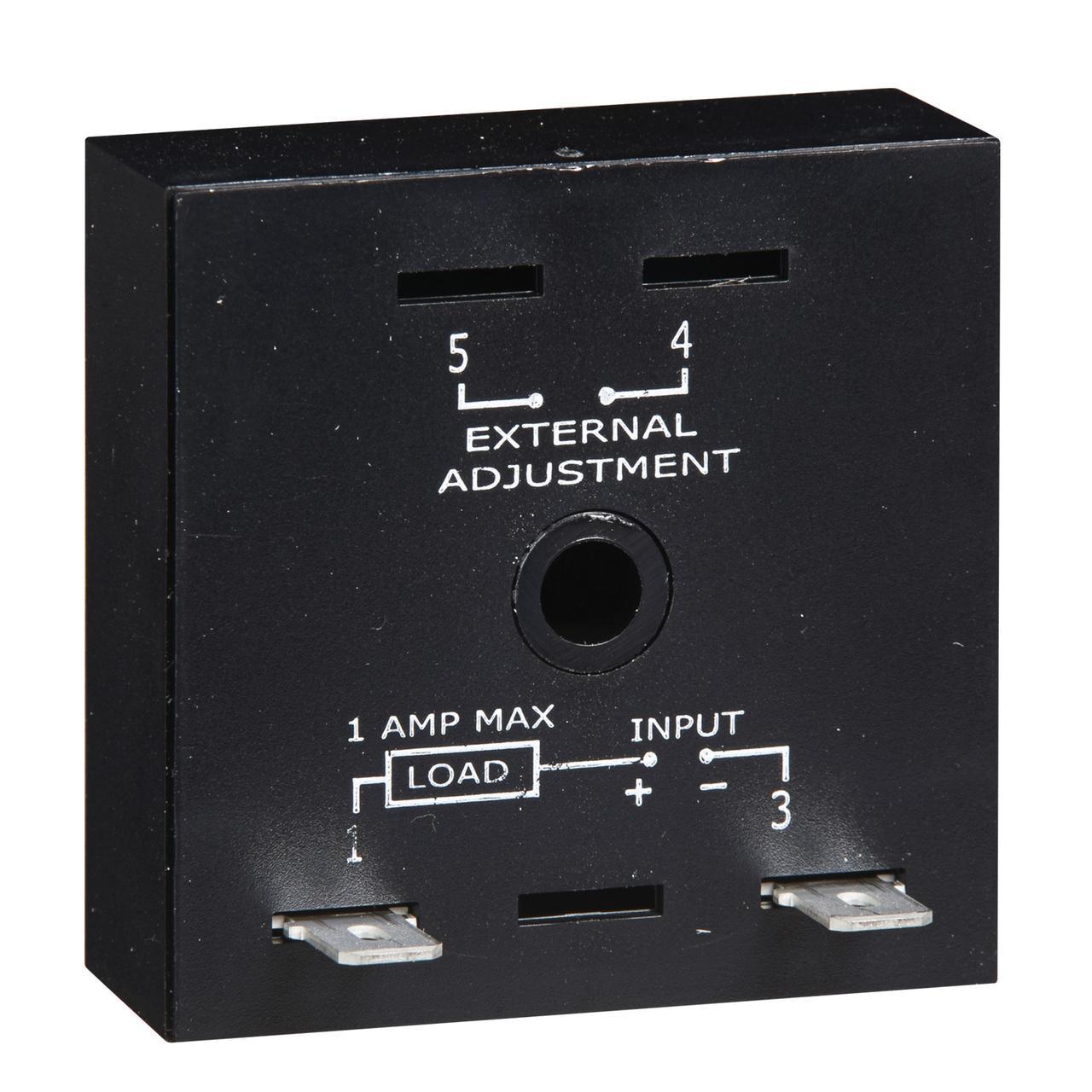

TS14110 Fixed Time Delay Relay, SSAC®, 10 s Setting, 120 VAC, SPST/NO (1 Form A) Contact
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The TS1 series offers proven reliability and performance with years of use in OEM equipment and commercial applications. This encapsulated general use timing module is capable of controlling load currents ranging from 5 mA to 1 A. May be connected in series with contactors, relays, valves, solenoids, small motors and lamps.
Littelfuse® SSAC® Time Delay Relay, Fixed, Series: TS1, Operation Mode: Delay On Make, 120 VAC, SPST/NO (1 Form A) Contact Form, 10 s Time Setting, Male Quick-Connect Terminal Electrical Connections, -40 to 80 deg F, Surface Mounting, 2 in H x 2 in W x 1.21 in D
| Dimensions | : | 2 in H x 2 in W x 1.21 in D |
| Electrical Connections | : | Male Quick-Connect Terminal |
| Mounting Type | : | Surface |
| Operation Mode | : | Delay On Make |
| Series | : | TS1 |
| Temperature Rating | : | -40 to 80 deg F |
| Type | : | Fixed |
| Time Setting | : | 10 s |
| Voltage Rating | : | 120 VAC |
| Contact Form | : | SPST/NO (1 Form A) |
