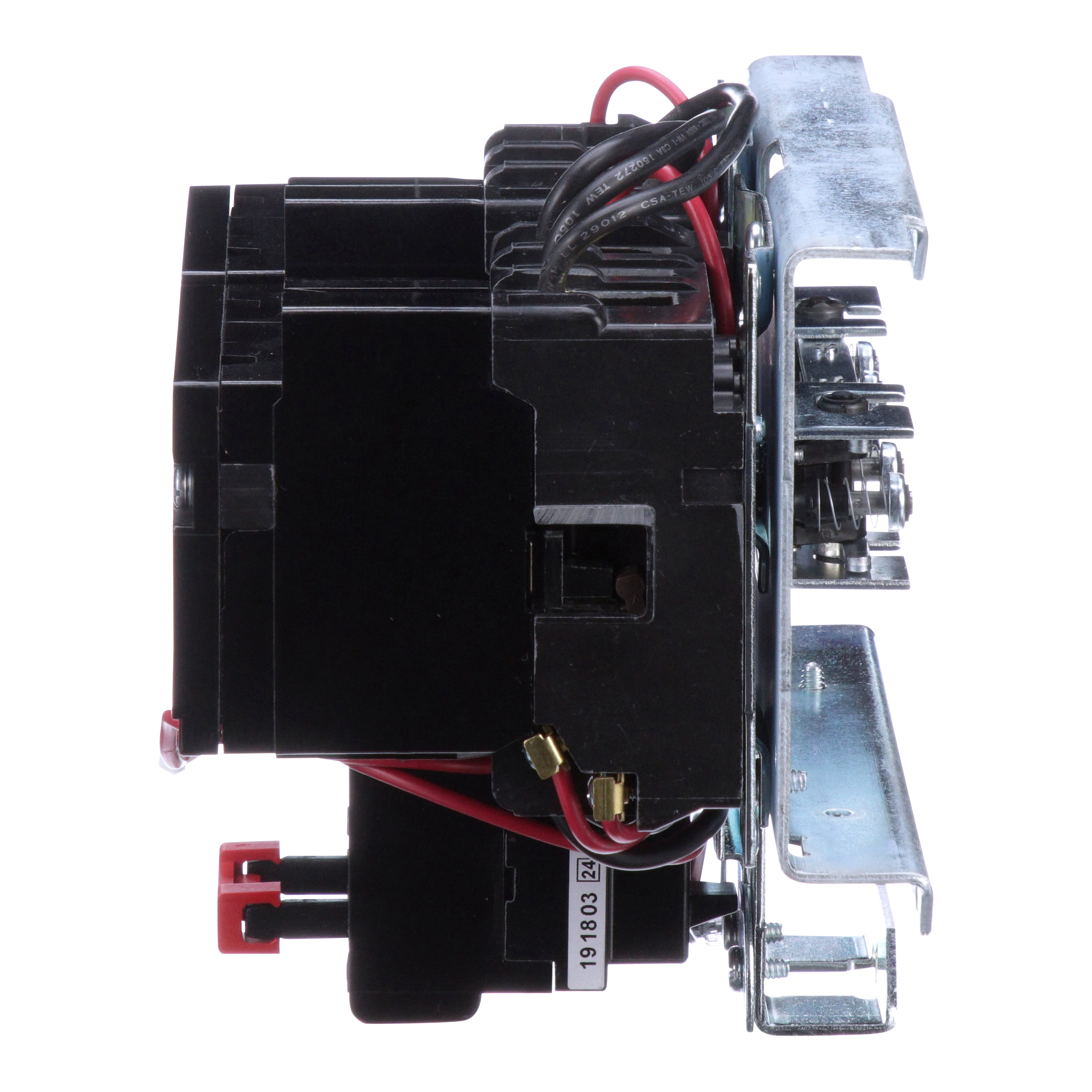

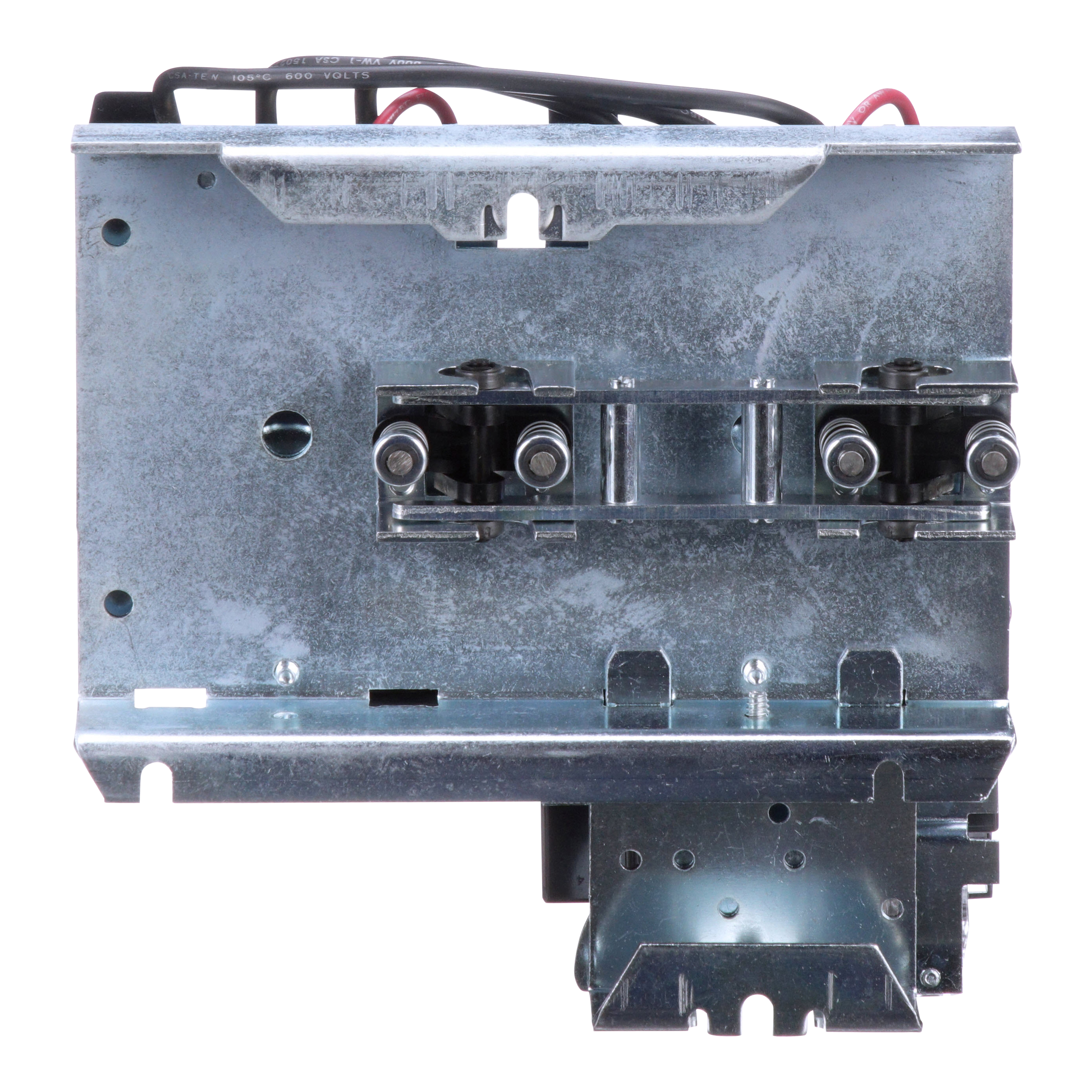

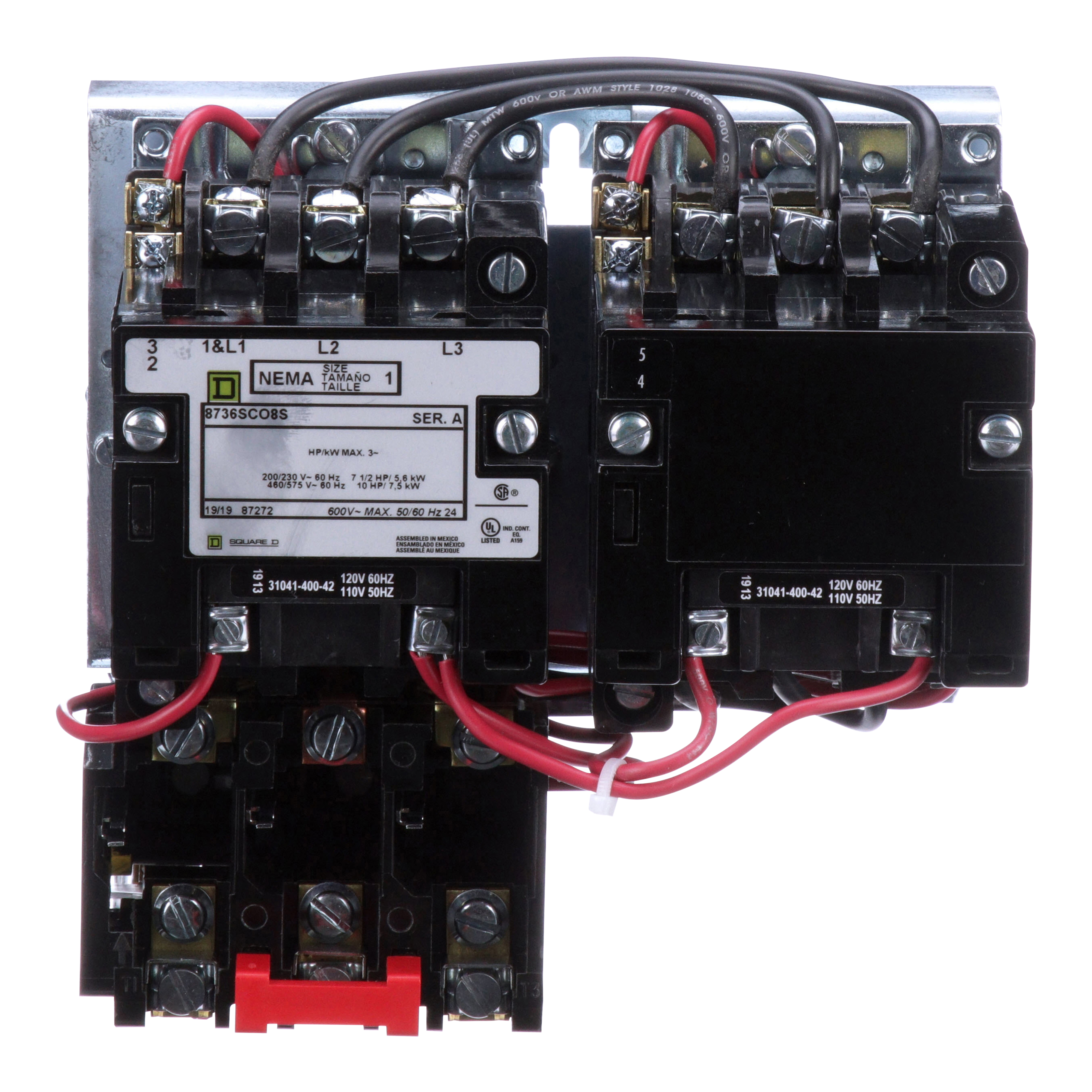

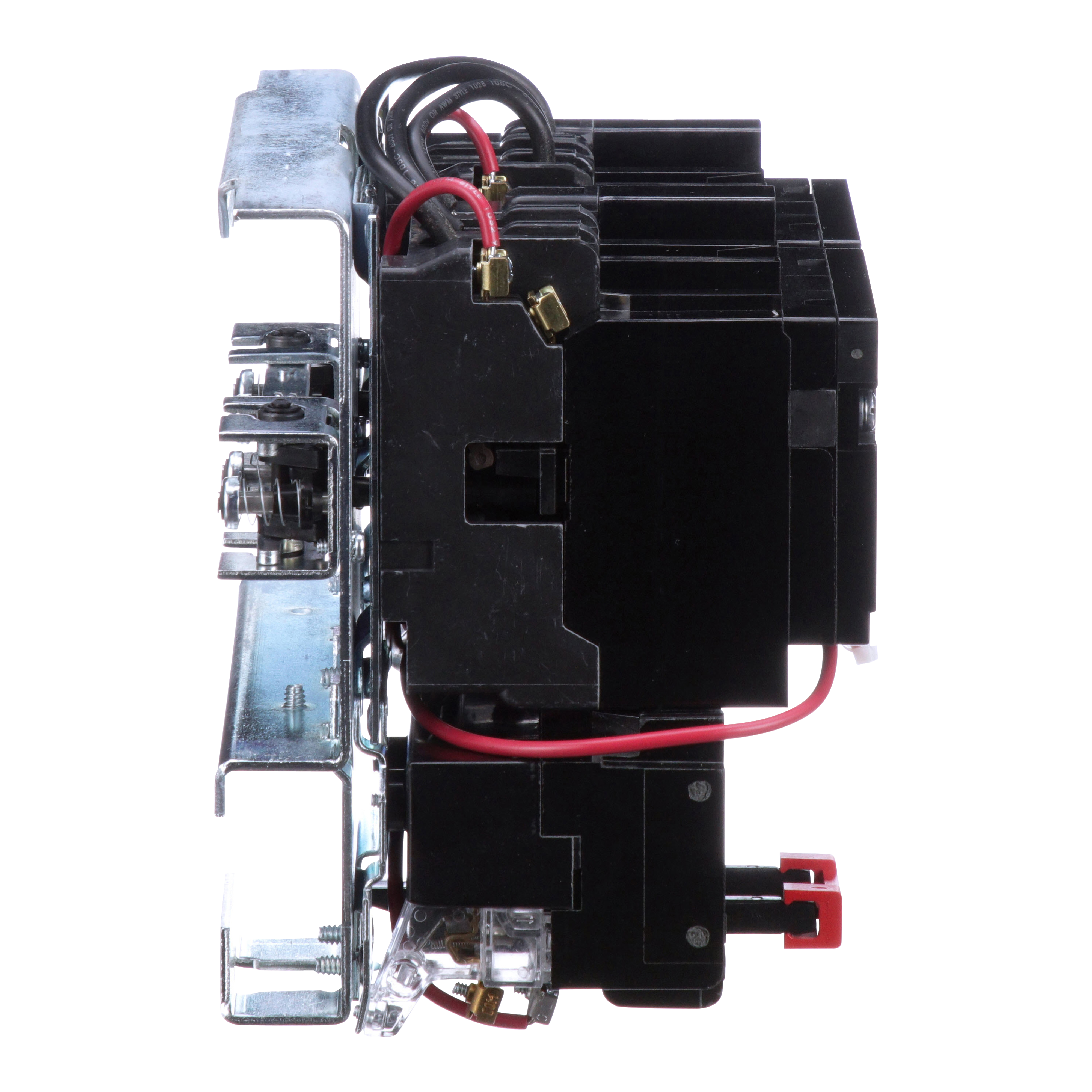

8736SCO8V02S Horizontal Type S Starter, Square D™, 110/120 VAC V Coil, Reversing Action, 3 Poles, NEMA 1/Open Enclosure
| Branch Name | Available |
|---|
Square D 8736SCO8V02S reversing magnetic starter for motor applications, nema size 1, 10 hp at 600 vac maximum, 27 amperes, 3 pole, with 110/120 VAC, 50/60 Hz operating coil wired for separate source, melting alloy type overload relay, UL Listed, CSA Certified, CE Marked, open style with various types of accessories and enclosures available.
Square D™ Starter, Horizontal Type S, 600 VAC, 27 A, 50/60 Hz, 7-1/2 hp/10 hp Motor, 110/120 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Reversing, Thermal Melting Alloy Overload Relay, NEMA 1/Open, Starting Modes: Magnetic, 7.13 in W x 5.31 in D x 6.93 in H
| Amperage Rating | : | 27 A |
| Connection Type | : | Screw Clamp |
| Dimensions | : | 7.13 in W x 5.31 in D x 6.93 in H |
| Frequency Rating | : | 50/60 Hz |
| Motor Power | : | 7-1/2 hp/10 hp |
| Overload Relay | : | Thermal Melting Alloy |
| Phase | : | 3 ph |
| Reset Type | : | (3) Thermal Melting Alloy |
| Starting Modes | : | Magnetic |
| Voltage Rating | : | 600 VAC |
| Type | : | Horizontal Type S |
| Coil Voltage | : | 110/120 VAC |
| Action | : | Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA 1/Open |
