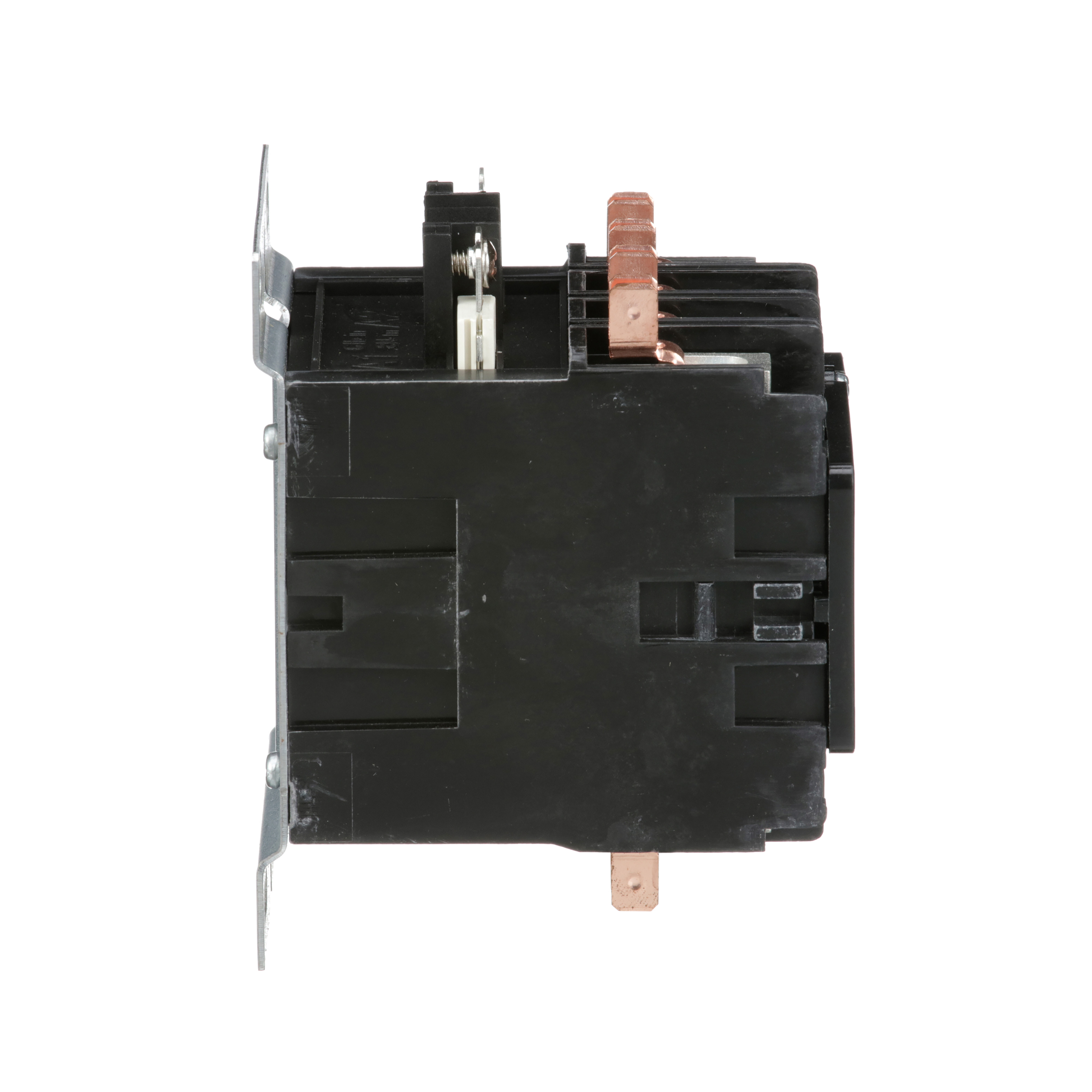

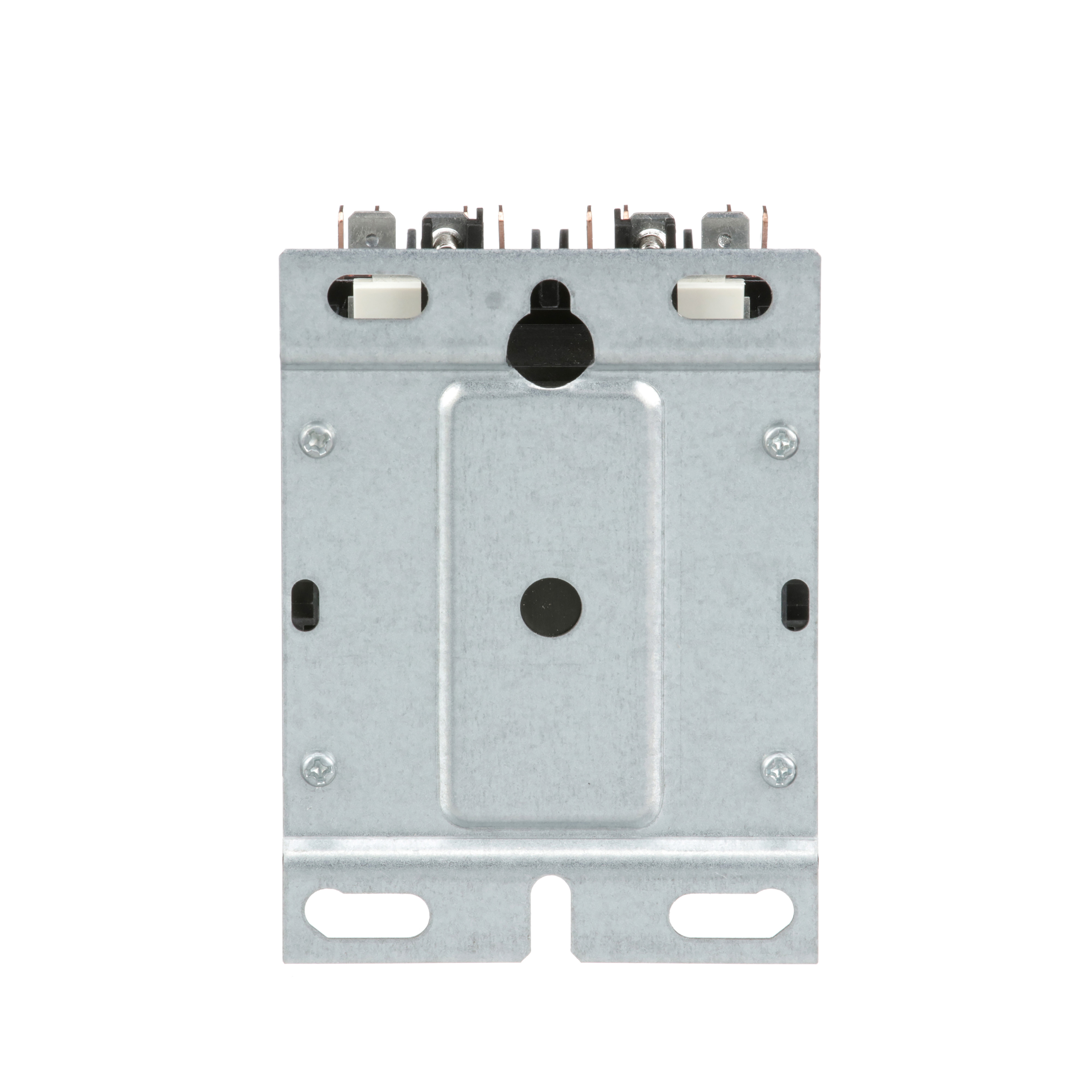

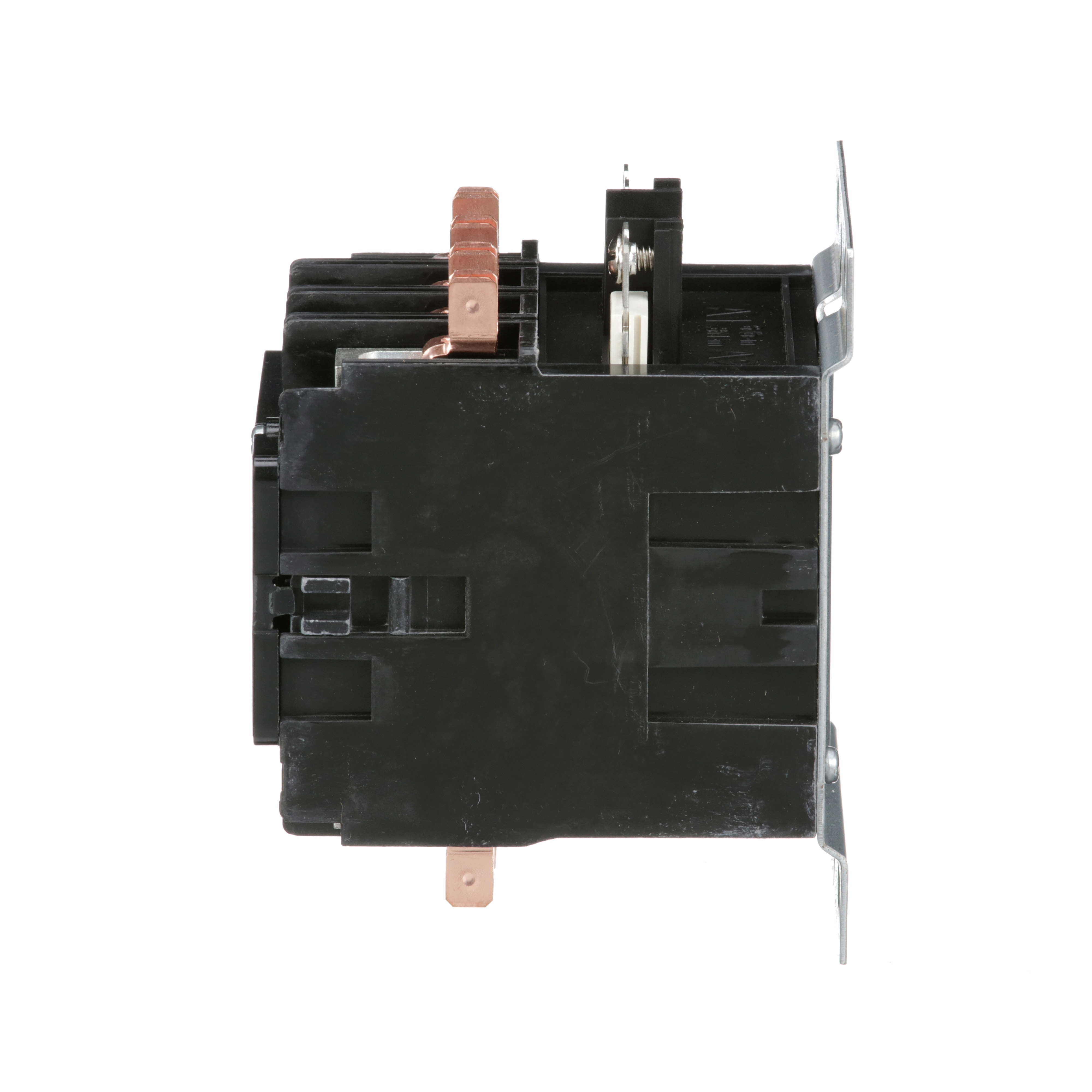

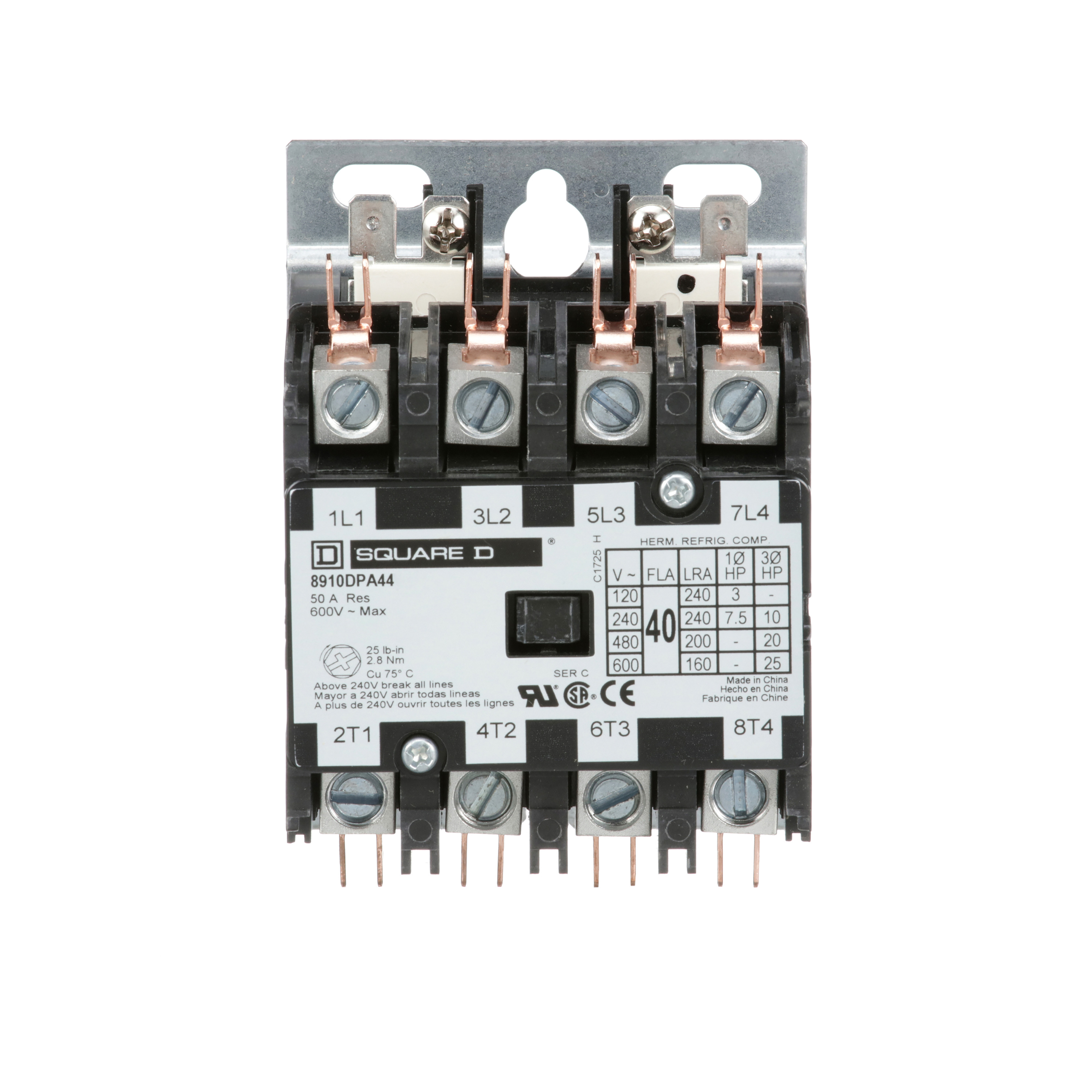

8910DPA44V09 3-Phase Electromechanical Type DPA Definite Purpose Contactor, Square D™, 208/220/240 VAC V Coil, 40 A, 4NO Contact, 4 Poles
| Branch Name | Available |
|---|
Square D™ 8910DPA44V09 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 4-pole, 40 A (inductive) and 50 A (resistive) maximum at 600 V, 208 to 240 VAC, 50/60 Hz. operating coil, UL recognized, CSA Certified, CE marked, open style, with Type 1 enclosure and DIN mounting bracket available.
Square D™ Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 208/220/240 VAC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC, 4 Pole, 50/60 Hz, Non-Reversing Contact, 4NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 2.5 in W x 3.12 in D x 4 in H
| Coil Power Rating | : | 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC |
| Connection Type | : | Binding Head Screw |
| Contact Rating | : | 600 VAC |
| Contact Type | : | Non-Reversing |
| Dimensions | : | 2.5 in W x 3.12 in D x 4 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Operating Cycles | : | 500000 cycles |
| Operating Temperature | : | 0 to 65 deg C |
| Series | : | 8910 |
| Terminal Type | : | Quick-Connect |
| Type | : | 3-Phase Electromechanical Type DPA |
| Coil Voltage | : | 208/220/240 VAC |
| Maximum Load Current | : | 40 A |
| Contact Configuration | : | 4NO |
| Number of Poles | : | 4 |
