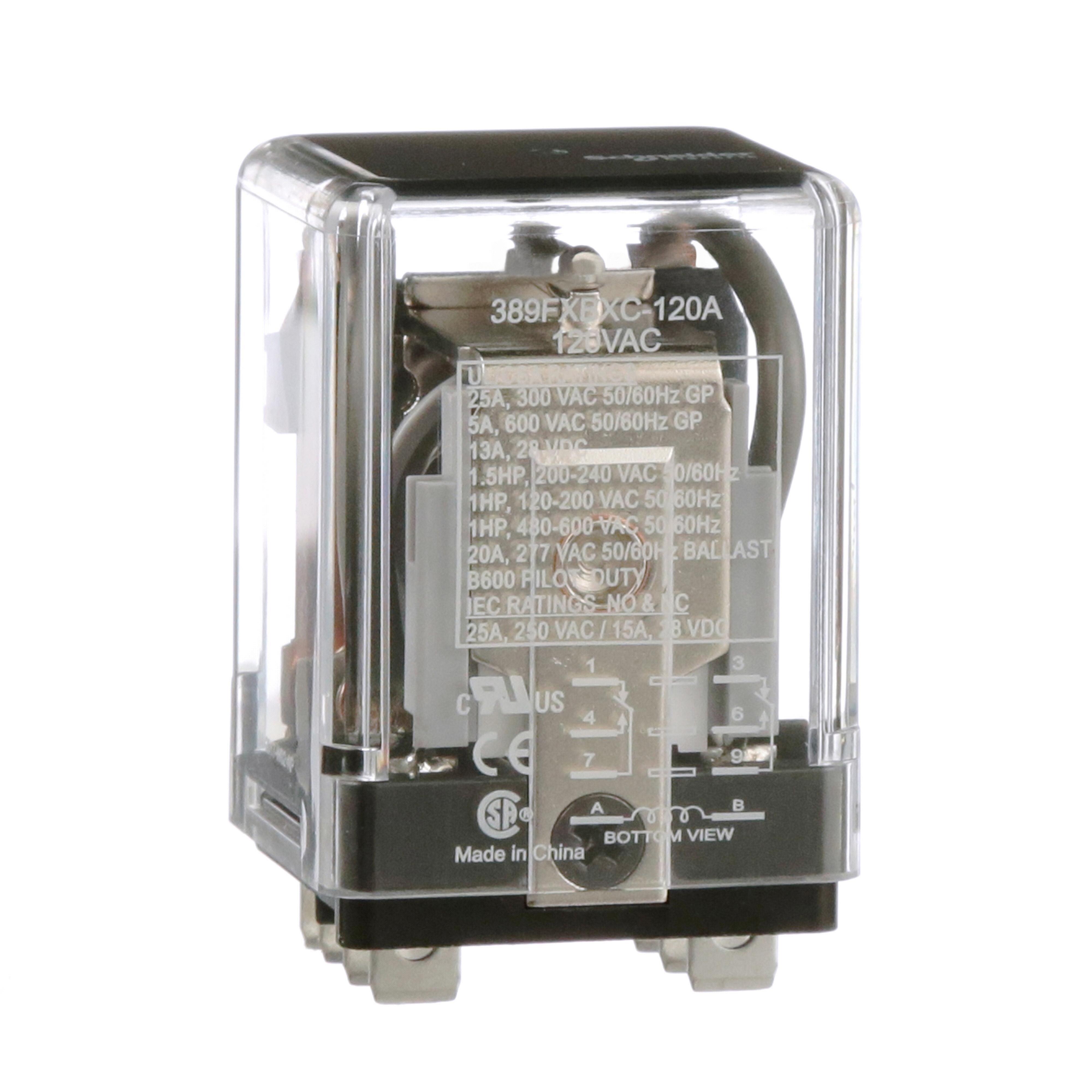

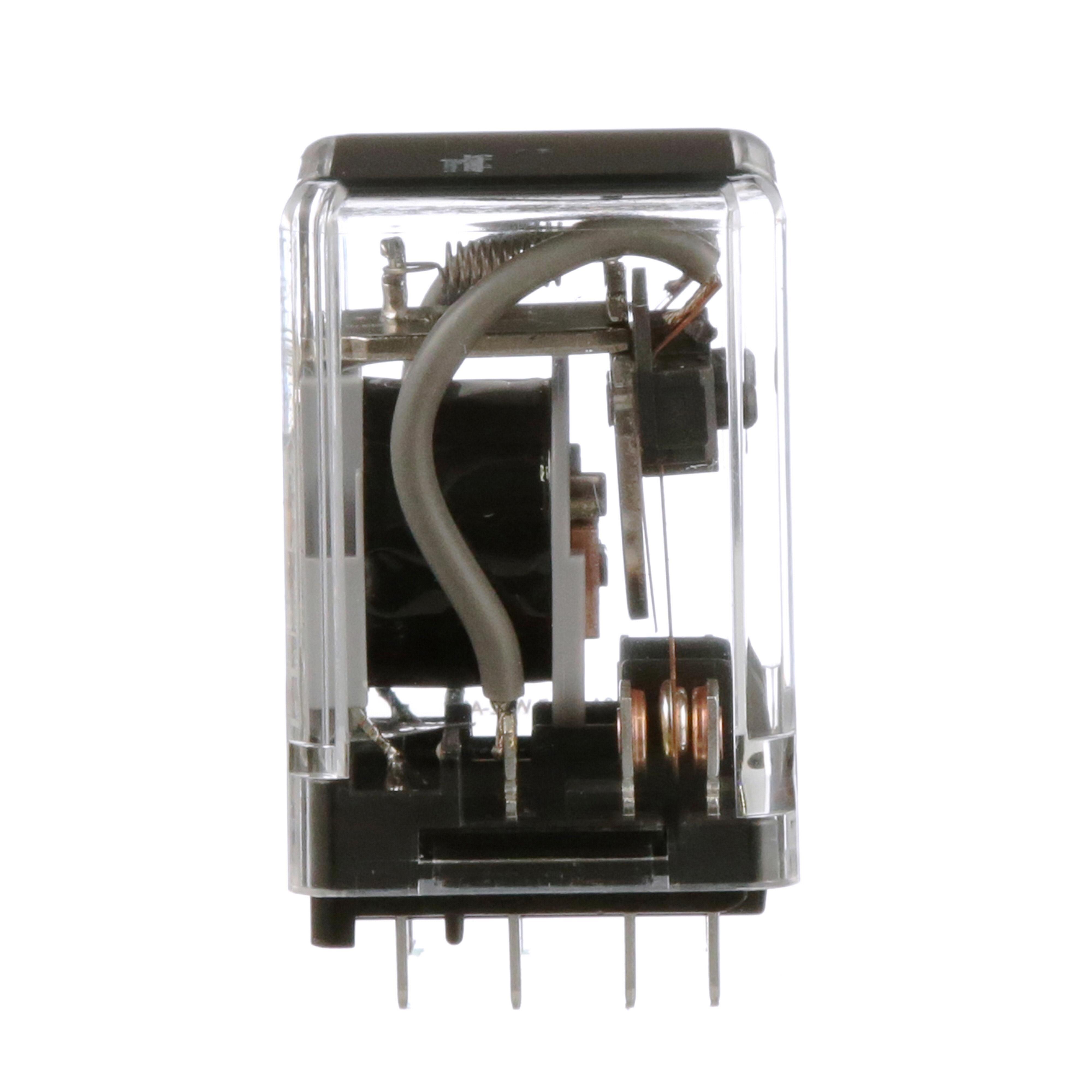

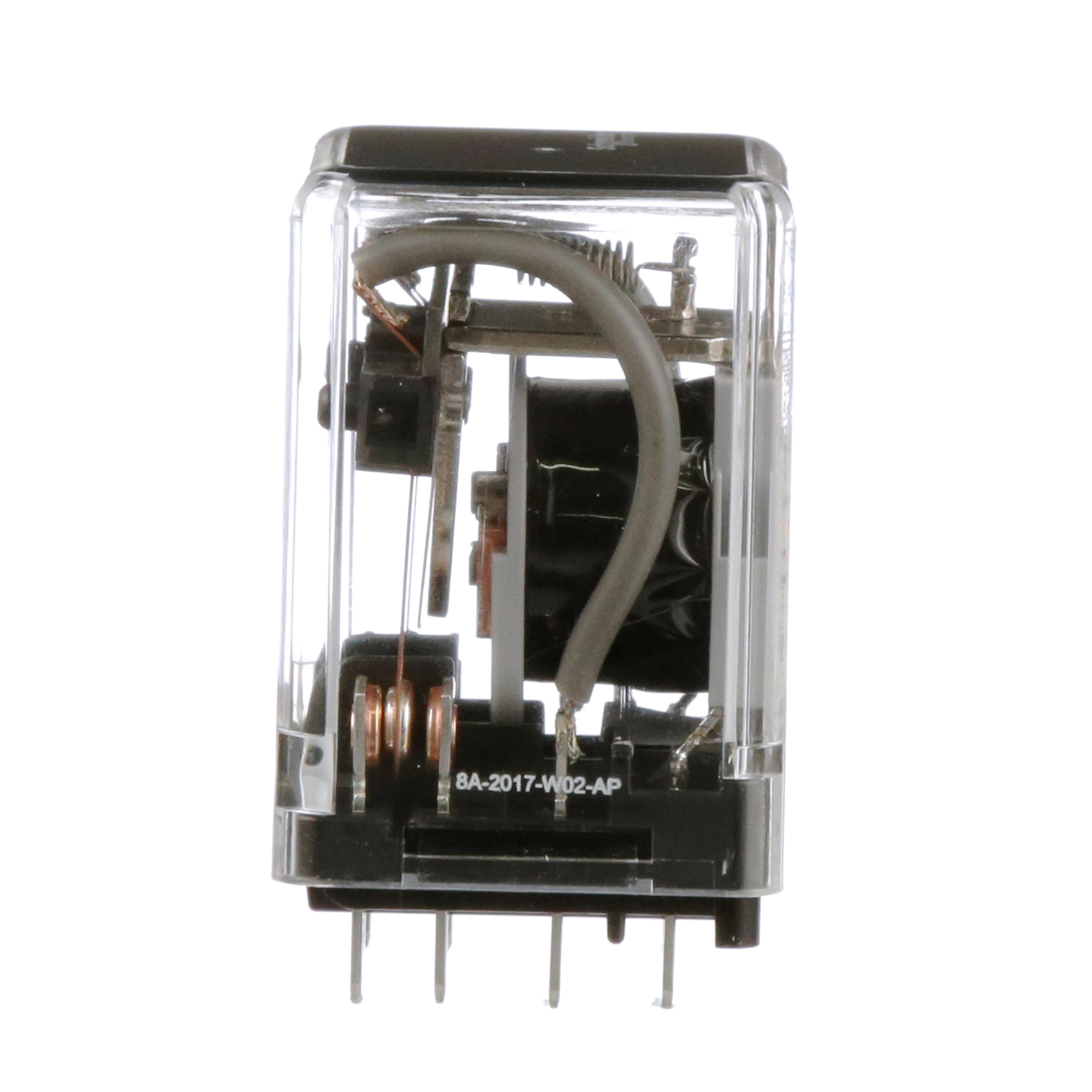

Schneider Electric 389FXBXC-120A W389 Series Standard, 25 A, DPDT 2-Form C contact, 120 VAC v coil
Sold as: Pack of EACH
The 389F series power relay, 389FXBXC-120A , offers high contact rating of 20 A at 300 VAC with ability to hold motor loads up to 1.5 hp at 200 to 240 VAC with nominal coil voltage 120 VAC . Maximum switching voltage 600 V makes relay suitable for high-power switching applications. Supported ballast load contact rating perfectly suits for lighting controls. Silver alloy DPDT contact configuration makes an ideal solution for variety of application requirements. Plug-in (socket) mounting option with wide range of accessories helps increase design and installation flexibility. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).
Schneider Electric 389FXBXC-120A, Standard, W389 Series, 25 A, 2 VAC Power, 120 VAC Coil, DPDT (2 Form C) Contact Form, Socket Mounting, -22 to 131 deg F
| Mounting Type | : | Socket |
| Power Rating | : | 2 VAC |
| Series | : | W389 Series |
| Temperature Rating | : | -22 to 131 deg F |
| Type | : | Standard |
| Amperage Rating | : | 25 A |
| Contact Form | : | DPDT 2-Form C |
| Coil Voltage | : | 120 VAC |
