072440 CPL24-LED40 Standard Indoor Ceiling Panel Fixture, LED Lamp, 120 to 277 V
| Branch Name | Available |
|---|
Sold as: Pack of 1/PK

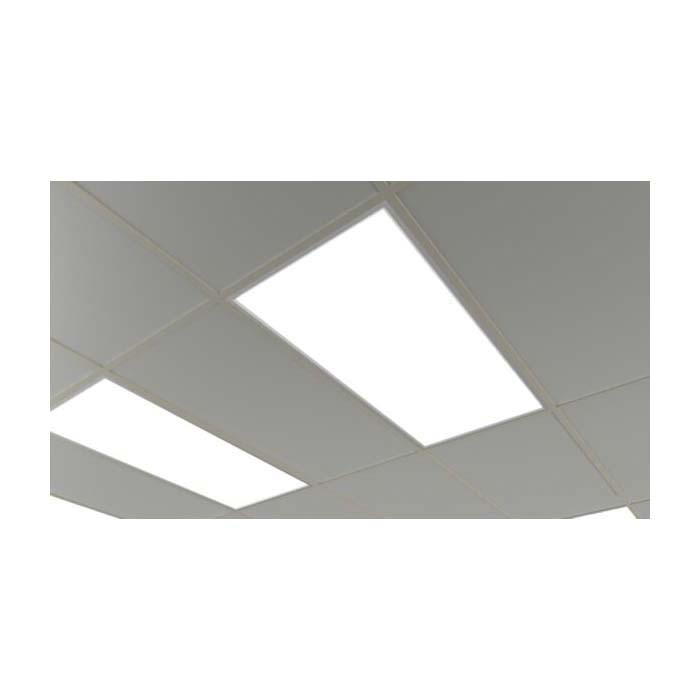

The CPL-LED fixture is a backlit LED ceiling panel that provides uniform distribution, superior performance and reduced glare. The fixture is ideal for offices, schools, retail and commercial spaces.
RAB® Indoor Ceiling Panel Fixture, Standard, Series: CPL24-LED40, 120 to 277 V, Backlit Lighting Technology, LED Lamp, 40 W Lamp, 127.5 Lumens/W Light Output, 4000 K Color Temperature, 82.8 CRI, 0 to 10 VDC Dimming Ballast, Acrylic/PMMA Lens, 5100 Lumens, IP20 Enclosure, T-Bar Ceiling Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.61 in H Dimensions
| Ballast Type | : | 0 to 10 VDC Dimming |
| Color Rendering Index (CRI) | : | 82.8 |
| Color Temperature | : | 4000 K |
| Dimensions | : | 4 ft L x 2 ft W x 1.61 in H |
| Enclosure Type | : | IP20 |
| Housing Material | : | Aluminum |
| Lamp Wattage | : | 40 W |
| Lens Type | : | Acrylic/PMMA |
| Light Output | : | 127.5 Lumens/W |
| Lighting Technology | : | Backlit |
| Lumens | : | 5100 Lumens |
| Mounting Type | : | T-Bar Ceiling |
| Series | : | CPL24-LED40 |
| Type | : | Standard |
| Lamp Type | : | LED |
| Voltage Rating | : | 120 to 277 V |
