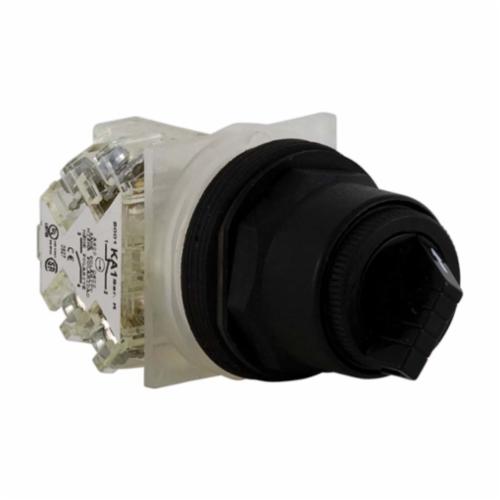

Schneider Electric Harmony™ 9001SKS11BH13 Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Round Non-Illuminated Selector Switch, 30 mm, 1CO Contact, Standard Knob/Stay Put Operator, Black
This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30 mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Non-Illuminated Selector Switch, Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Round, Series: 9001SK, 30 mm, 1CO, Maintained Contact Mode, 10 A at 600 VAC, AC15 - DC13 Contact, Standard Knob/Stay Put Operator, 2 Positions, 70 deg Left/Right Throw, Cam Code: E, Bezel/Housing: Plastic, Pushbutton, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/6/12/13/IP66, Panel Mount, Plastic, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature
| Actuator | : | Pushbutton |
| Bezel/Housing | : | Plastic |
| Cam Code | : | E |
| Contact Mode | : | Maintained |
| Contact Rating | : | 10 A at 600 VAC, AC15 - DC13 |
| Enclosure Type | : | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions | : | -25 to 70 deg C Operating Temperature |
| Material | : | Plastic |
| Mounting Type | : | Panel |
| Number of Positions | : | 2 |
| Series | : | 9001SK |
| Terminal Type | : | Screw Clamp |
| Throw | : | 70 deg Left/Right |
| Type | : | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Round |
| Size | : | 30 mm |
| Contact Configuration | : | 1CO |
| Operator Type | : | Standard Knob/Stay Put |
| Color | : | Black |
