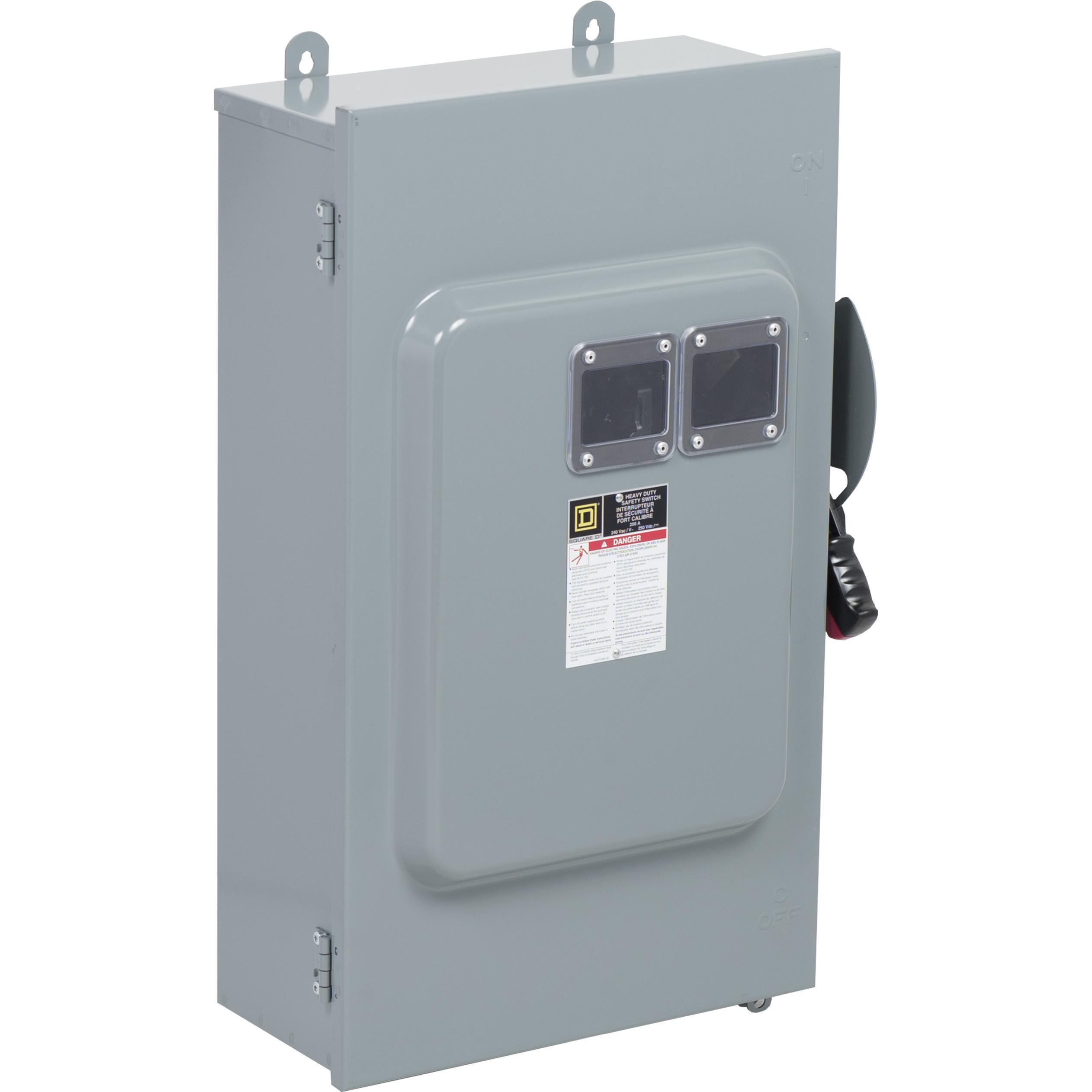

CH224NAWK F5 Dusttight Driptight Fusible Heavy Duty Safety Switch With Viewing Window, 240/250 VAC/VDC, 200 A, 60 hp at 240 VAC, 40 hp at 250 VDC, Single Throw Contact, 2 Poles
The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of 3X the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.
Schneider Electric Heavy Duty Safety Switch, Dusttight Driptight Fusible, Series, 240/250, Amperage Rating VAC/VDC, A 200, 60 hp at 240 VAC, 40 hp at 250 VDC, Phase, Number of Poles, 3 Wires, Short Circuit Current Rating, kA 200, Single Throw, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, -22 to 104, Dimensions deg F, Steel, Color, Galvannealed/Painted
| Actuator Type | : | Handle |
| Color | : | Gray |
| Dimensions | : | 29 in H x 18.63 in W x 8.75 in D |
| Enclosure Type | : | NEMA 12 |
| Finish | : | Galvannealed/Painted |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Wires | : | 3 |
| Phase | : | 3 |
| Series | : | F5 |
| Short Circuit Current Rating | : | 200 kA |
| Temperature Rating | : | -22 to 104 deg F |
| Terminal Type | : | Lug |
| Type | : | Dusttight Driptight Fusible |
| Voltage Rating | : | 240/250 VAC/VDC |
| Amperage Rating | : | 200 A |
| Horsepower | : | 60 hp at 240 VAC, 40 hp at 250 VDC |
| Contact Form | : | Single Throw |
| Number of Poles | : | 2 |
