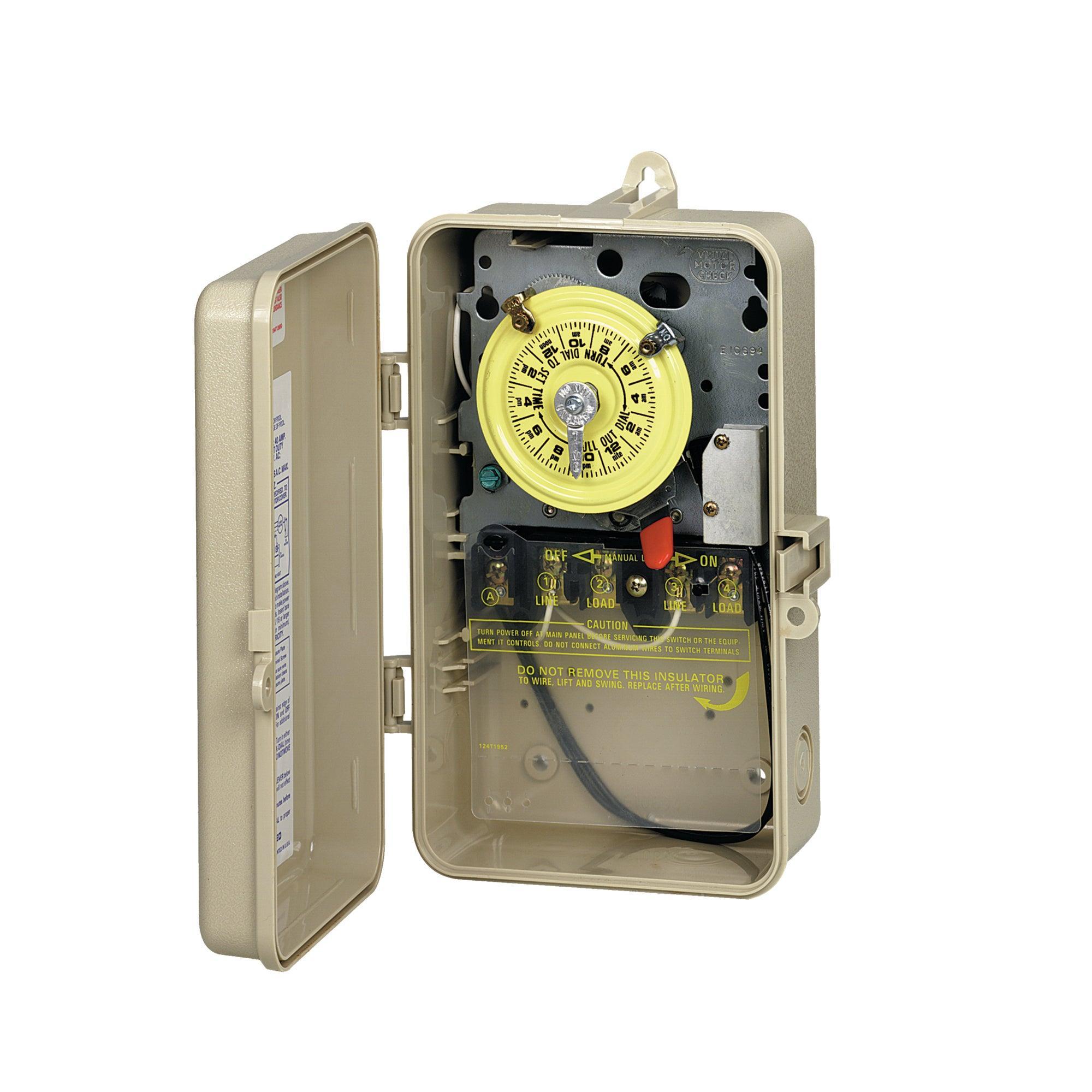

Intermatic® T101R201 T100 Heavy Duty Mechanical Timer Switch, 24 hr Setting, 120 VAC, 2 hp, 1NO/SPST Contact, 1 Poles
| Branch Name | Available |
|---|
Sold as: Pack of EACH
These heavy-duty Mechanical Time Switches are designed for commercial, industrial and residential applications and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with a minimum ON/OFF time of 1 hour.
Intermatic® Mechanical Timer Switch, Heavy Duty, Series: T100, 120 VAC, 40 A, 2 hp, 1 Pole, 1NO/SPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D Dimensions
| Amperage Rating | : | 40 A |
| Dimensions | : | 10-1/8 in H x 6-1/2 in W x 3-5/8 in D |
| Electrical Connections | : | Teeter |
| Enclosure Type | : | NEMA 3R |
| Mounting Type | : | Wall |
| Series | : | T100 |
| Temperature Rating | : | -40 to 130 deg F |
| Type | : | Heavy Duty |
| Time Setting | : | 24 hr |
| Voltage Rating | : | 120 VAC |
| Horsepower | : | 2 hp |
| Contact Form | : | 1NO/SPST |
| Number of Poles | : | 1 |
