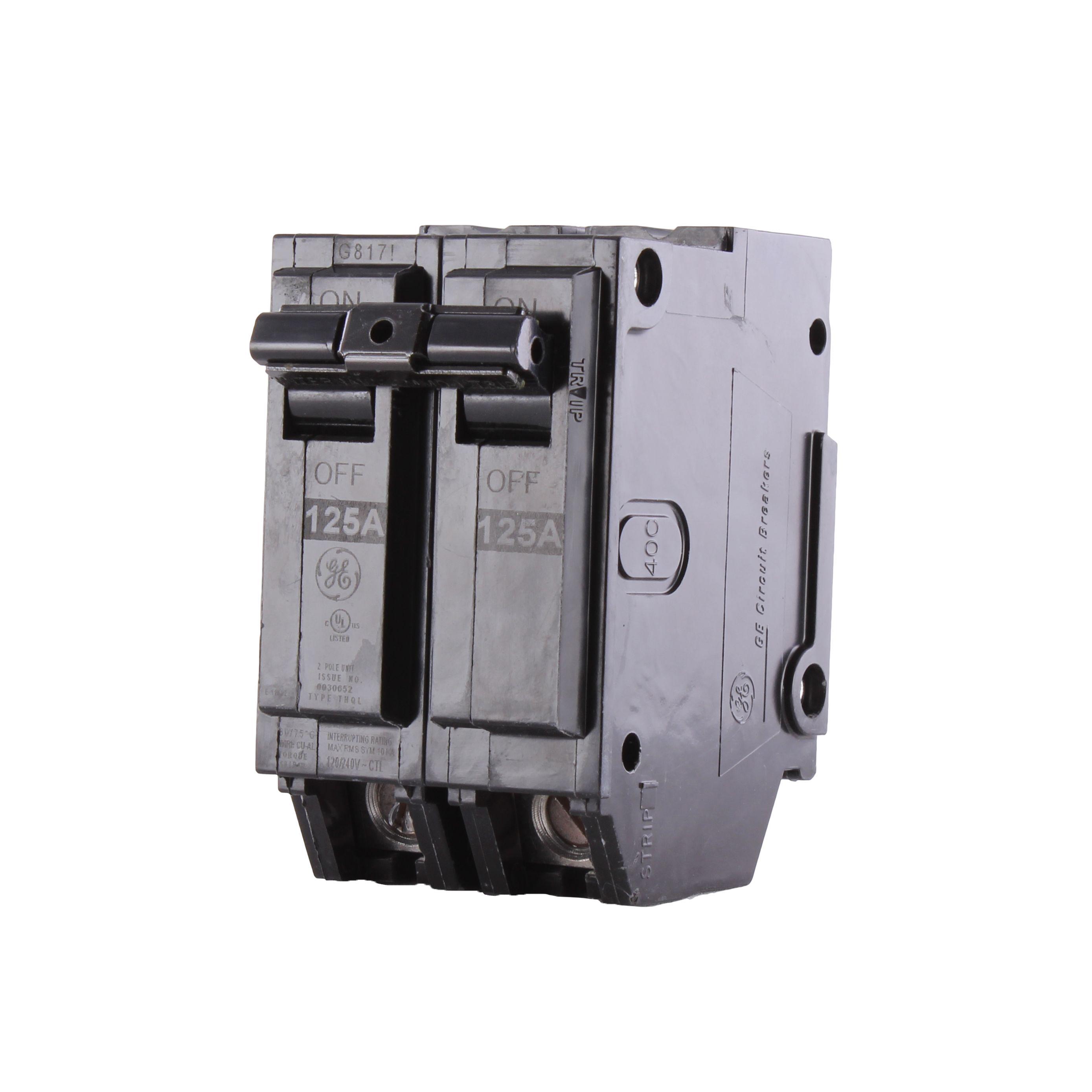

THQL21125 Type THQL Compact Molded Case Circuit Breaker, GE Q-Line®, 120/240 VAC, 125 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic/LI Trip
Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
GE Q-Line® Molded Case Circuit Breaker, Type THQL Compact, 120/240 VAC, 125 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Non-Interchangeable Thermal Magnetic/LI Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 2 to 2/0 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions, Plastic
| Actuator Type | : | Pivot/Toggle Handle |
| Connection Type | : | Load Lug |
| Dimensions | : | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Frame | : | Q-Line |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Plastic |
| Mounting Type | : | Plug-In |
| Phase | : | 1 |
| Temperature Rating | : | 10 to 50 deg C |
| Type | : | Type THQL Compact |
| Wire Size | : | 2 to 2/0 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 125 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | Non-Interchangeable Thermal Magnetic/LI |
