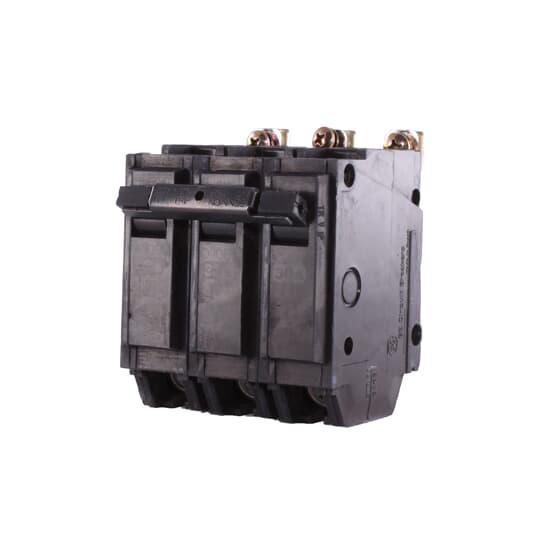

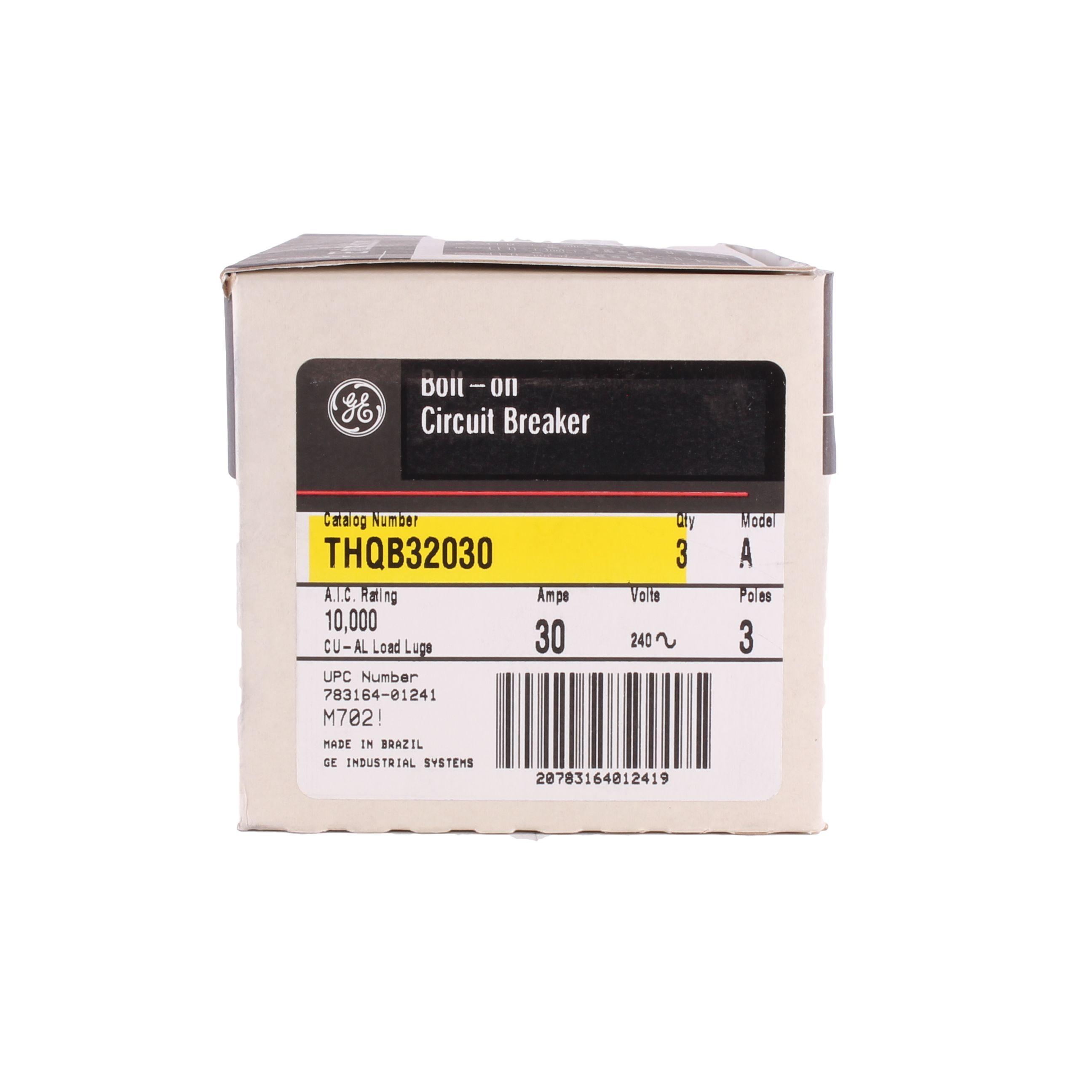

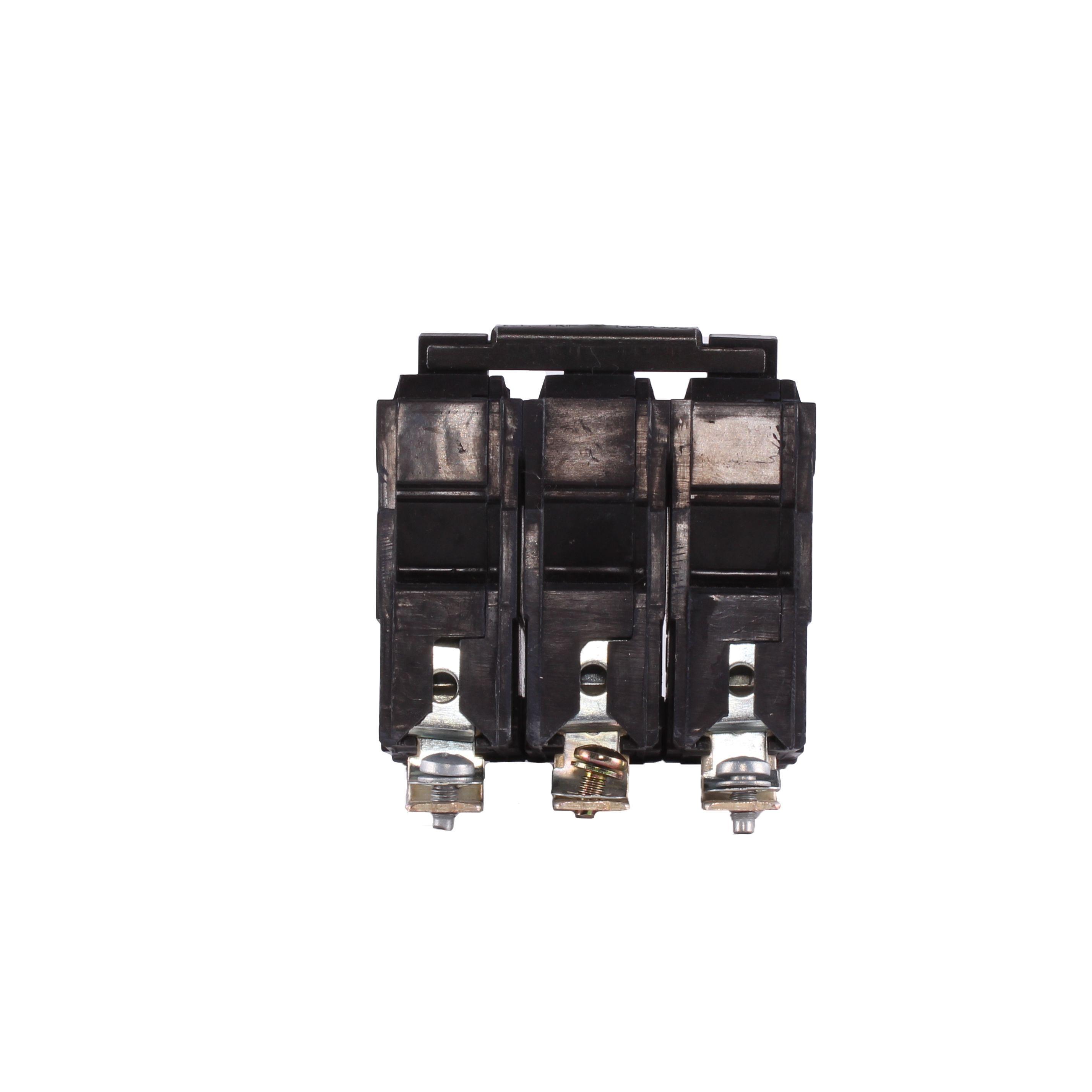

THQB32030 Miniature Circuit Breaker, GE Q-Line®, 120/240 VAC, 30 A, 10 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
| Branch Name | Available |
|---|
Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
GE Q-Line® Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, THQB Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 1 ph, 14 to 8 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 2-3/8 in L x 3 in W x 3-9/32 in H Dimensions
| Dimensions | : | 2-3/8 in L x 3 in W x 3-9/32 in H |
| Frame | : | THQB |
| Mounting Type | : | Bolted-On |
| Phase | : | 1 |
| Temperature Rating | : | 60 to 75 deg C |
| Wire Size | : | 14 to 8 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 30 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | LI/Non-Interchangeable Thermal Magnetic |
