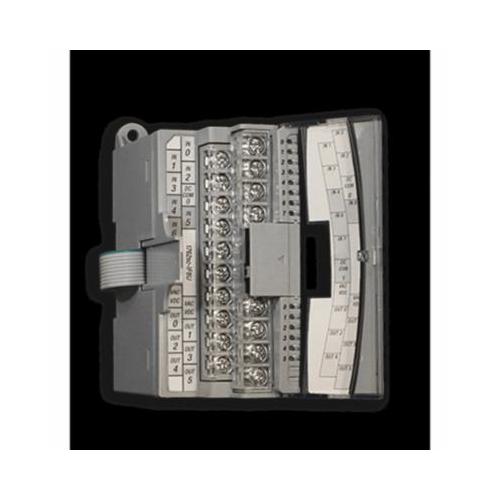

1762sc-IF8u 8-Channel Universal PLC Analog Input Module, MICRO800™, 32 Inputs, 16 bit Resolution
| Branch Name | Available |
|---|
The 1762sc-IF8U Input Module delivers universal analog to the MicroLogix™ platform. Maximize rack space without compromising price or performance by replacing dedicated analog input, thermocouple, and RTD modules with one universal module. The 1762sc-IF8U provides eight channels of voltage, current, and thermocouple, or up to four channels RTD/resistance. The 32 input types are individually programmable for each channel. This module comes with 24/7 TechConnect support from Rockwell Automation.
Spectrum Controls MICROLOGIX™ PLC Analog Input Module, 8-Channel Universal, 32 Inputs, 16 bit Resolution, 0 to 5/1 to 5 VAC, 0 to 20 mA/4 to 20 mA, 1.4 W Power, -4 to 140 deg F
| Amperage Rating | : | 0 to 20 mA/4 to 20 mA |
| Power Rating | : | 1.4 W |
| Temperature Rating | : | -4 to 140 deg F |
| Type | : | 8-Channel Universal |
| Voltage Rating | : | 0 to 5/1 to 5 VAC |
| Number of Inputs | : | 32 |
| Resolution | : | 16 bit |
