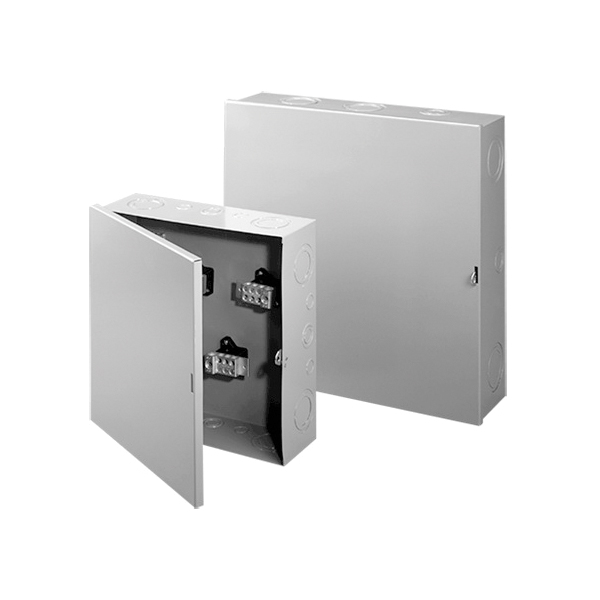

ASB223R Distribution Splitter Box, 225 A, 600 V, 3 Wire, 16 in H x 16 in W x 5 in D, NEMA 1 Enclosure, Steel, Grey
| Branch Name | Available |
|---|
This box splits feeder circuit conductors into multiple branch circuit conductors and comes with pre-installed terminal blocks for three- and four-wire power distribution systems.
Hoffman Splitter Box, Series: S90B, 600 VAC, 225 A, 3 Wires, NEMA/EEMAC Type 1/IP30, Steel, Gray Polyester Powder Painted, 16 in H x 16 in W x 5 in D
| Dimensions | : | 16 in H x 16 in W x 5 in D |
| Finish | : | Gray Polyester Powder Painted |
| Series | : | S90B |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 225 A |
| Number of Wires | : | 3 |
| Enclosure Type | : | NEMA/EEMAC Type 1/IP30 |
| Material | : | Steel |
