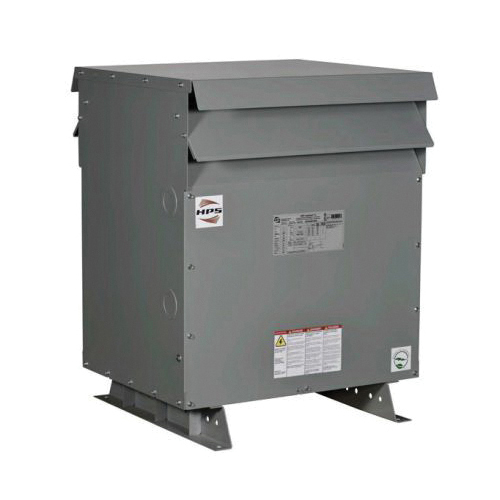

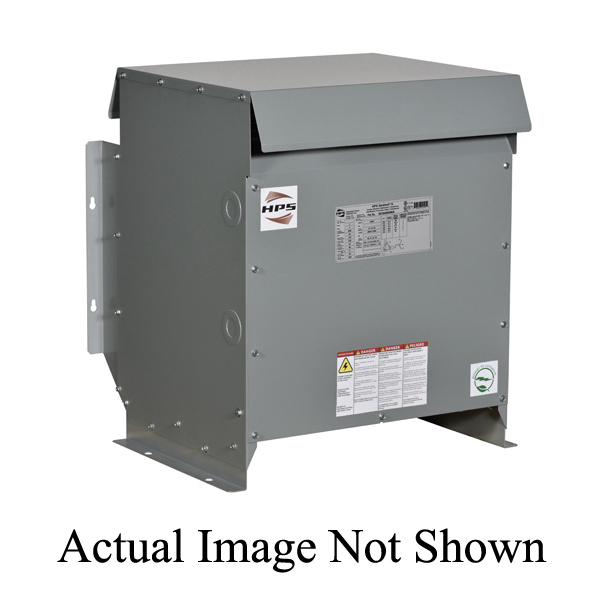

SG3L0150PE D16 3rd Generation Convection Cooled Energy Efficient Single to Dual Distribution Transformer, Sentinel® G, 600 VAC Primary, 120/240 VAC Secondary, 150 kVA, 60 Hz, 1 Phase
Sold as: Pack of EACH
HPS Sentinel® G Distribution Transformer, D16 3rd Generation Convection Cooled Energy Efficient Single to Dual, 600 VAC Primary, 120/240 VAC Secondary, 150 kVA, 60 Hz, 1 Phase, Pad, Floor Mount, 220 deg C, NEMA 3R, 30/40 deg C, 29-1/2 in L x 31-1/2 in W x 44-1/2 in H
| Connection Type | : | Pad |
| Dimensions | : | 29-1/2 in L x 31-1/2 in W x 44-1/2 in H |
| Enclosure Type | : | NEMA 3R |
| Insulation | : | 220 deg C |
| Mounting Type | : | Floor |
| Temperature Rating | : | 30/40 deg C |
| Type | : | D16 3rd Generation Convection Cooled Energy Efficient Single to Dual |
| Primary Voltage | : | 600 VAC |
| Secondary Voltage | : | 120/240 VAC |
| Power Rating | : | 150 kVA |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 |
