The SmartlockPro® dual function AFCI/GFCI receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro dual function AFCI/GFCI receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro dual function AFCI/GFCI receptacle offers a National electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.

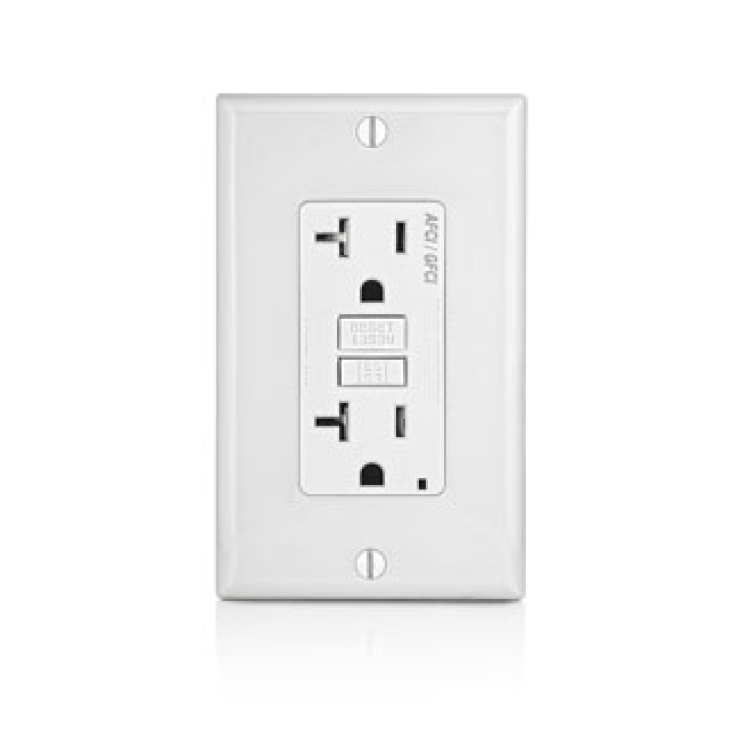

SmartlockPro® Decora® Plus AFCI/GFCI Receptacle, Dual Function, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.21 in H x 1.68 in W x 1.38 in D Dimensions

• Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
• Engineered to meet the latest UL standard for auto-monitoring (self-test)
• On initial power up, tests the GFCI circuit within 3 seconds
• Patented lockout action prevents reset if the device is damaged
• Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal for at a glance analysis
• Test and reset buttons are readily accessible on the face of the device
• Improved immunity to high frequency noise reduces nuisance tripping
• Superior resistance to electrical surges and over voltages enhancing reliability
• Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
• 1-piece T-design trip latch mechanism provides efficient operation
• Impact resistant thermoplastic cover and body for durability
• Expanded wiring options with nine back wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
• Compatible with all Decora® devices and wallplates for multi-gang installation option
• Tamper resistant to comply with the latest NEC® requirements for tamper resistant receptacles in residences and childcare facilities
