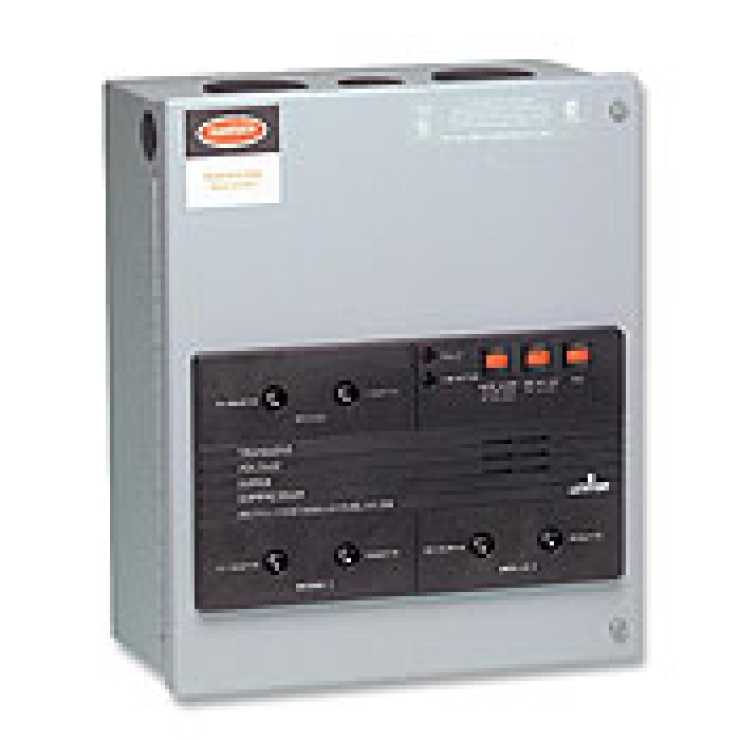

52480-DM3 52000 Surge Panel, 30 A, 480 VAC, 50/60 Hz, 3 Phase, 3 Poles
Sold as: Pack of EACH
Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Leviton® Surge Panel, Series: 52000, 30 A, 480 VAC, 50/60 Hz, 3, 3 Pole, 100 kA Short Circuit, 100 kA Peak Surge, Modes of Protection: L-L/L-N, LED/Noise Filtering Indicator, Environmental Conditions: -20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 12, Panel Mount, 14.19 in H x 10.31 in W x 5 in D, Steel
| Dimensions | : | 14.19 in H x 10.31 in W x 5 in D |
| Enclosure Type | : | NEMA 12 |
| Environmental Conditions | : | -20 to 40 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability |
| Indicator Type | : | LED/Noise Filtering |
| Material | : | Steel |
| Modes of Protection | : | L-L/L-N |
| Mounting Type | : | Panel |
| Peak Surge Current | : | 100 kA |
| Series | : | 52000 |
| Short Circuit Current Rating | : | 100 kA |
| Electrical Ratings | : | 30 A, 480 VAC |
| Frequency Rating | : | 50/60 Hz |
| Phase | : | 3 |
| Number of Poles | : | 3 |
