Non Stock

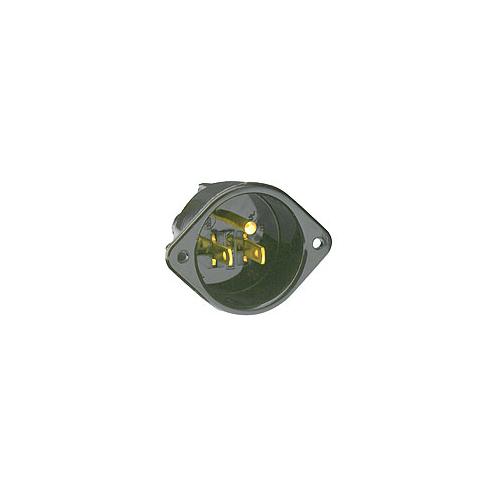

5239 Straight Blade Flanged Inlet Male Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wire, Commercial Grade, Back Wire, Grounding, Thermoplastic Nylon Strap, Black
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® commercial/industrial grade flanged wiring devices are available in 15 and 20 A versions and feature heavy duty construction for many years of service life.
Leviton®, 5239, Inlet Receptacle, Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, NEMA WD-1/WD-6 Enclosure, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Back Wire Terminal, Nylon, Black, 2.11 in H x 1.78 in D Dimensions
| Cord Diameter | : | 0.25 to 0.685 in |
| Dimensions | : | 2.11 in H x 1.78 in D |
| Enclosure | : | NEMA WD-1/WD-6 |
| Grade | : | Commercial/Industrial |
| Material | : | Nylon |
| NEMA Rating | : | NEMA 5-15P |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wire |
| Type | : | Grounding |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black |
