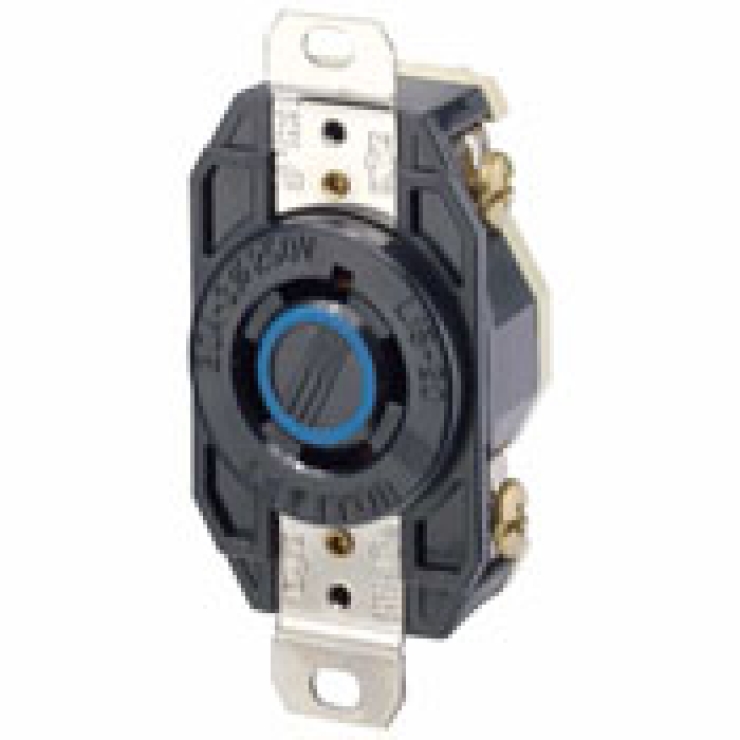

2420 Locking Female Single Receptacle, 250 VAC, 20 A, 3 Pole, 4 Wire, Industrial Grade, Flush Mount, Grounding, L15-20R, Black
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Leviton®, 2420, Locking Receptacle, 3-Phase Y Grounding, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, NEMA L15-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
| Dimensions | : | 3.63 in H x 1.69 in W x 1.31 in D |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Polybutylene Terephthalate |
| NEMA Rating | : | NEMA L15-20R |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back/Side Wire |
| Type | : | 3-Phase Y Grounding |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black |
