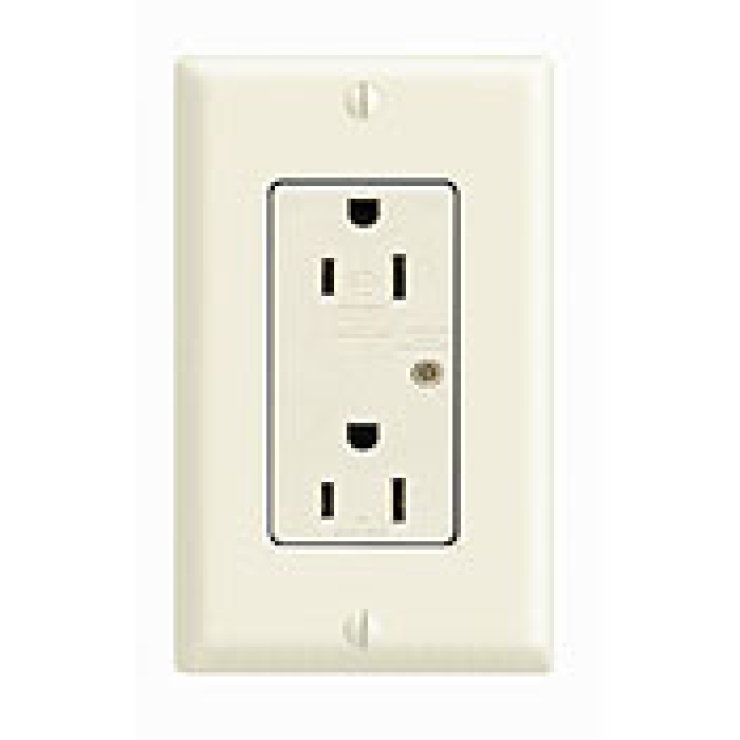

5280 Decora Plus Straight Blade Surge Protective Female Duplex Receptacle with Indicator Light, 125 VAC, 15 A, 2 Pole, 3 Wire, Commercial Specification Grade, Back or Side Wire, Self Grounding, 5-15R, Brown
Sold as: Pack of EACH
Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Leviton®, 5280, Straight Blade Surge Protective Receptacle, Type 3 2-Pole 3-Wire Self-Grounding Tamper Resistant, 125 VAC, 15 A, 50/60 Hz Frequency, 5 kA Short Circuit, Duplex Outlet, Indicators: Lights, Back/Side Wired Connection, Surface Mounting, 3.81 in H x 1.7 in W x 1.47 in D Size, -40 to 60 deg C Operating, Polycarbonate, Brown
| Color | : | Brown |
| Connection | : | Back/Side Wired |
| Material | : | Polycarbonate |
| Mounting | : | Surface |
| Operating Temperature | : | -40 to 60 deg C |
| Outlet | : | Duplex |
| Size | : | 3.81 in H x 1.7 in W x 1.47 in D |
| Type of Indicators | : | Lights |
| Type | : | Type 3 2-Pole 3-Wire Self-Grounding Tamper Resistant |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Frequency Rating | : | 50/60 Hz |
| Short Circuit Current Rating | : | 5 kA |
