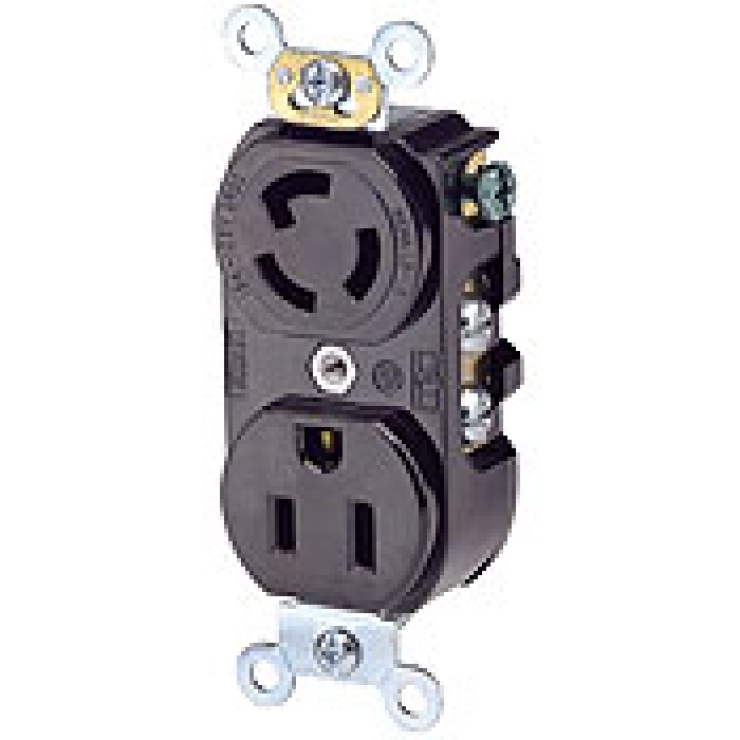

4794-1R Heavy Duty Combination Duplex Receptacle, 1 Locking Single Receptacle, 1 Straight Blade Single Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wire, Industrial Specification Grade, Smooth Face, Back or Side Wire, Neutral Returns, Self Grounding, 5-15R, L5-15R, Black
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Leviton®, 4794-1R, Receptacle Outlet, Duplex Grounding Locking, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 18 to 10 AWG Wire, NEMA L5-15R NEMA Rating, 46 in H x 1.44 in W x 0.97 in D Size, Back/Side Wire/Screw Connection, Surface Mounting, Industrial Grade, Thermoplastic, Black, Environmental Conditions: -40 to 60 deg C Operating Temperature
| Connection | : | Back/Side Wire/Screw |
| Environmental Conditions | : | -40 to 60 deg C Operating Temperature |
| Grade | : | Industrial |
| Horsepower | : | 1/2 hp |
| Material | : | Thermoplastic |
| Mounting | : | Surface |
| NEMA Rating | : | NEMA L5-15R |
| Size | : | 46 in H x 1.44 in W x 0.97 in D |
| Type | : | Duplex Grounding Locking |
| Wire Size | : | 18 to 10 AWG |
| Wiring Method | : | Back/Side Wired |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black |
