Non Stock

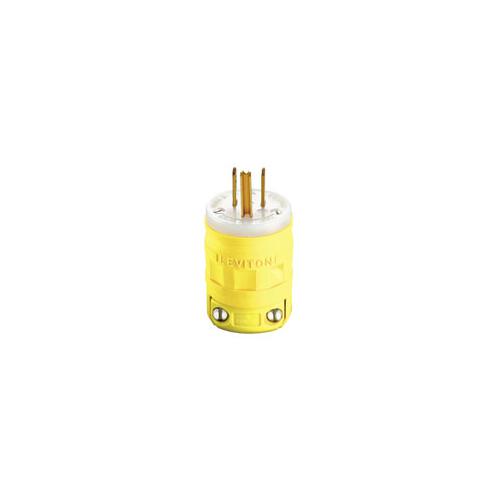

1447 Cable Mount Straight Blade Male Plug, Dustguard®, 125 VAC, 15 A, 2 Pole, 3 Wire, Industrial Grade, Grounding, 0.240 to 0.655 DIA Cord Range, 5-15P, Yellow
Sold as: Pack of EACH
Dustguard® plugs and connectors feature resistance to the damaging effects of dirt, dust, metal filings and other airborne particulate matter that can seriously degrade electrical performance. They share many of the superior design features of Wetguard® plugs and connectors, offering a reliable source of electrical power where extended mechanical and electrical life are specified but moisture resistance is not required.
Leviton® 1447 Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, IP44 Enclosure, 0.375 to 0.655 in Diameter Cord, -40 to 60 deg C, TPV, Yellow, 1.54 in Dia x 34 in H Dimensions
| Cord Diameter | : | 0.375 to 0.655 in |
| Dimensions | : | 1.54 in Dia x 34 in H |
| Enclosure | : | IP44 |
| Grade | : | Industrial |
| Material | : | TPV |
| NEMA Rating | : | NEMA 5-15P |
| Temperature Rating | : | -40 to 60 deg C |
| Type | : | Cable Mount Grounding |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
