Non Stock

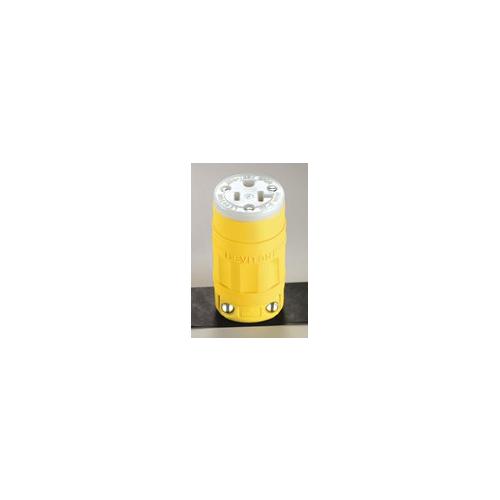

1533 Cable Mount Straight Blade Female Connector Body, Dustguard®, 125 VAC, 20 A, 2 Pole, 3 Wire, Grounding, 0.375 to 0.655 Dia Cord Range, 5-20R, Yellow
Sold as: Pack of EACH
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Leviton®, 1533, Straight Blade Connector, Cable Mount Grounding Severe Duty, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, IP44 Enclosure, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 1.54 in Dia x 3 in H Dimensions
| Cord Diameter | : | 0.25 to 0.685 in |
| Dimensions | : | 1.54 in Dia x 3 in H |
| Enclosure | : | IP44 |
| Grade | : | Industrial |
| Material | : | TPV |
| NEMA Rating | : | NEMA 5-20R |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Type | : | Cable Mount Grounding Severe Duty |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
