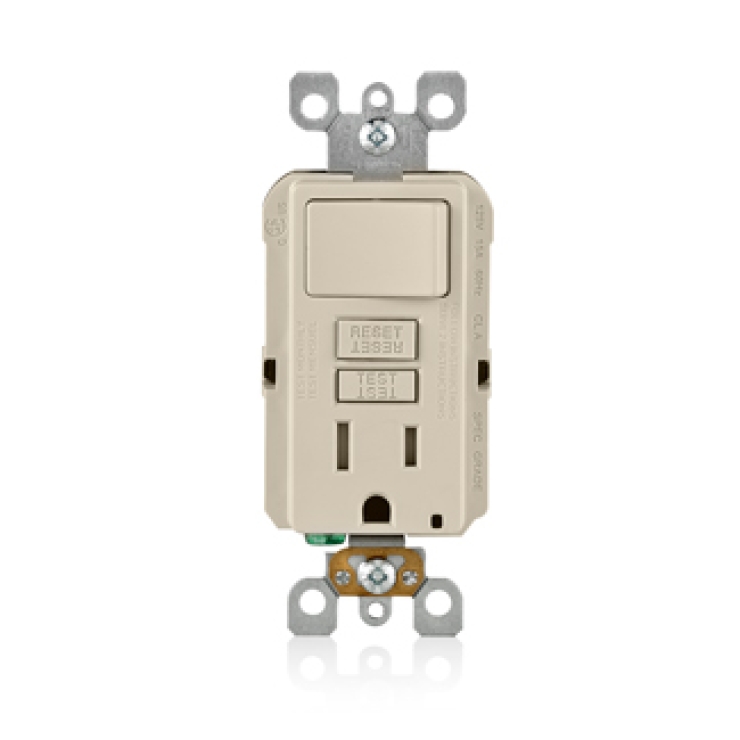

GFSW1-T Combination Straight Blade Tamper Resistant Slim GFCI Single Receptacle and Rocker Switch with LED Indicator, SmartlockPro®, Single Gang, 125 VAC, 15 A, 2 Pole, 3 Wire, 1800 W, Monochromatic, Back and Side Wired, Self Grounding Clip Included, Light Almond
Sold as: Pack of EACH
The SmartlockPro® self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® self-test GFCI is the smart choice in ground fault circuit interrupter protection.
SmartlockPro® Combination Switch/Receptacle, GFCI, 15 A, 125 VAC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, NEMA 5-15R Enclosure, Wall Mounting, Self-Grounding Grounding Style, Screw Terminal, 1250 VAC Dielectric strength, Polycarbonate/Thermoplastic, Light Almond, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
| Color | : | Light Almond |
| Dielectric Strength | : | 1250 VAC |
| Dimensions | : | 4.21 in H x 1.69 in W x 1.32 in D |
| Enclosure | : | NEMA 5-15R |
| Grounding Style | : | Self-Grounding |
| Material | : | Polycarbonate/Thermoplastic |
| Mounting | : | Wall |
| Terminal Type | : | Screw |
| Type | : | GFCI |
| Electrical Ratings | : | 15 A, 125 VAC |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Wire Size | : | 14 to 10 AWG |
