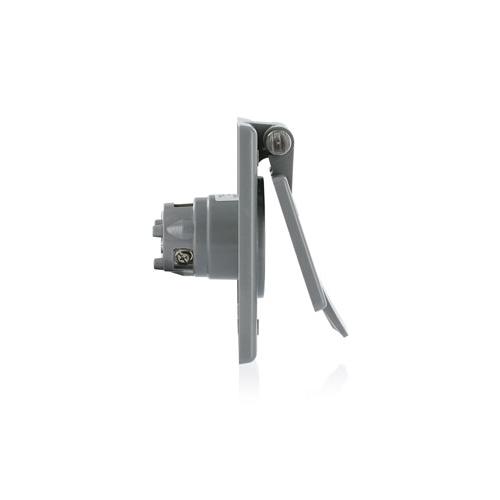

5279-CWP Straight Blade Female Power Outlet Receptacle Assembly, 125 VAC, 15 A, 2 Pole, 3 Wire, Industrial Grade, Grounding, Standard Wire Wells, Nylon Strap, 5-15R, Glass Filled Thermoplastic Nylon, Grey
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® straight blade power outlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.
Leviton®, 5279-CWP, Outlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 60 deg C, Standard Wire Well Terminal, Glass Filled Thermoplastic, Gray, 4.56 in H x 2.84 in W x 2.82 in D Dimensions
| Dimensions | : | 4.56 in H x 2.84 in W x 2.82 in D |
| Grade | : | Industrial |
| Horsepower | : | 1/2 hp |
| Material | : | Glass Filled Thermoplastic |
| NEMA Rating | : | NEMA 5-15R |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Standard Wire Well |
| Type | : | Grounding |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Gray |
