The SmartlockPro® outlet branch circuit (OBC) combination AFCI/Switch offers advanced technology to help protect against electrical fires resulting from arc-faults plus the convenience of a single pole switch to control the lights. This combination is ideal for kitchens, family rooms, bedrooms, dining rooms and hallways. The AFCI switch may be used for new circuits or modifications to existing circuits where a switch is the first outlet on a branch circuit. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the homes electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the homes electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code in many areas of the home.

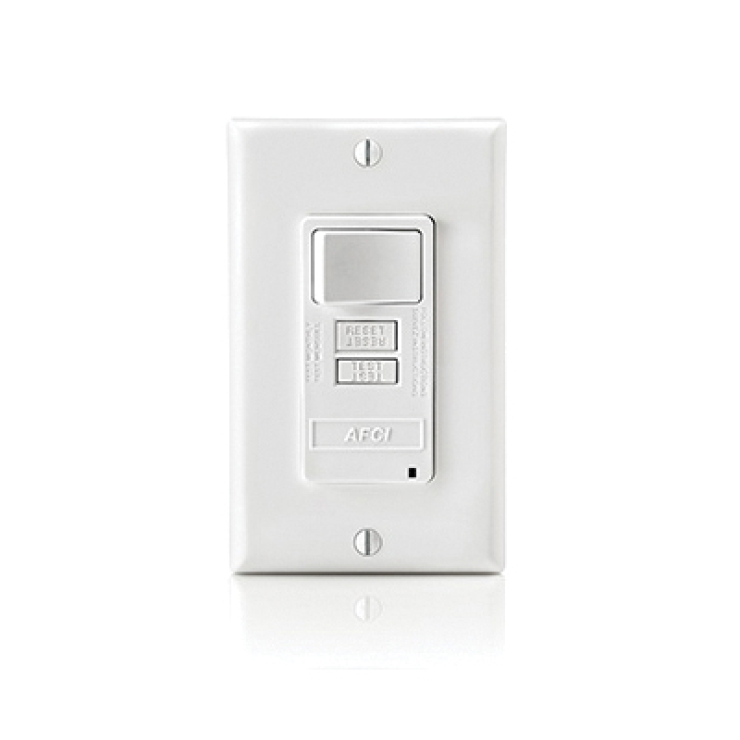

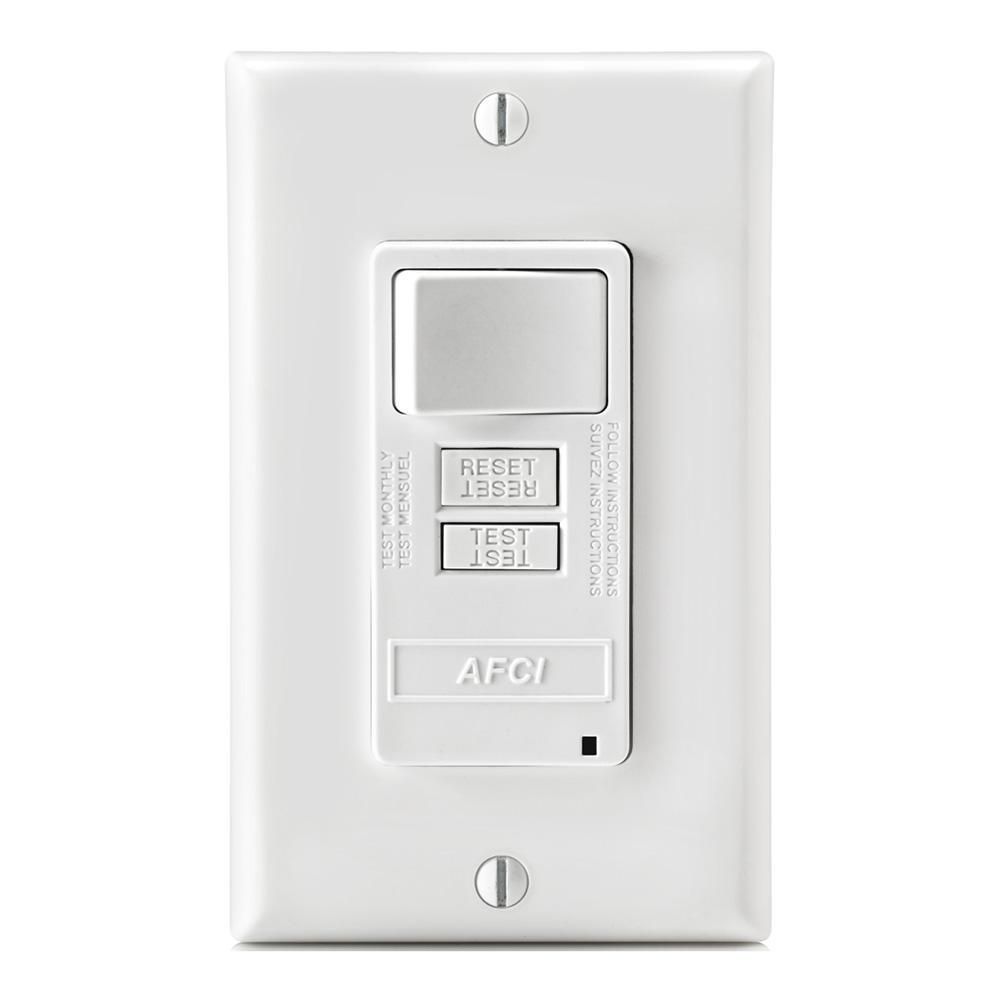

Leviton®, AFSW1-W, Combination Afci/Switch, Duplex Monochromatic, Series: AFSW1, 125 VAC, 15 A, 1 hp, 3-Wire Electrical Rating, 2 Pole, Back/Side Wired Interface, NEMA 5-15R Enclosure, 4.21 in H x 1.68 in W Size, Environmental Conditions: -35 to 66 deg C Operating Temperature, Polycarbonate, White

• Device design reduces nuisance tripping
• Compatible with all Decora® devices and wallplates
• Automatically tests the AFCI every time the reset button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly
• By blocking reset of the AFCI if protection has been compromised, the SmartlockPro® OBC AFCI reduces the possibility of end users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
• A line load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices
• A green LED indicator on the AFCIs face also illuminates to alert the installer to a line load wiring reversal when the device is in the tripped state
• TR symbol indicates the devices compliance with the latest NEC requirements for tamper resistant receptacles in residences and childcare facilities
• Impact resistant thermoplastic cover and body
• Use of TEST and reset buttons is similar to traditional GFCI receptacles of which consumers have become familiar with, this translates into greater acceptance of the technology and a more user-friendly platform
• Terminals allow for easy wiring options - back and side wire capable
• Rated V-2 per UL94 flammability, self-grounding
• Withstands 1250 VAC per UL 1699A
• Brass-hot, green-ground, silver-neutral terminal ID
• Self-grounded, 14 to 10 AWG terminal accommodation
• Max 30 deg C after 250 cycles overload at 200% rated current temperature rise
• Superior resistance to electrical surges and over-voltages
• Brass clamp, thermoplastic face, plated-steel grounding and terminal screws, zinc-plated steel yoke, galvanized steel strap
• Ratings are permanently marked on device
