Non Stock

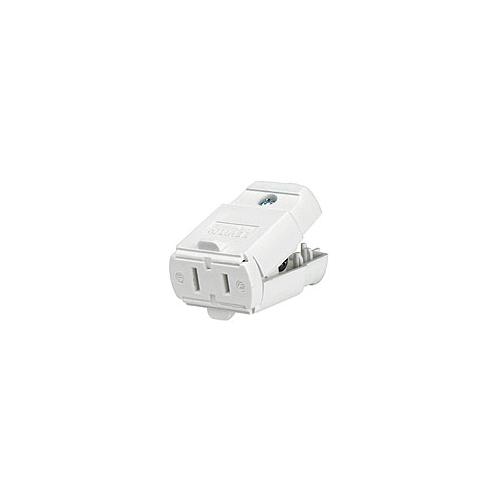

102-WP Cable Mount Straight Blade Female Connector Body, 125 VAC, 15 A, 2 Pole, 2 Wire, Residential Grade, Polarized, Non-Grounding, 1-15R, White
Sold as: Pack of EACH
Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Leviton®, 102-WP, Straight Blade Connector, Cable Mount Light Duty Non-Grounding Polarized, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15R/1-15P NEMA Rating, Residential Grade, 1/4 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic, White, 2.22 in H x 1.38 in W x 0.81 in D Dimensions
| Cord Diameter | : | 1/4 in |
| Dimensions | : | 2.22 in H x 1.38 in W x 0.81 in D |
| Grade | : | Residential |
| Material | : | Thermoplastic |
| NEMA Rating | : | NEMA 1-15R/1-15P |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Type | : | Cable Mount Light Duty Non-Grounding Polarized |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 2 |
| Color | : | White |
