Stock

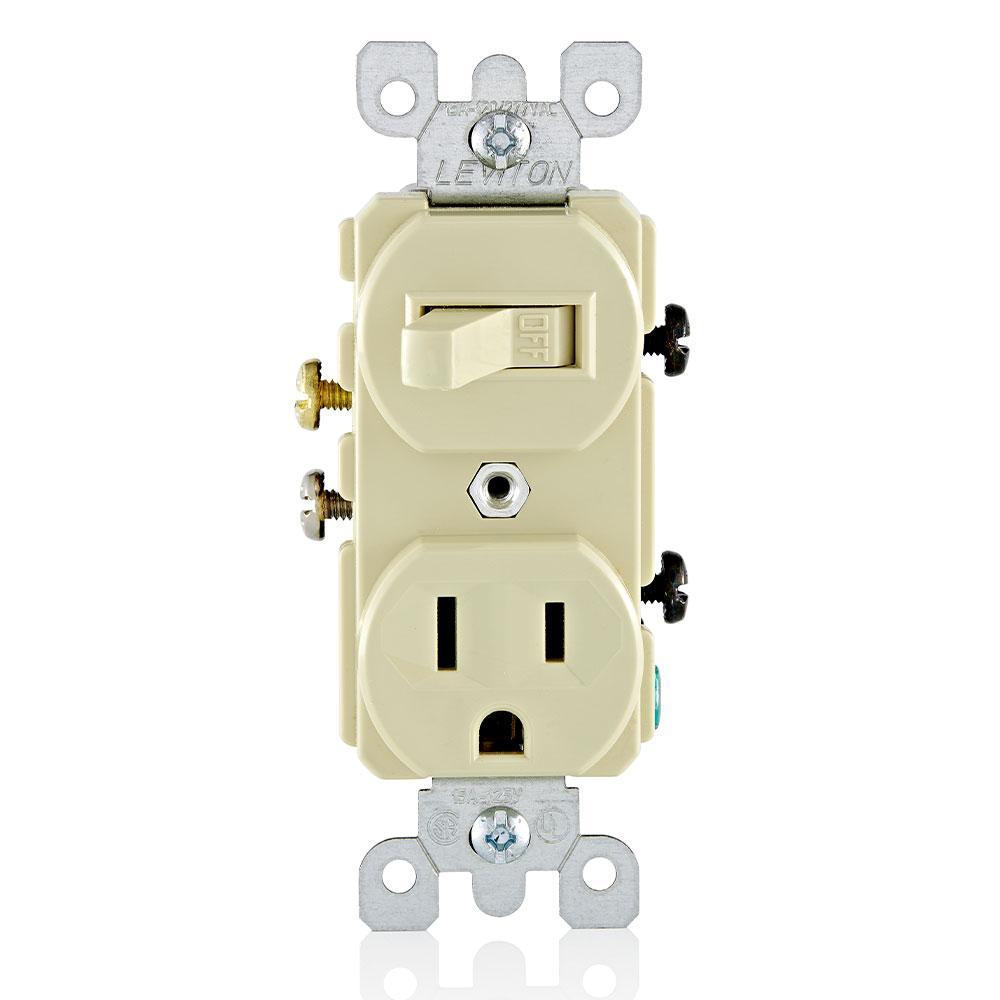

5225-W Duplex Style Combination Switch and Single Receptacle, 15 A, 120 VAC, Single Pole Toggle Switch, and 2 Pole, 3 Wire, 125V, 15 A Outlet, Commercial Grade, Side Wire, Grounding, 5-15R, White
| Branch Name | Available |
|---|
Sold as: Pack of EACH
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with 2-switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper-resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2 years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Leviton® Combination Switch, 1-Way Duplex Outlet, 15 A, 120/125 VAC Electrical Rating, 1 Pole, 14 to 12 AWG Wire, NEMA 5-15R Enclosure, Wall/Surface Mounting, Grounded Grounding Style, Commercial Grade, Side Wire/Screw Terminal, 1.5 kV Dielectric Strength, Steel/Thermoplastic, White, 4.2 in H x 1.62 in W x 16 in D
| Color | : | White |
| Dielectric Strength | : | 1.5 kV |
| Dimensions | : | 4.2 in H x 1.62 in W x 16 in D |
| Enclosure | : | NEMA 5-15R |
| Grade | : | Commercial |
| Grounding Style | : | Grounded |
| Material | : | Steel/Thermoplastic |
| Mounting | : | Wall/Surface |
| Terminal Type | : | Side Wire/Screw |
| Type | : | 1-Way Duplex Outlet |
| Electrical Ratings | : | 15 A, 120/125 VAC |
| Number of Poles | : | 1 |
| Wire Size | : | 14 to 12 AWG |
