Stock

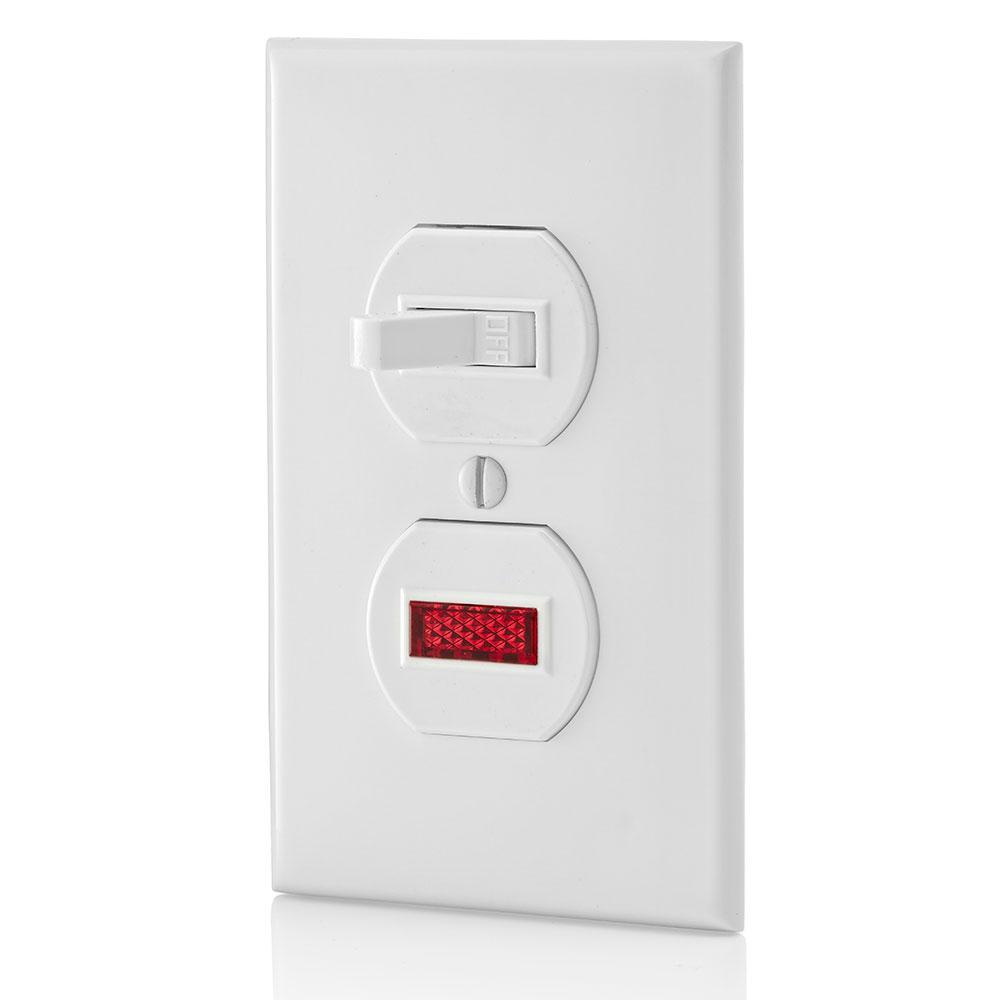

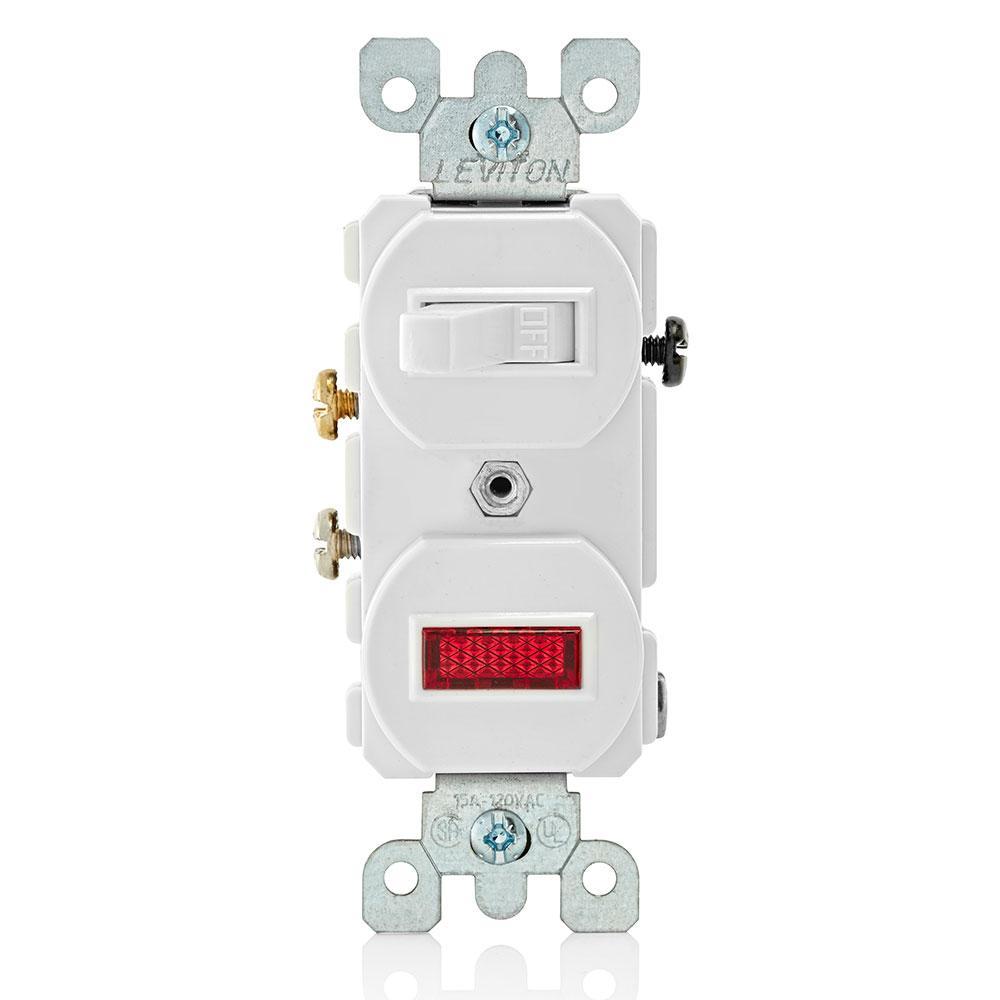

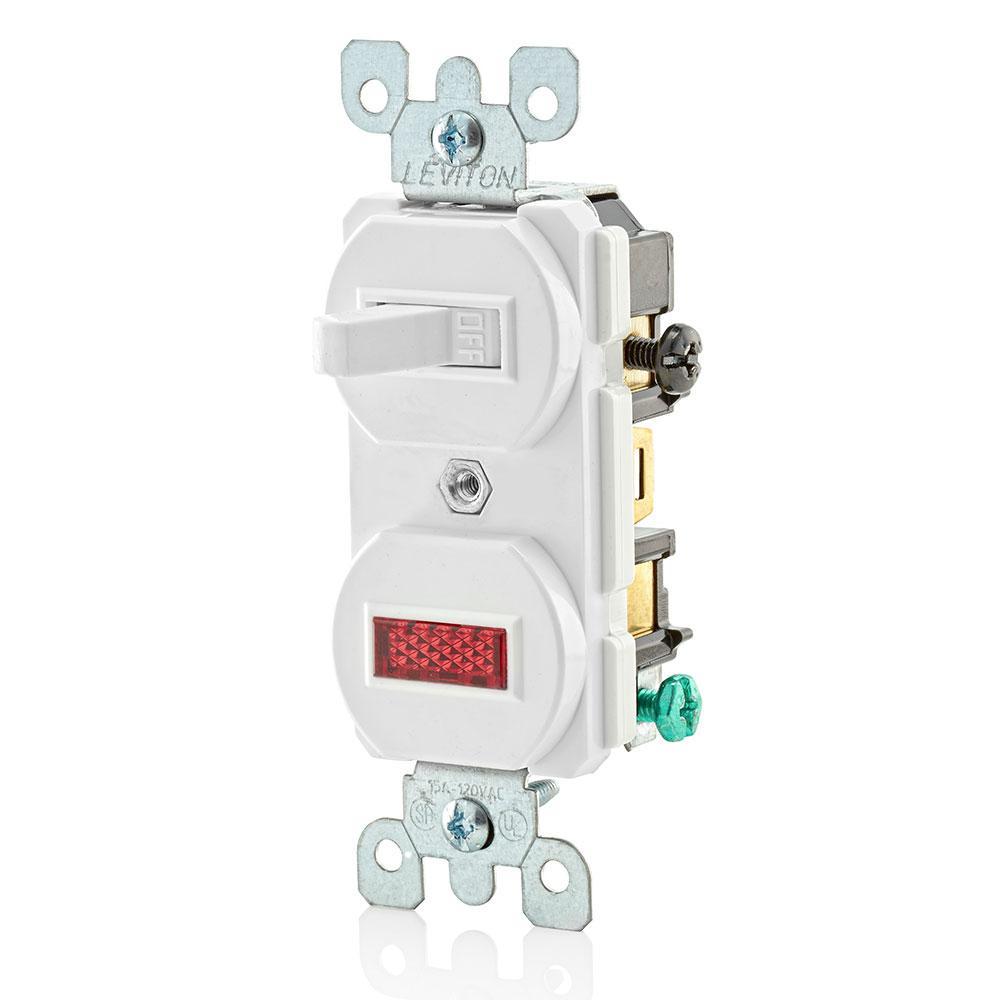

5226-W Duplex Style Combination Toggle Switch and Neon Pilot Light, 15 A, 120 VAC, Single Pole, Commercial Grade, Side Wire, Non-Grounding, White
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® combination devices offer pleasing, practical designs that fit standard wallboxes switch/switch, switch/receptacle and switch/pilot light combinations are Available. These devices come in a range of colors and are backed by a limited 2 years warranty.
Leviton® AC Combination Switch, 1-Way Duplex Style Non-Grounding, Series: Traditional, 120/277 VAC, 15 A, 1 Pole, Neon Pilot Lamp, 15 A at 120/125 VAC Contact, Toggle Action, NEMA 5-15R Enclosure, Wall/Surface Mounting, Side Wire Terminal, -40 to 120 deg C, Steel/Thermoplastic, White, 4.2 in H x 1.62 in W x 16 in D
| Action | : | Toggle |
| Color | : | White |
| Contact Rating | : | 15 A at 120/125 VAC |
| Dimensions | : | 4.2 in H x 1.62 in W x 16 in D |
| Enclosure | : | NEMA 5-15R |
| Lamp Type | : | Neon Pilot |
| Material | : | Steel/Thermoplastic |
| Mounting | : | Wall/Surface |
| Number of Poles | : | 1 |
| Series | : | Traditional |
| Temperature Rating | : | -40 to 120 deg C |
| Terminal Type | : | Side Wire |
| Type | : | 1-Way Duplex Style Non-Grounding |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 15 A |
