Non Stock

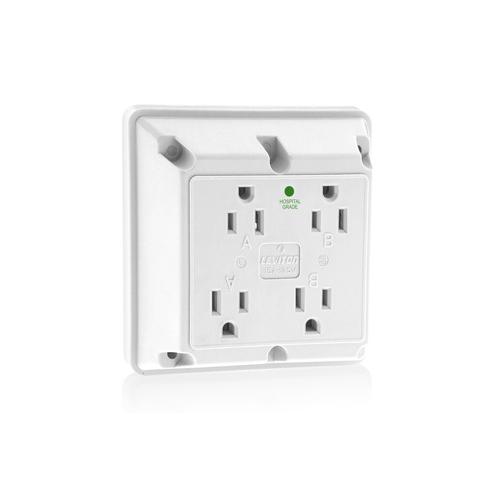

1254-HW Heavy Duty 4-in-1 Quadruplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wire, Hospital Grade, Side Wire, 5-15R, White
Sold as: Pack of EACH
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Leviton®, 1254-HW, Straight Blade Receptacle, 1-Phase 4-in-1 Extra Heavy Duty Grounding Quadruplex, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Screw Terminal, Nylon, White, 4.5 in L x 4.5 in W x 1.15 in D Dimensions
| Dimensions | : | 4.5 in L x 4.5 in W x 1.15 in D |
| Grade | : | Commercial |
| Horsepower | : | 1/2 hp |
| Material | : | Nylon |
| NEMA Rating | : | NEMA 5-15R |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase 4-in-1 Extra Heavy Duty Grounding Quadruplex |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
