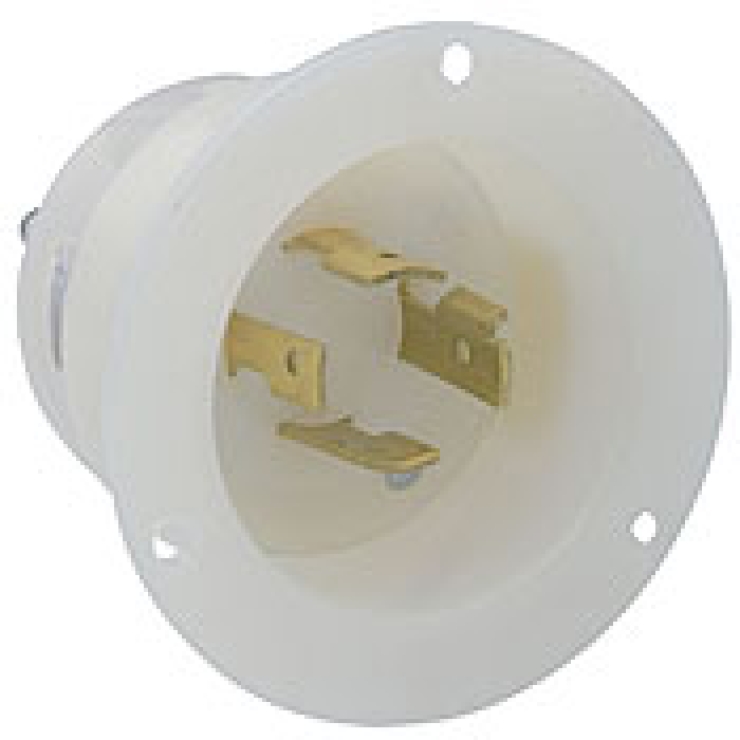

2415 Locking Flanged Inlet Male Receptacle, 125/250 VAC, 20 A, 3 Pole, 4 Wire, Industrial Grade, Grounding, L14-20P, White
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2415, Locking Flanged Inlet, Grounding Receptacle, 125/250 VAC, 20 A, 1 hp, 2 hp, 3 Pole, 4 Wires, NEMA L14-20P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions
| Dimensions | : | 2.5 in Dia x 1.78 in H |
| Grade | : | Industrial |
| Horsepower | : | 1 hp, 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | NEMA L14-20P |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wire |
| Type | : | Grounding Receptacle |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | White |
