Hammond® 1594RFIEBK

1594RFIEBK Conductive Electronic Enclosure, 4.2 in W x 2.1 in D x 6.6 in H, NEMA IP54, Plastic

  • MPN: 1594RFIEBK
  • UPC: 623980582306
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Hammond® 1594RFIEBK

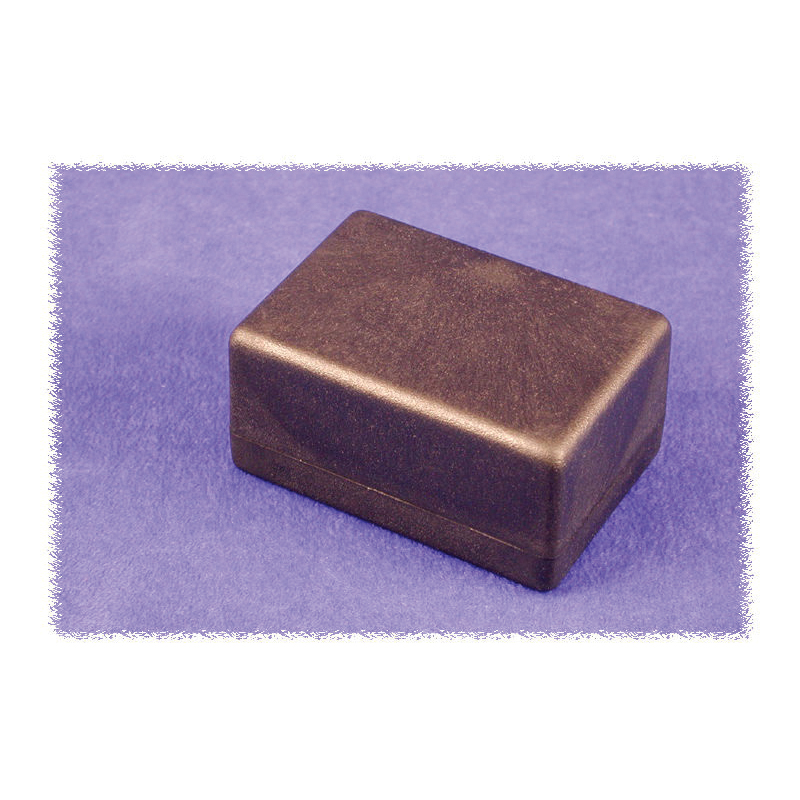

Hammond® Electronic Enclosure, Conductive, 4.2 in Width, 2.1 in Depth, 6.6 in Height, NEMA IP54, Wall Mount, Plastic, Matte Textured, Black

Color      :      Black
Finish      :      Matte Textured
Mounting Type      :      Wall
Type      :      Conductive
Width      :      4.2 in
Depth      :      2.1 in
NEMA Rating      :      NEMA IP54
Material      :      Plastic
  • Designed for EMI/RFI shielding applications - using conductive plastic (a compound of plastic and stainless steel fibers)
  • Thick wall design with an average wall THK of 0.13 in
  • Molded from a compound of stainless steel fibers and flame retardant ABS plastic (carries a UL flammability rating of 94V-0)
  • Countersunk lid is secured with four M3 x 0.5 x 0.71 in Philips machine screws threaded into integral brass bushings
  • Perfect for applications with repetitive assembly and disassembly are required
