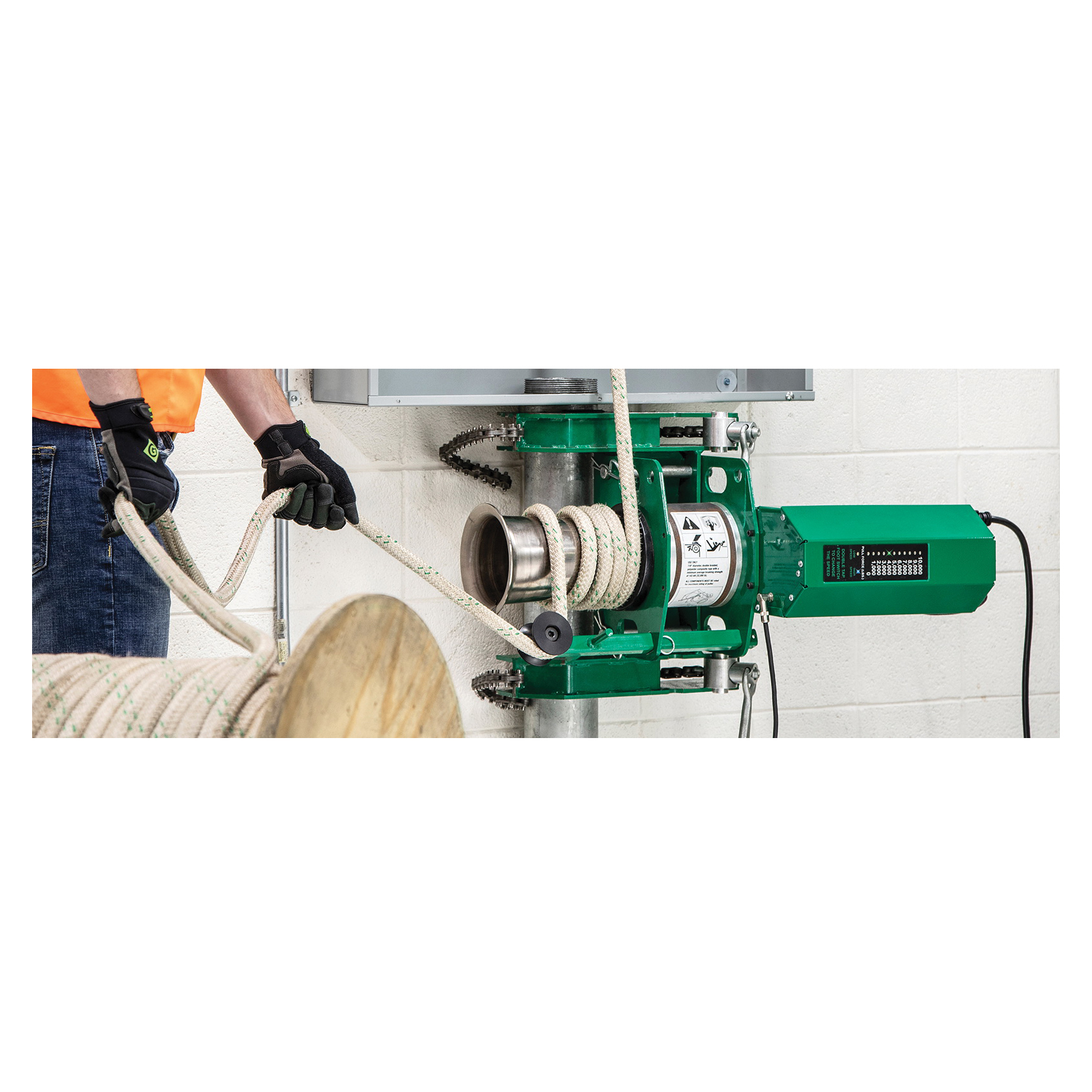

G10-MVB Electrical Heavy Duty Cable Puller Assembly With Mobile VersiBoom™ Mount, TUGGER™, 2-1/2 in, 3 in and 4 in Adapters, 8000 to 10000 lb Pulling, 7/8 in Dia Cable, 9/13.5/16.1/22.4 fpm Pulling
| Branch Name | Available |
|---|
2-Speed G Series TUGGER™ G10 is a one-stop-shop. Puller with Mobile VersiBoom™. The only UL listed 2-speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch. Use for cable pulls requiring high as well as low pulling loads. The no-load high speed is 22.4 fpm and is best suited for loads up to 4200 lb where the speed will be 16.1 fpm. The no-load low speed is 13.5 fpm and can be used on loads up to 8000 lb where the speed will be 9 fpm or a momentary peak capacity of 10000 lb. 2-speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 lb) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb. Easy control features for increased productivity. On-board force gauge provides visual communication of pulling force and speed changes.
Greenlee® TUGGER™ Cable Puller Assembly, Electrical Heavy Duty, Series: G Series, 8000 to 10000 lb Pulling, 2 Pulling Speeds, 9/13.5/16.1/22.4 fpm Pulling Speed, 7/8 in Diameter Cable, 100 lb Load, 120 VAC, 20 A, 11-1/2 in L x 30 in W x 13 in H Dimensions
| Amperage Rating | : | 20 A |
| Dimensions | : | 11-1/2 in L x 30 in W x 13 in H |
| Load Rating | : | 100 lb |
| Number of Pulling Speeds | : | 2 |
| Series | : | G Series |
| Type | : | Electrical Heavy Duty |
| Voltage Rating | : | 120 VAC |
| Bare Tool/Kit | : | Bare Tool |
| Pulling Capacity | : | 8000 to 10000 lb |
| Cable Diameter | : | 7/8 in |
| Pulling Speed | : | 9/13.5/16.1/22.4 fpm |
