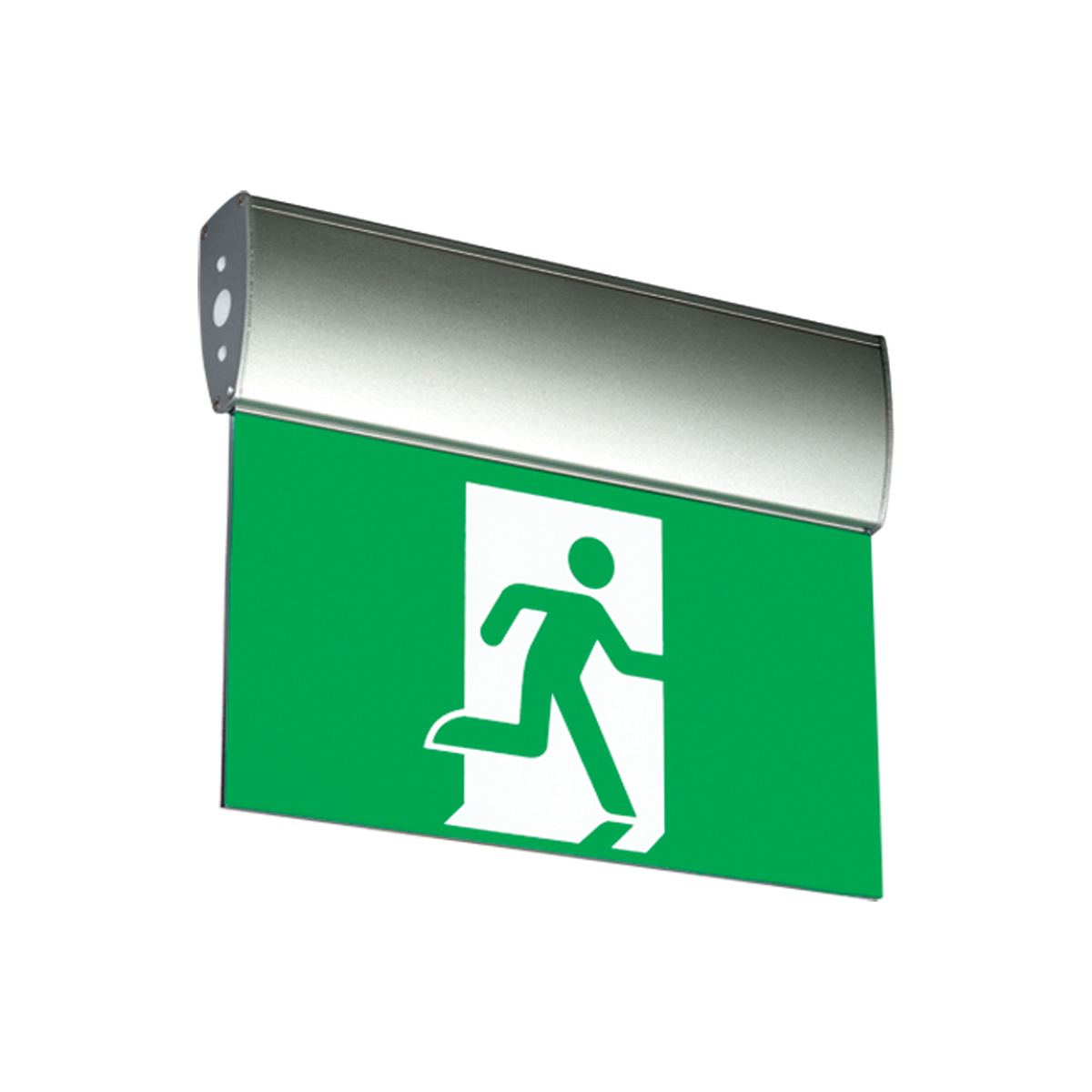

Lumacell® LAEATASP

LAEATASP LAE Series Double Face Pictogram Self-Powered Slim Profile Versatile Edge-Lit Exit Sign, LED Lamp, 4 W Fixture, 120 to 347 VAC, Smooth/Textured Aluminum Housing, On Legend

  • MPN: LAEATASP
  • UPC: 624616285547
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Lumacell® LAEATASP

Lumacell® Edge-Lit Exit Sign, Double Face Pictogram Self-Powered Slim Profile Versatile, Series: LAE Series, 120 to 347 VAC, 4 W Fixture, Legend: On, LED Lamp, White on Green Light, Surface Mounting, Ni-Cd Battery Power Source, Die Cast Aluminum Housing Material, Smooth/Textured Aluminum Housing Finish, 10-3/4 in H x 12-1/2 in W x 4-1/4 in D Dimensions

Dimensions      :      10-3/4 in H x 12-1/2 in W x 4-1/4 in D
Housing Material      :      Die Cast Aluminum
Light Color      :      White on Green
Mounting Type      :      Surface
Power Source      :      Ni-Cd Battery
Series      :      LAE Series
Type      :      Double Face Pictogram Self-Powered Slim Profile Versatile
Lamp Type      :      LED
Fixture Wattage      :      4 W
Voltage Rating      :      120 to 347 VAC
Housing Finish      :      Smooth/Textured Aluminum
Legend      :      On
  • With left/right arrow
  • Slim profile extruded aluminum housing
  • Universal mounting - wall, ceiling or end mounting
  • Click-to-open housing door allows easy access to the panel and electrical wiring
  • Acrylic panel with pictogram legend
  • Long-life white LED light source
  • Universal AC input 2-wire 120 to 347 VAC
  • Self-powered models provide minimum 120 min of emergency lighting
