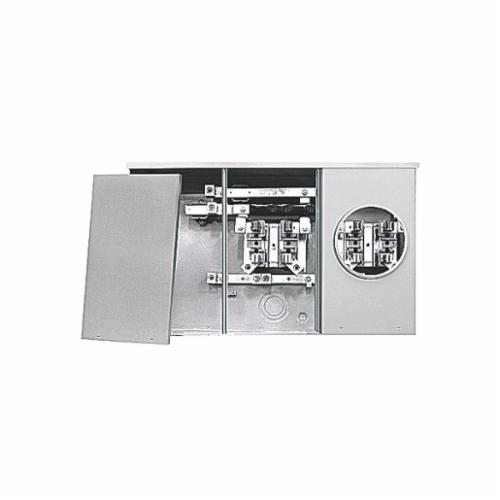

BDA2-V 2-Position Meter Socket With Blank Compartment, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
| Branch Name | Available |
|---|
Sold as: Pack of CARTON
Microlectric® Meter Socket, 2-Position, Series: BDA2-V, 600 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Plate, NEMA 3R, 15-5/8 in H x 26-3/16 in W x 5-1/4 in D
| Dimensions | : | 15-5/8 in H x 26-3/16 in W x 5-1/4 in D |
| Feed Type | : | Overhead/Underground |
| Hub Type | : | Plate |
| Number of Jaws | : | 4 |
| Series | : | BDA2-V |
| Type | : | 2-Position |
| Wire Size | : | 6 AWG to 250 kcmil |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 200 A |
| Phase | : | 1 |
| Enclosure Type | : | NEMA 3R |
