Non Stock

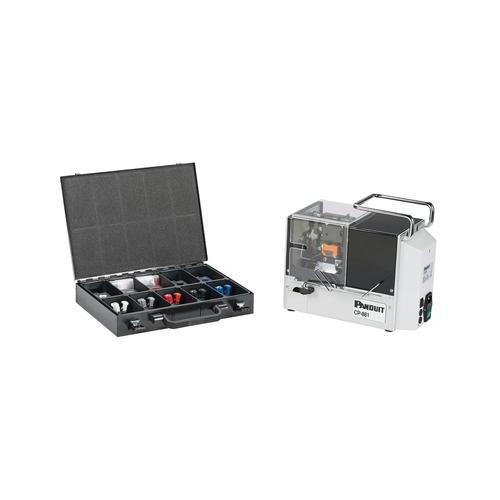

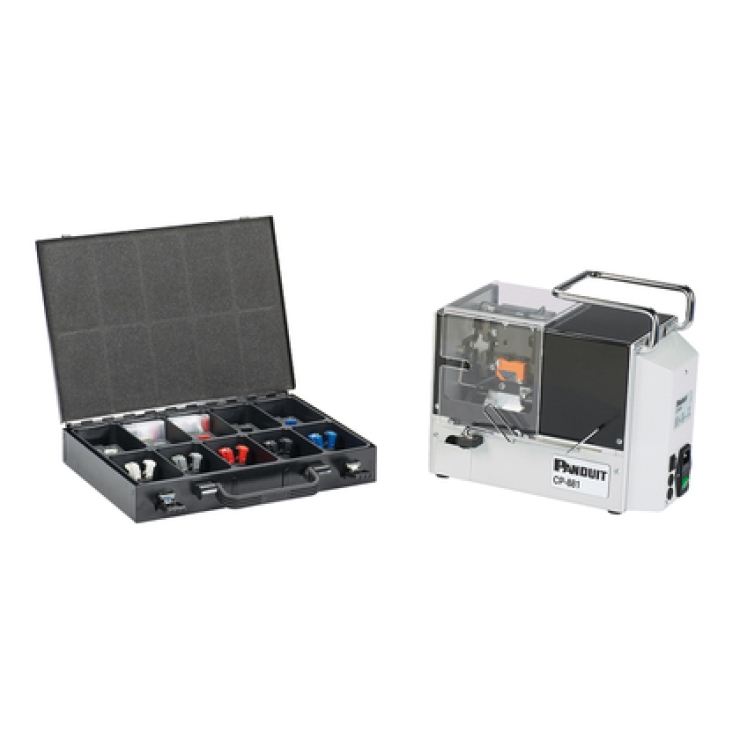

CP-881 Semi-Automated Reel Fed Ferrule Strip and Crimp Tool, 20 to 14 AWG Crimping
A semi-automated tool that provides a quick three step process (wire stripping, ferrule placement, and ferrule crimping) with a cycle time of 1.5 seconds. This tool is used with Panduit® continuously molded 20 to 14 AWG (0.5 to 2.5 sq mm) DIN ferrules on mini-reels of 500 to 5000 pieces for quality, medium to high volume terminations. Included with the tool are color coded die inserts that allow visual matching between parts and die sets for fast efficient change over and reduced mismatching. The tool is lightweight and has a built-in handle for easy movement of tool from workstation to workstation for maximum jobsite flexibility and productivity.
Panduit®, CP-881, Ferrule Strip and Crimp Tool, Tool/Kit: Bare Tool, Semi-Automated Reel Fed, Crimping Capacity: 20 to 14 AWG, 110/120 VAC, 12.6 in H x 11 in W x 6.5 in D Dimensions
| Dimensions | : | 12.6 in H x 11 in W x 6.5 in D |
| Type | : | Semi-Automated Reel Fed |
| Voltage Rating | : | 110/120 VAC |
| Tool/Kit | : | Bare Tool |
| Crimping Capacity | : | 20 to 14 AWG |
