Non Stock

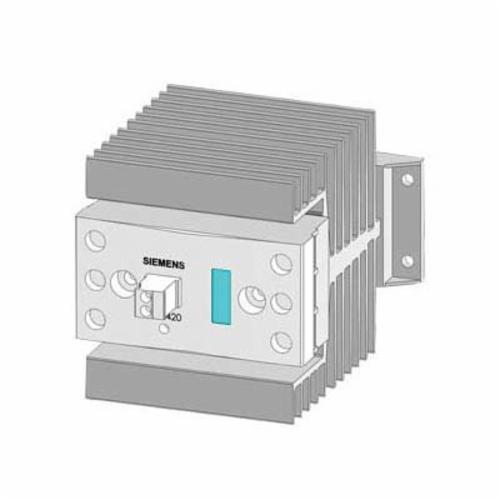

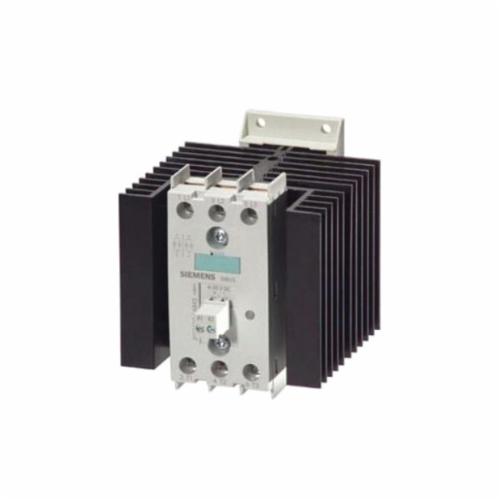

3RF2420-1AC45 Solid State Contactor, 48 to 600 VAC, 4 to 30 VDC V Coil, 20 A, 3NO Contact, 3 Poles
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Siemens Solid State Contactor, 48 to 600 VAC, 4 to 30 VDC Coil, 20 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Thread Connection, Threaded Terminal, IP20 Enclosure, -25 to 60 deg C Operating, DIN Rail Mounting, 100 mm H x 90 mm W x 112.5 mm D Dimensions
| Connection Type | : | Thread |

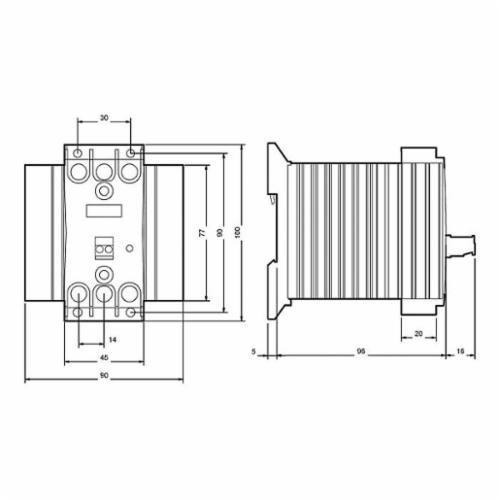

| Dimensions | : | 100 mm H x 90 mm W x 112.5 mm D |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Operating Temperature | : | -25 to 60 deg C |
| Terminal Type | : | Threaded |
| Coil Voltage | : | 48 to 600 VAC, 4 to 30 VDC |
| Maximum Load Current | : | 20 A |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
