Non Stock

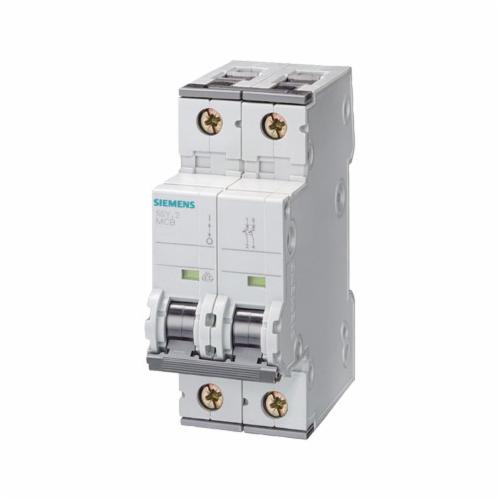

5SY4201-5 Miniature Supplementary Protector, 480 VAC, 1 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Siemens Sentron™ Supplementary Protector, Miniature, 480 VAC, 1 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 2 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
| Connection Type | : | Line/Load Side/Screw |

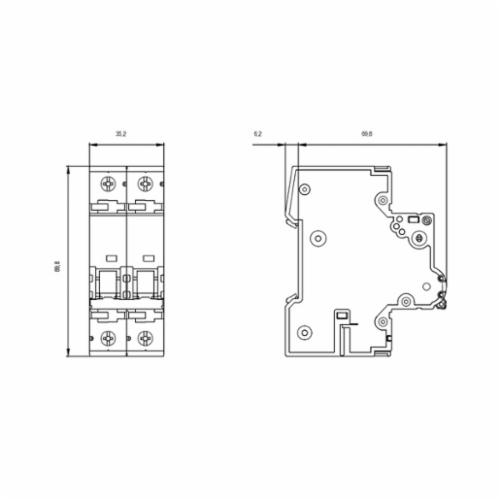

| Dimensions | : | 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type | : | IP20 |
| Frame | : | 5SY4 |
| Frequency Rating | : | 50 Hz |
| Mounting Type | : | DIN Rail |
| Temperature Rating | : | -25 to 45 deg C |
| Trip Range | : | 1.13 to 1.45 A |
| Type | : | Miniature |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 480 VAC |
| Amperage Rating | : | 1 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | Thermal/Magnetic |
