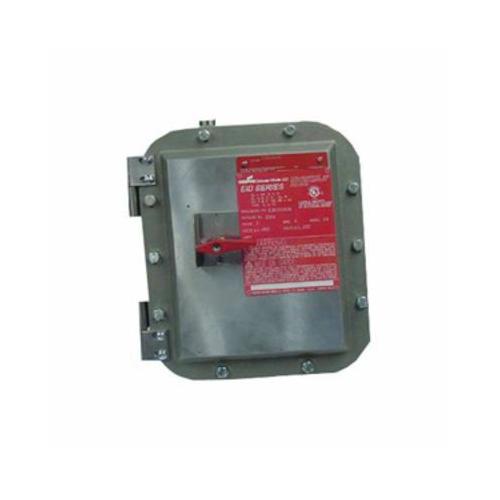

EIDAF3060 Explosionproof Fused Disconnect Switch, 240 to 600 VAC/250 VDC, 60 A, 30 hp at 480 VAC, 50 hp at 600 VAC, 10 hp at 250 VDC
Sold as: Pack of EACH
The EID disconnect switch provides an explosion proof disconnect with overload and circuit protection for hazardous area electrical systems. This disconnect solution incorporates EATON's Crouse-Hinds high integrity manufacturing standards for safety and reliability in a compact, space efficient NEMA 4X enclosure.
EATON Crouse-Hinds Disconnect Switch, Explosionproof Fused, Series: EID, 240 to 600 VAC/250 VDC, 60 A, 30 hp at 480 VAC, 50 hp at 600 VAC, 10 hp at 250 VDC, Rotary Handle Actuator, NEMA 3/3R/4/7/9 Enclosure, 14.67 in L x 12.67 in W x 10.02 in H, Copper-Free Aluminum, Natural
| Actuator Type | : | Rotary Handle |
| Dimensions | : | 14.67 in L x 12.67 in W x 10.02 in H |
| Enclosure Type | : | NEMA 3/3R/4/7/9 |
| Finish | : | Natural |
| Material | : | Copper-Free Aluminum |
| Series | : | EID |
| Type | : | Explosionproof Fused |
| Voltage Rating | : | 240 to 600 VAC/250 VDC |
| Amperage Rating | : | 60 A |
| Horsepower | : | 30 hp at 480 VAC, 50 hp at 600 VAC, 10 hp at 250 VDC |
