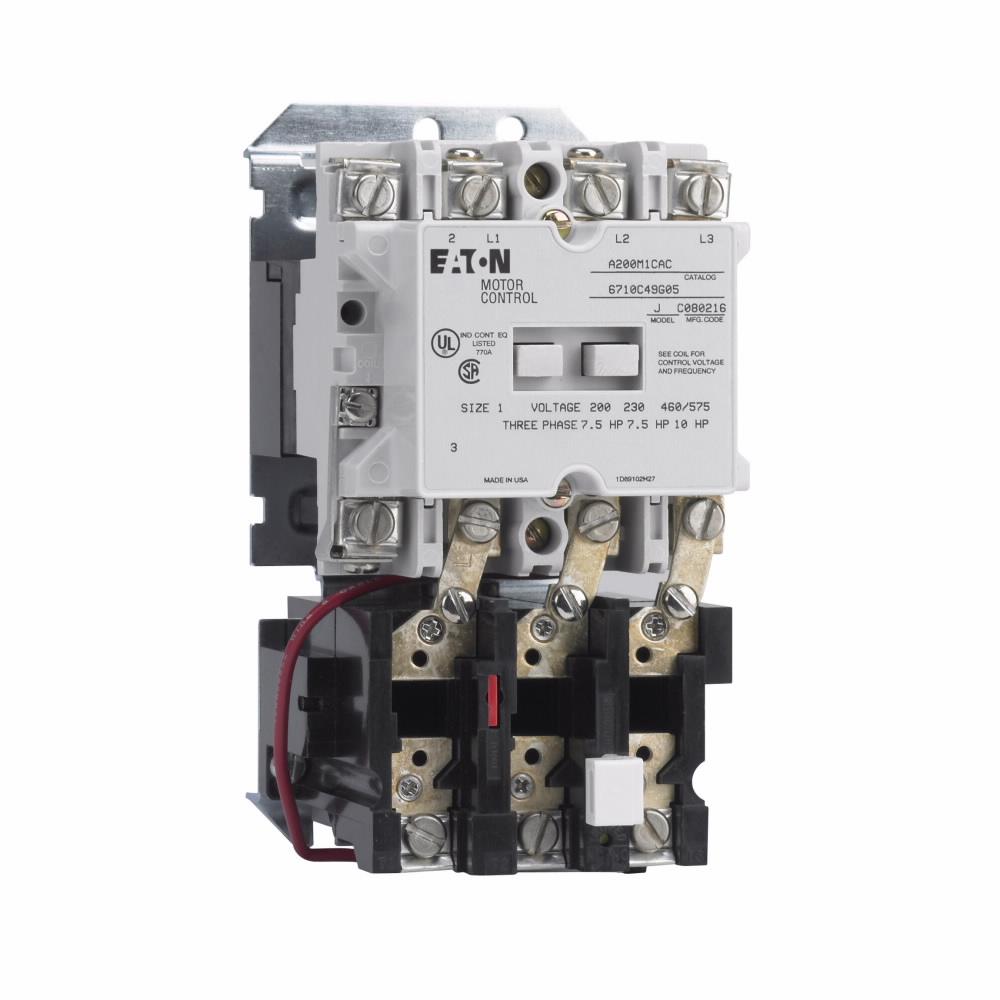

A200M1CAC Magnetic Non-Reversing Open NEMA Starter, 110/120 VAC V Coil, 3 Poles, NEMA 1 Enclosure
Sold as: Pack of EACH
All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON NEMA Starter, Magnetic Non-Reversing Open, Series: A200, 600 VAC, 27 A, 50/60 Hz Frequency, 10 hp Motor, 110/120 VAC Coil, 3 Pole, Screw Connection, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 1 Enclosure, -4 to 140 deg F Operating, 6.45 in H x 3.31 in W x 4.61 in D Dimensions
| Amperage Rating | : | 27 A |
| Auxiliary Contact Rating | : | 1NO-1NC |
| Connection Type | : | Screw |
| Dimensions | : | 6.45 in H x 3.31 in W x 4.61 in D |
| Frequency Rating | : | 50/60 Hz |
| Motor Power | : | 10 hp |
| Operating Temperature | : | -4 to 140 deg F |
| Overload Relay | : | Bi-Metal |
| Series | : | A200 |
| Voltage Rating | : | 600 VAC |
| Type | : | Magnetic Non-Reversing Open |
| Coil Voltage | : | 110/120 VAC |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA 1 |
