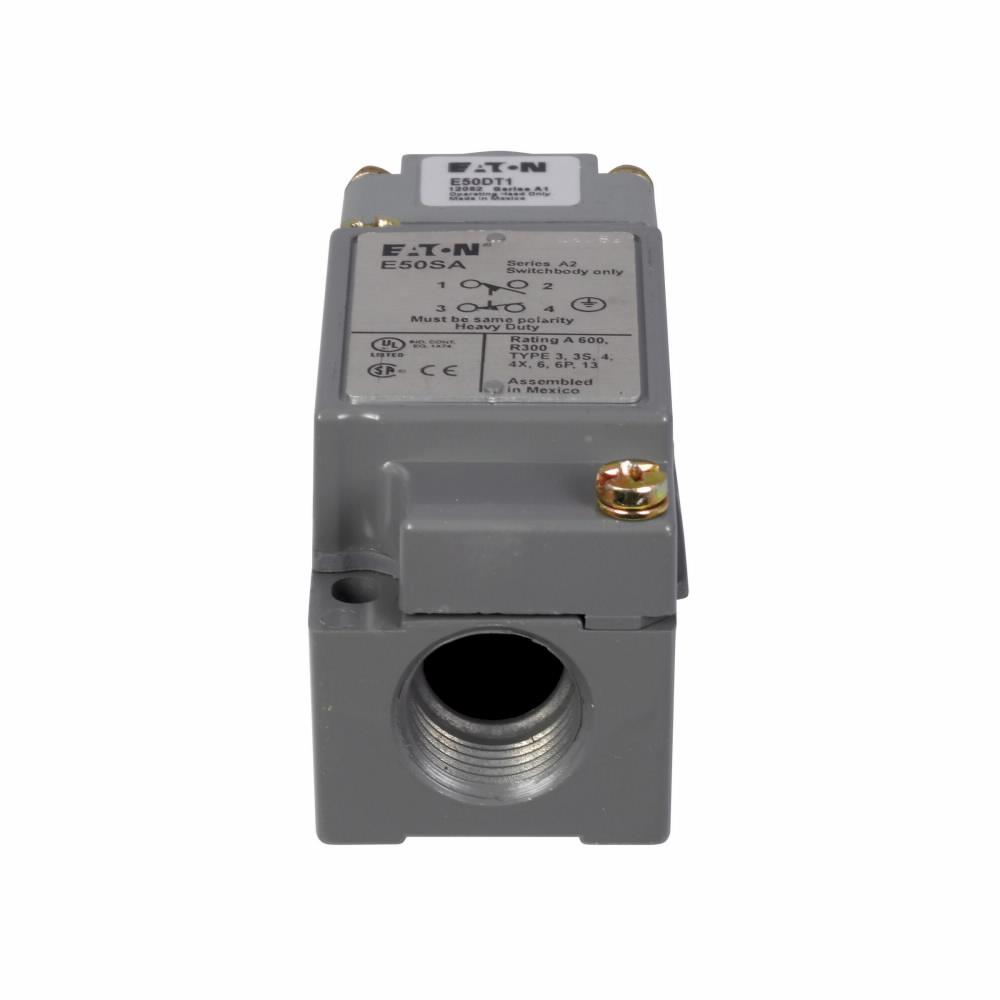

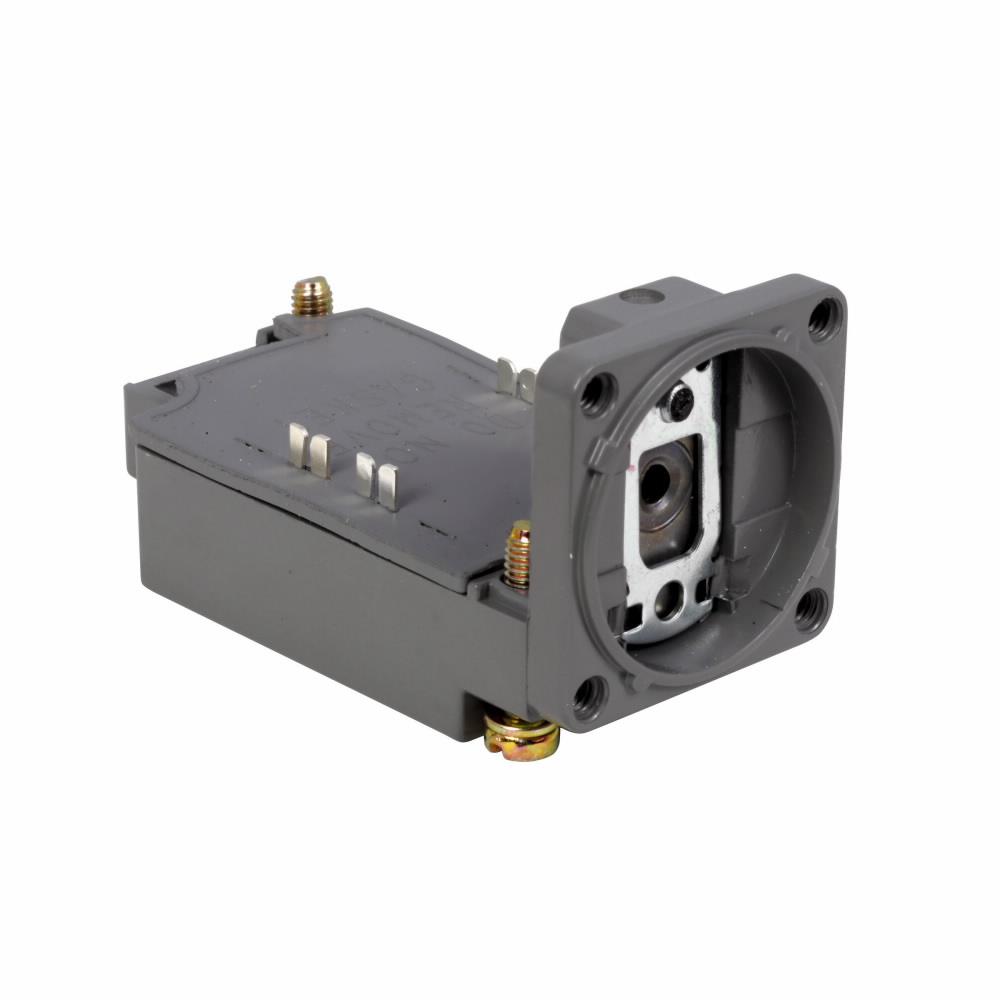

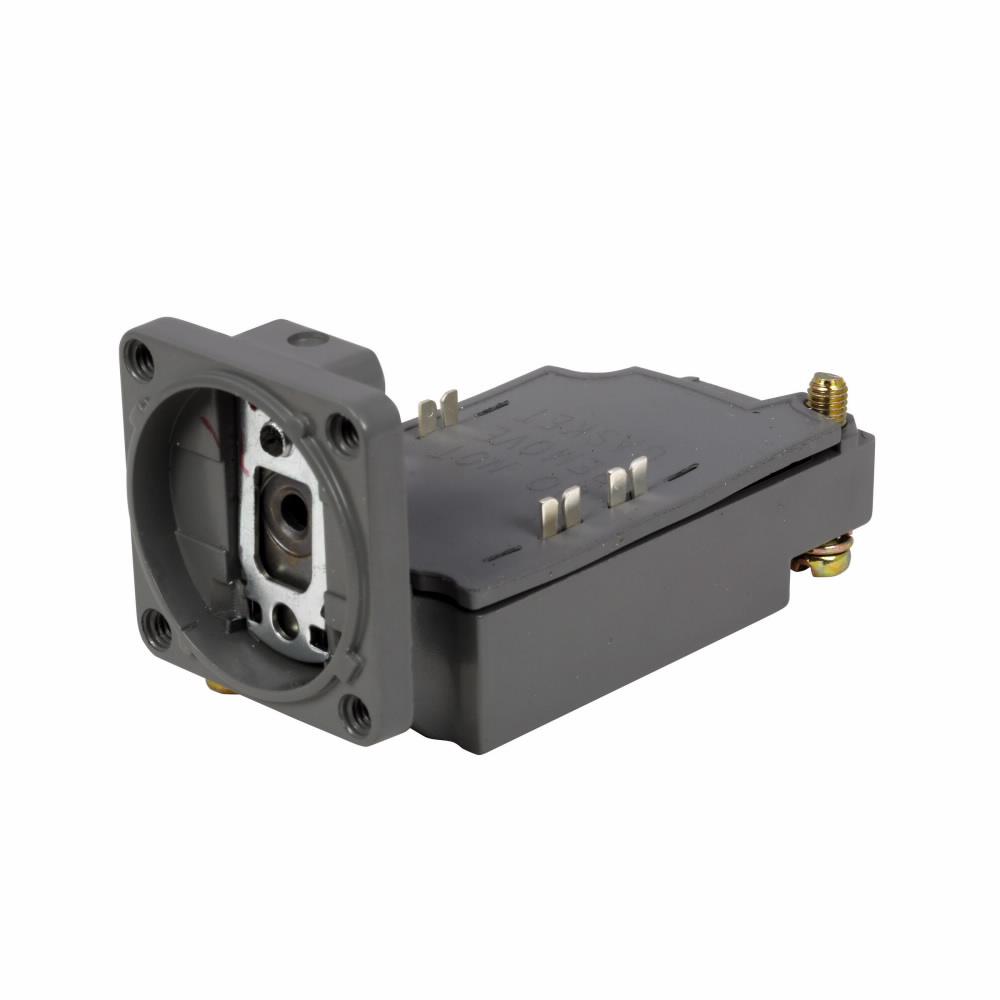

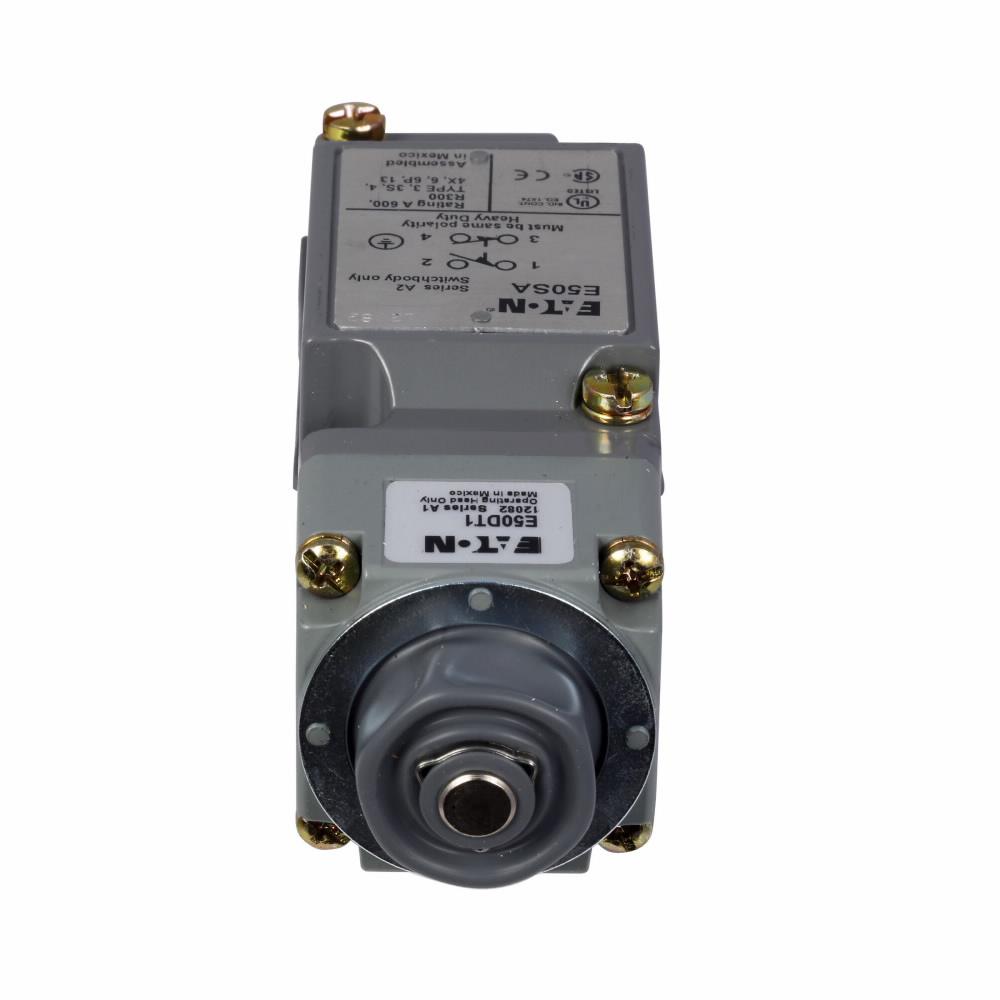

E50SA 1-Pole Heavy Duty Plug-In Limit Switch Body, 1NO-1NC Contact, For Use With E50 Series Heavy Duty Plug-In Limit Switch, 10 A at 12 VAC, 1 A at 125 VDC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Eaton E50 modular plug-in limit switches are the industry'standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die-cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 to 120 VAC/VDC LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Body, 1-Pole Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 12 VAC, 1 A at 125 VDC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, -40 to 250 deg F, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, Die Cast Zinc, 4-1/2 in L x 3-1/4 in W x 1-3/4 in H Dimensions
| Dimensions | : | 4-1/2 in L x 3-1/4 in W x 1-3/4 in H |
| Material | : | Die Cast Zinc |
| Series | : | E50 |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | 1-Pole Heavy Duty Plug-In |
| Contact Configuration | : | 1NO-1NC |
| Suitable For Use With | : | E50 Series Heavy Duty Plug-In Limit Switch |
| Contact Rating | : | 10 A at 12 VAC, 1 A at 125 VDC |
| Enclosure Type | : | NEMA 1/3/3S/4/4X/6/6P/13/IP67 |
