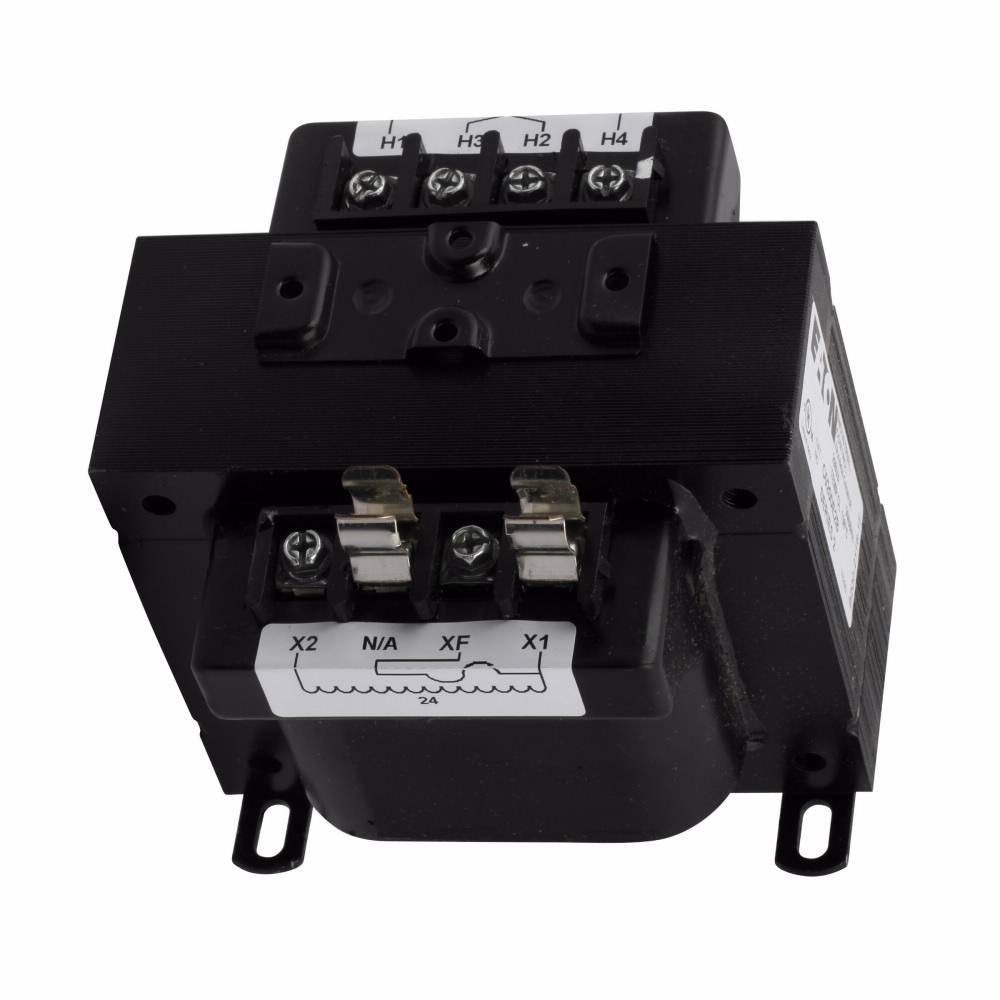

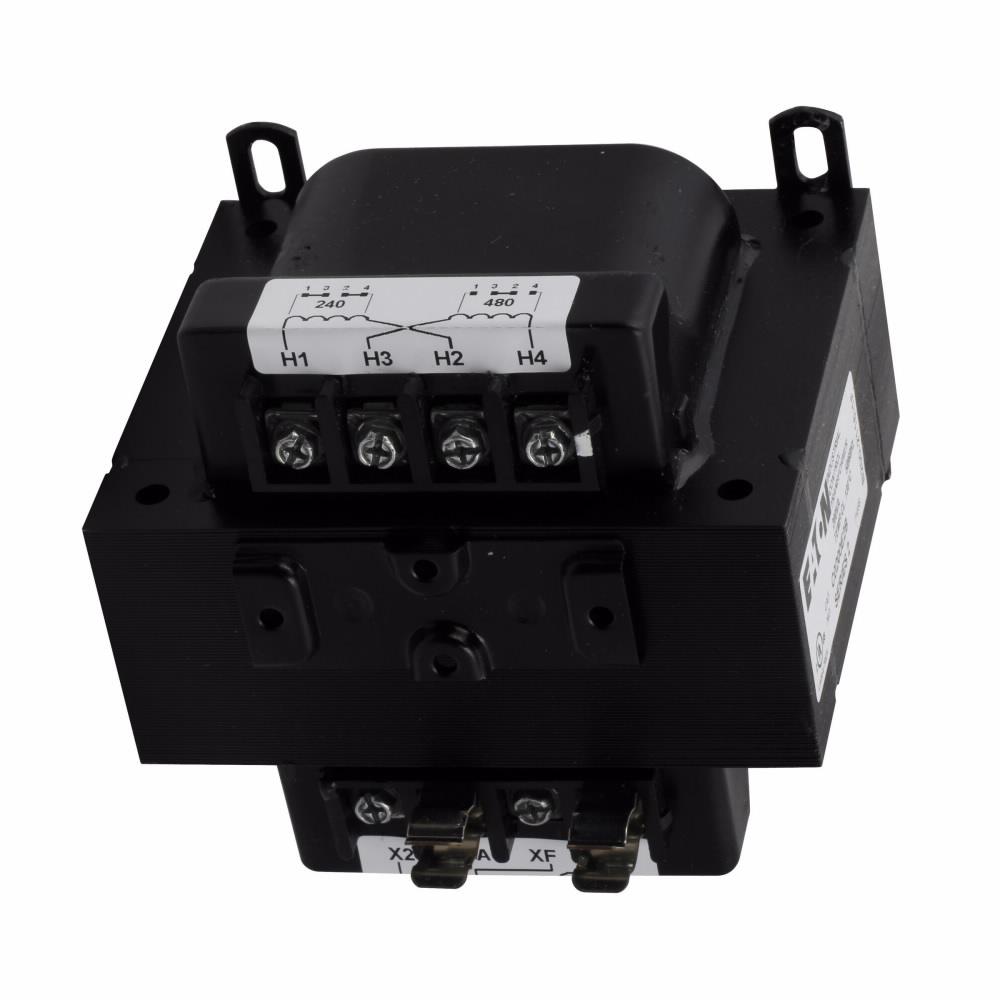

C0200E2A Type MTE Control Transformer, 230 x 460, 240 x 480, 220 x 440 V Primary, 120/115/110 V Secondary, 200 VA Power Rating, 50/60 Hz, 1 ph Phase
| Branch Name | Available |
|---|
Sold as: Pack of EACH
EATON offers a complete line of type AP, MTE and MTK industrial control transformers, which provide stepped down voltages to machine tool control devices. Each unit must pass rigid tests for turns ratio, insulation, continuity and over potential. Performance meets or exceeds ANSI/NEMA ST-1 requirements. With a 50/60 Hz operation standard, transformers are designed for loads requiring extremely good regulation. Regulation also exceeds ANSI/NEMA requirements.
EATON Control Transformer, Type MTE, 230 x 460, 240 x 480, 220 x 440 V Primary, 120/115/110 V Secondary, 200 VA Power, 50/60 Hz Frequency, 1 ph, Copper Magnet Wire Connection, 55 deg C, Silicon Steel Housing Material, 4.016 in L x 4.488 in W x 3.819 in H Dimensions
| Connection Type | : | Copper Magnet Wire |
| Dimensions | : | 4.016 in L x 4.488 in W x 3.819 in H |
| Housing Material | : | Silicon Steel |
| Temperature Rating | : | 55 deg C |
| Type | : | Type MTE |
| Primary Voltage | : | 230 x 460, 240 x 480, 220 x 440 V |
| Secondary Voltage | : | 120/115/110 V |
| Power Rating | : | 200 VA |
| Frequency Rating | : | 50/60 Hz |
| Phase | : | 1 ph |
